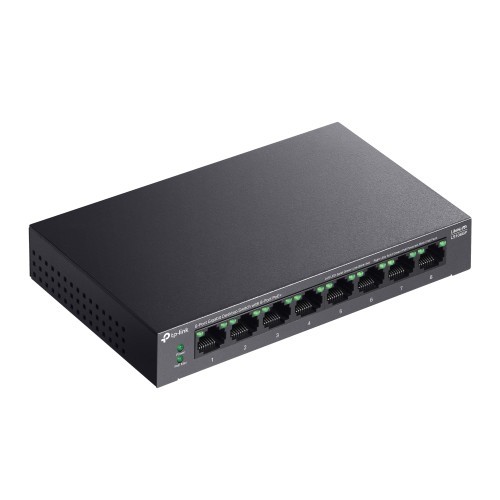

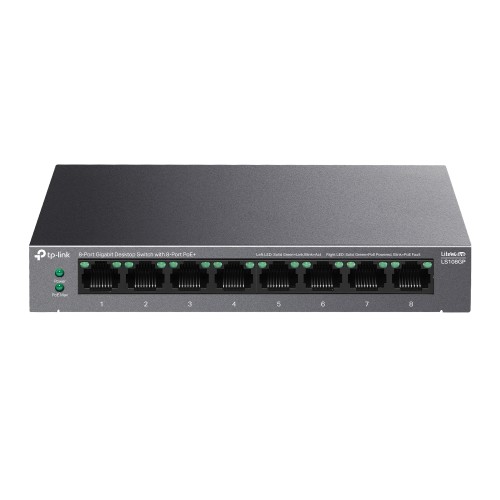

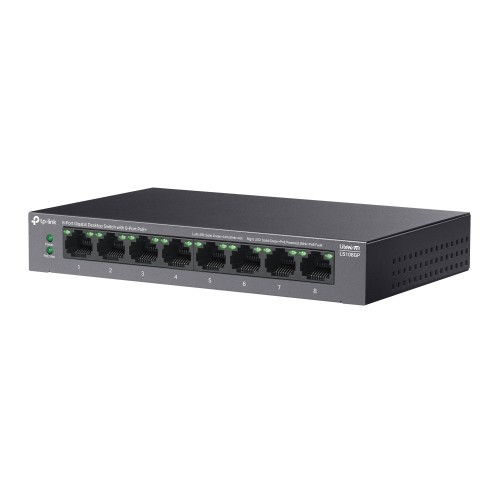

The TP-Link LS108GP is a high-performance 8-Port Gigabit desktop switch designed to deliver both power and data over a single Ethernet cable. Featuring eight Gigabit PoE+ ports with a 62W total PoE budget, it provides a simple and cost-effective solution for connecting and powering devices such as IP cameras, wireless access points, and VoIP phones. With Gigabit connectivity across all ports, the LS108GP offers up to 16Gbps switching capacity , ensuring smooth and reliable network performance for small businesses, offices, retail environments, and surveillance systems.
The switch includes Extend Mode, enabling PoE transmission distances of up to 250 metres, making it ideal for deploying surveillance cameras across large sites. For enhanced reliability, PoE Auto Recovery automatically reboots unresponsive PoE-powered devices, helping maintain continuous operation without manual intervention. Designed for everyday reliability, the LS108GP features a durable metal housing , flexible desktop or wall-mount installation, and a fanless design for completely silent operation. Best of all, plug-and-play functionality means no configuration is required, allowing you to get your network up and running in minutes.
Features
- 8 Gigabit RJ45 ports deliver high-speed network connectivity with up to 16 Gbps switching capacity.
- 62 W PoE power budget across 8 PoE+ ports, supplying both power and data over a single Ethernet cable.
- IEEE 802.3af/at compliant, with up to 30 W PoE output available per port.
- Extend Mode supports PoE transmission distances of up to 250 m, ideal for long-range surveillance deployments.
- PoE Auto Recovery automatically detects and reboots unresponsive PoE-powered devices to maintain network stability.
- Plug-and-play deployment with no software installation or configuration required.
- Fanless design ensures silent operation and improved energy efficiency for noise-sensitive environments.

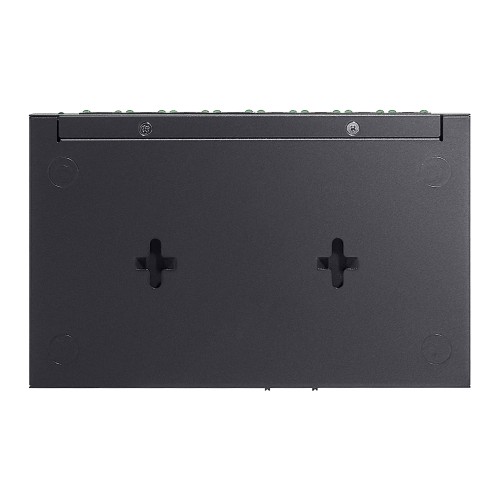

- Durable metal housing with desktop and wall-mounting options for flexible installation.
- Ideal for IP cameras, wireless access points, and VoIP phones in business or surveillance applications.
Kit Contents
- LS108GP
- Power Adapter
- Installation Guide
Manuals & Datasheet
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 8 x 10/100/1000Mbps RJ45 Ports (Ports 1 - 8 supports 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |
| Installation | Desktop Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1 - 8, up to 30 W PoE output per port PoE Budget: 62 W |
| Dimensions (W x D x H) | 6.2 x 3.9 x 1.0in (158 x 99 x 25mm) |
| Max. Power Consumption | 5.53 W (220 V/50 Hz. no PD connected) 71.61 W (220 V/50 Hz. with 62 W PD connected) |
| Max. Heat Dissipation | 18.81 BTU/h (220 V/50 Hz. no PD connected) 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
