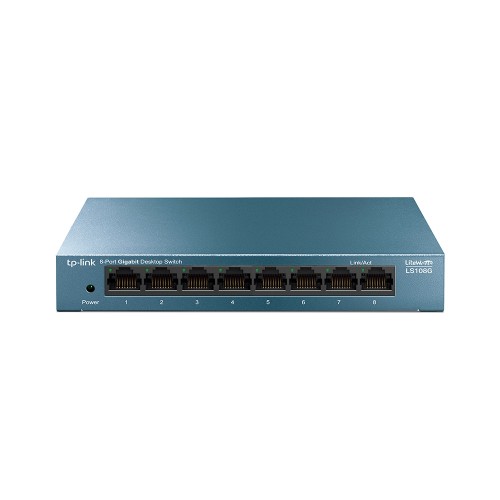

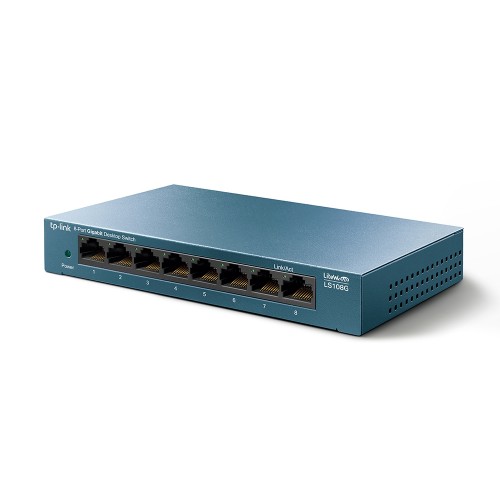

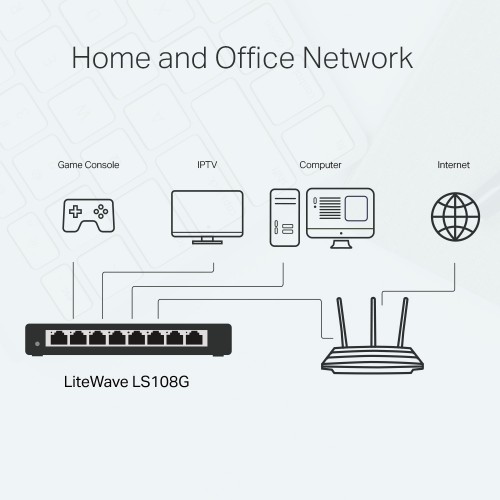

Expand your wired network with the TP-Link LS108G 8-Port Gigabit Desktop Network Switch, a reliable and cost-effective solution for homes, offices, surveillance systems, and small businesses. Featuring eight Gigabit RJ45 ports, the LS108G delivers high-speed wired connectivity for computers, smart TVs, gaming consoles, IP cameras, printers, NAS devices, and other networked equipment.
Its plug-and-play design requires no configuration, allowing you to get your network up and running in seconds. Built with a durable metal housing, the LS108G is designed for long-lasting performance and dependable operation. Green Ethernet technology automatically adjusts power consumption based on link status and cable length to improve energy efficiency, while IEEE 802.3X flow control helps ensure smooth and reliable data transmission. Its compact form factor supports both desktop and wall-mount installation, making it a flexible choice for a wide range of networking environments.
Features
- 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer

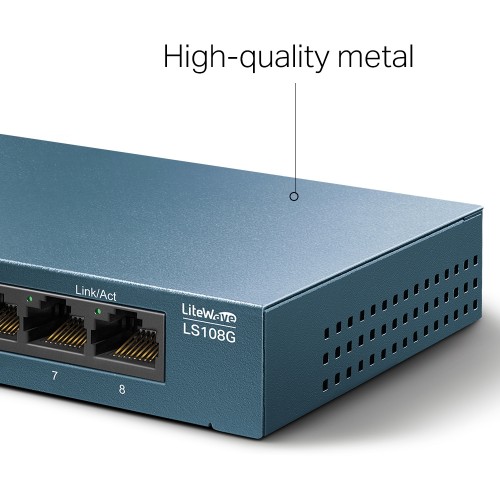

- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
Kit Contents
- LS108G
- Power Adapter
- Installation Manual
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| Power Supply |
|
| LED | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions (W x D x H) | 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) |
| Max. Power Consumption | 3.7W (220V/50Hz) |
| Max. Heat Dissipation | 12.617 Btu/hr |
| PERFORMANCE | |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
