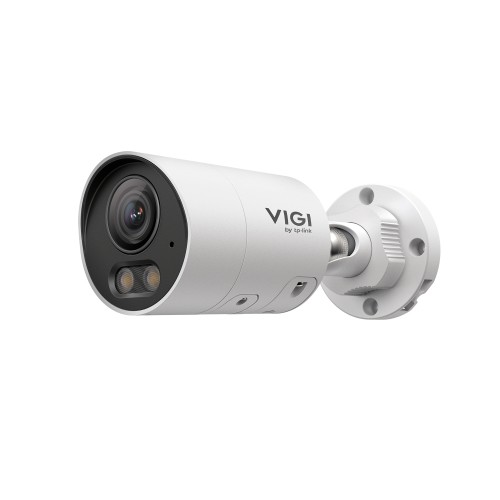

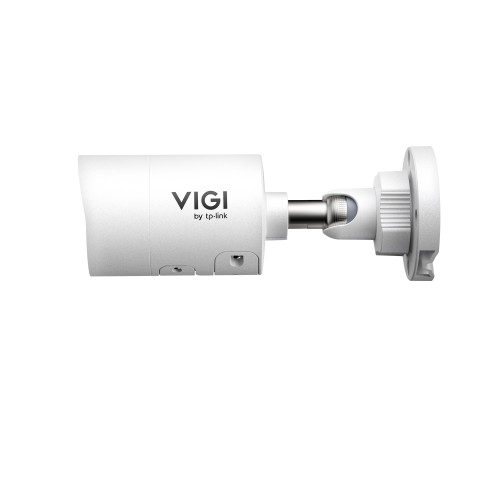

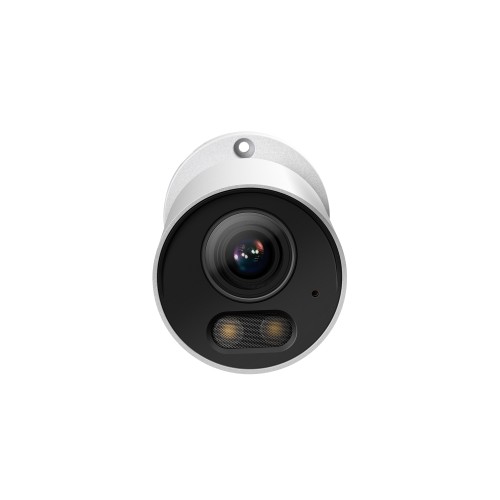

The VIGI InSight S345S is a professional 4MP outdoor bullet network camera engineered to deliver exceptional colour accuracy and image clarity in ultra-low-light environments. Powered by VIGI ColorPro 2.0 technology with an AI-driven image signal processor (AI-ISP), it captures vivid, full-colour footage at night without relying on continuous white-light illumination, helping to reduce energy consumption and minimise light pollution.
Designed for demanding commercial security applications, the InSight S345S combines advanced people and vehicle analytics with intelligent human and vehicle classification to improve event detection accuracy and streamline incident searches. Intelligent IR-white lights automatically switch modes when people or vehicles are detected, providing greater detail and acting as a visual deterrent when required.
Additional features such as two-way audio, alarm input/output integration, Smart Detection functions, H.265+ video compression and an IP67-rated weatherproof housing make the camera ideal for protecting business premises, warehouses, retail sites, industrial facilities and other outdoor environments.
Key Features
- AI-ISP Powered Ultra Low-Light Colour Night Vision
- 4MP Super-High Definition
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Two-Way Audio
- Smart Video Enhancement Technology
- Flexible Alarm In/Out Devices Integration
- IP67 Weatherproof
- H.265+ Compression Technology
Kit Contents
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Manuals & Data
Technical
| CAMERA | |
|---|---|
| Image Sensor | 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4mm |
| Aperture | F1.0 |
| FOV |
|
| Lens Mount | M16 |
| DORI Distance |
|
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| Integrated Infrared-White LED |
|
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream |
|
| Sub-Stream |
|
| Bit Rate Control | CBR, VBR |
| Video Compression |
|
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate |
|
| IMAGE | |
| Image Settings |
|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| SNR | ≥52dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes (Built-in microphone) |
| Audio Output | Yes (Built-in speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | ONVIF (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser |
|
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event |
|
| Basic Event |
|
| Alarm Linkage |
|
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analysis | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In/Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4ft (5m) Radius of the Camera |
| Built-in Speaker | Yes |
| GENERAL | |
| Environment | Operating Temperature: -30 ~ 60°C (-22°F ~ 140°F) Storage Temperature: -40 ~ 60°C (-40°F ~ 140°F) Operating Humidity: 95% or Less (Non-Condensing) Storage Humidity: 95% or Less (Non-Condensing) |
| Package Content |
|
| Material | Metal |
| Net Weight | 0.6Kg |
| Power Supply |
|
| Protection | IP67 |
| Dimensions | Φ2.6 x 7.5in (Φ66 x 191mm) |
| Certification | CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF |
