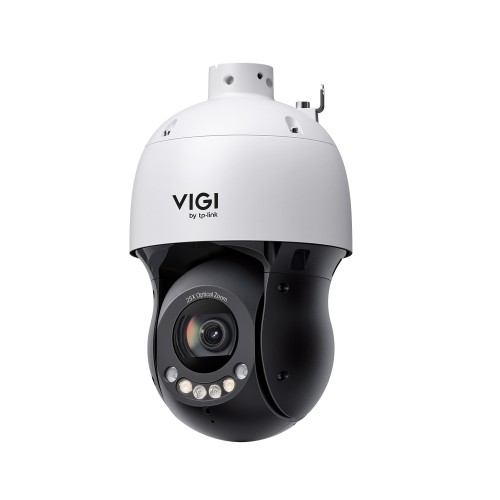

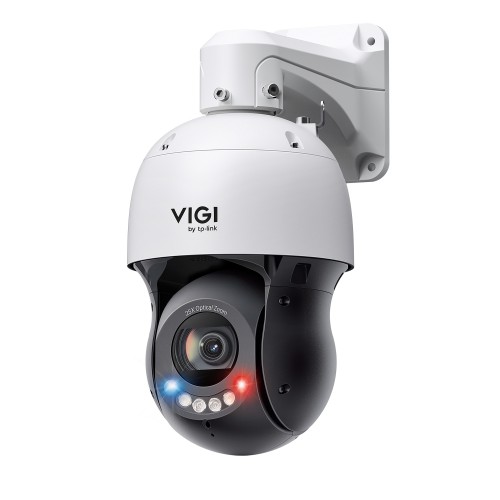

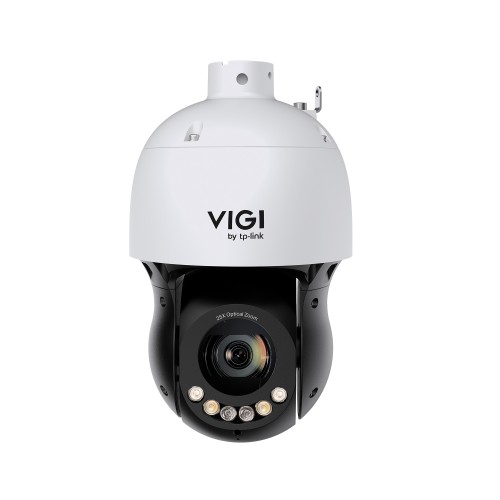

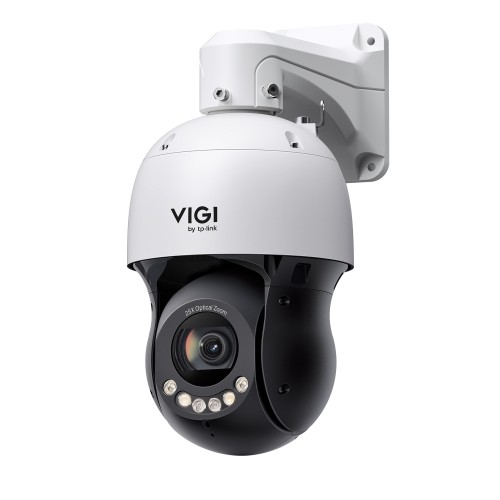

The VIGI InSight PTZ5425 is a professional 4MP network speed dome camera designed to deliver comprehensive coverage across large outdoor environments. Featuring powerful 25× optical zoom, high-speed pan and tilt operation, and intelligent auto-tracking, it can quickly identify, follow and capture critical details over wide areas from a single installation point.
Built for demanding security applications, the PTZ5425 combines full-colour imaging, advanced AI-powered human and vehicle analytics, and active deterrence features including red and blue warning lights and a built-in siren. Its rugged IP66 weatherproof, IK08 vandal-resistant construction, integrated lens heater and digital defog technology ensure reliable performance in challenging weather conditions, making it ideal for car parks, schools, industrial sites, farms and other large-scale surveillance deployments.
Key Features
- 360° Wide-Area Coverage
- 25X Optical Zoom & 16X Digital Zoom
- Intelligent Auto Tracking
- Up to 240°/Sec Pan Speed
- Red & Blue Flashing Lights and Sirens
- People & Vehicle Attributes Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP66 Weatherproof / IK08 Vandal-Proof / 6kV Lightning Protecting
- Digital Defog / Bulit-in Lens Heater
- H.265+ Compression Technology
Kit Contents
- VIGI Network Camera
- Installation Guide
- Waterproof Cable Attachments
- Mounting Accessories
Manuals & Data
Technical
| CAMERA | |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/30000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| LENS | |
| Type | Motorised Varifocal Lens |
| Focal Length | 5.2-130mm (25X Optical Zoom) |
| Aperture | Max. F1.6 |
| FOV |
|
| DORI Distance |
|
| PTZ | |
| Pan/tilt range | Pan: 0° to 360°, Tilt: -20° to 90° (Auto Flip) |
| Pan/tilt speed |
|
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Pattern Scan | 16 Pattern Scans |
| Park Action | Preset, Patrol Scan, Pattern Scan, Home |
| Power Up Actions | Yes |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Present Freezing | Yes |
| Scheduled Task | Preset, Patrol Scan, Pattern Scan |
| PTZ Protocol | Pelco-D, Pelco-P, Self-adaptive |
| ILLUMINATOR | |
| Illuminator Type | 2 x IR LED 2 x Integrated Infrared-White LED |
| Illuminator Distance | IR LED: 100m (328ft) White LED: 50m (164ft) |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream |
|
| Sub-Stream |
|
| Third Stream |
|
| Bit Rate Control | CBR, VBR |
| Video Compression |
|
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | High Profile Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate |
|
| IMAGE | |
| Image Settings |
|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| Defog | Digital Defog |
| Image Stabilisation | EIS |
| SNR | ≥52dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 8 Regions |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone Audio In Interface |
| Audio Output | Built-in Speaker Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64Kbps (G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams & 3 Third-streams |
| Client | VIGI App, Web UI, VIGI Cloud VMS |
| Web Browser |
|
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event |
|
| Basic Event |
|
| Alarm Linkage |
|
| Smart Tracking |
|
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analytics | Search and filter to people or vehicles of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 2 Alarm In, 1 Alarm Out Red and Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| RS-485 Port | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4ft (5m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
| Environment | Operating Temperature: -30 ~ 65°C (-22°F ~ 149°F) Storage Temperature: -40 ~ 65°C (-40°F ~ 149°F) Operating Humidity: 95% or Less (Non-Condensing) Storage Humidity: 95% or Less (Non-Condensing) |
| Package Content |
|
| Material | Metal |
| Net Weight | 2.8kg |
| Power Supply |
|
| Protection | IP66 Weatherproof IK08 Vandal-Proof 6 kV Lightning Protection |
| Dimensions | Φ6.3 10.6in (Φ160 270mm) |
| Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08, ONVIF |
