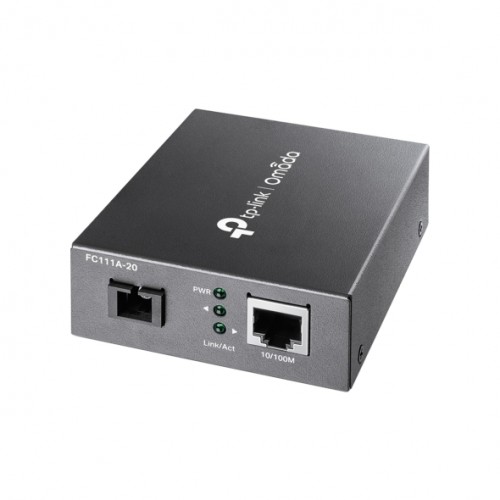

The TP-Link FC111A-20 is a Fast Ethernet media converter designed to extend network connections over single-mode fibre across long distances. Ideal for CCTV systems, remote sites, and building-to-building links, it provides a reliable way to connect copper Ethernet networks to fibre infrastructure.
Working as part of a WDM pair with the matching FC111B-20, the FC111A-20 enables bi-directional data transmission over a single fibre strand, helping to reduce cabling costs while maintaining stable network performance. Its long-range design supports fibre links of up to 20 km, making it well suited to remote deployments.
With a plug-and-play design, the FC111A-20 requires no configuration, allowing for quick and straightforward installation. Compact and durable, it offers a practical and cost-effective solution for extending network reach where traditional Ethernet cabling is not suitable.
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fibre
- Extends fibre distance up to 20km
Kit Contents
- Media Converter TL-FC111A-20
- Power Adapter
- Installation Guide
Manuals & Datasheet
| Network | |
|---|---|
| Standards & Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
| Hardware Features | |
| Interface | 1 x 100 Mbps SC Fibre Port 1 x 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100m) |
| Power Supply | External Power Adapter: 5V / 0.6A |
| LED | PWR, Link/Act |
| Wave Length | 1550nm TX, 1310nm RX |
| Dimensions (W x D x H) | 94.5 x 73 x 27mm |
| Other | |
| Fibre Type | 9/125μm single-mode fibre (≤20 km) |
| Package Content | Media Converter TL-FC111A-20 Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
