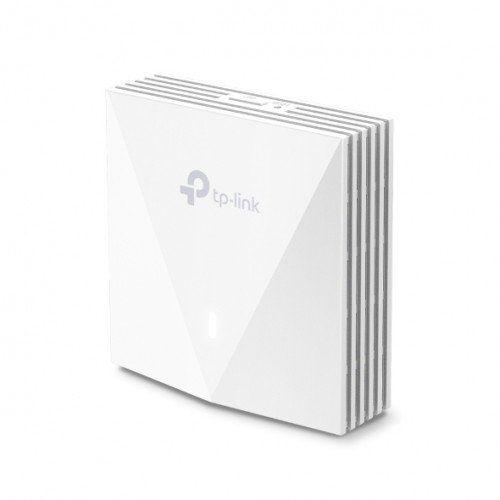

The TP-Link EAP775-Wall is a next-generation Wi-Fi 7 wall-plate access point designed to deliver ultra-fast, reliable wireless connectivity directly to individual rooms. Ideal for hotels, offices, and premium multi-room deployments, it combines top-tier wireless performance with a sleek, discreet wall-mounted design.
Powered by Wi-Fi 7 technology, it offers significantly higher speeds, lower latency, and improved efficiency for device-dense environments. Advanced features such as enhanced channel utilisation and improved multi-device handling ensure smooth and stable connectivity, even under heavy demand.
Built-in Ethernet ports allow additional wired devices such as PCs, IP phones, or smart TVs to be connected directly, reducing the need for separate switches. With Power over Ethernet support, installation is simple using a single cable for both power and data.
Fully integrated with the Omada platform, the EAP775-Wall enables centralised management and monitoring, making it easy to deploy and manage across multiple rooms and sites while delivering future-ready wireless performance.
Features
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)
- 1 x 2.5G PoE input port + 1 x 2.5G pass-through port + 2 x Gigabit RJ45 downlink ports
- 160 MHz bandwidth enables many more simultaneous transmissions
- MLO and Multi-RUs ensure the high performance of your network
- Advanced Functions: Centralised management, Mesh, and Seamless Roaming
Kit Contents
- EAP725-Wall
- Installation Guide
- Mounting Kits
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | Uplink: 1 x 2.5G Ethernet Port Downlink: 1 x 2.5G Ethernet Port + 3 x Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| PoE Out | Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input. |
| Max. Power Consumption | 3.35W (with 25W PoE Out) |
| Dimensions (W x D x H) | 6.8 x 3.6 x 1.6in (172.9 x 91.2 x 41.3mm) |
| Antenna | 6 x Internal Antennas • 2.4 GHz: 2 x 5 dBi • 5 GHz: 2 x 5.5 dBi • 6 GHz: 2 x 5.5 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Kits included) |
| Wireless Features | |
| Coverage | 100㎡(1050ft²) |
| Concurrent Clients | 380+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz and 6GHz |
| Signal Rate | 6 GHz: Up to 5765Mbps 5 GHz: Up to 2882Mbps 2.4 GHz: Up to 688Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power | 6-20dBm (2.4 GHz, ERIP) 6-23dBm (5 GHz, U-NII-1, U-NII-2A, ERIP) 6-27.5dBm (5 GHz, U-NII-2C, ERIP) 6-23dBm (6 GHz,ERIP) |
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes, requires the use of an Omada controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Wed-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes, requires the use of Omada Cloud-Based Controller |
| Other | |
| Certification | FCC, RoHS |
| Package Content | EAP775-Wall Paintable Cover Installation Guide Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
