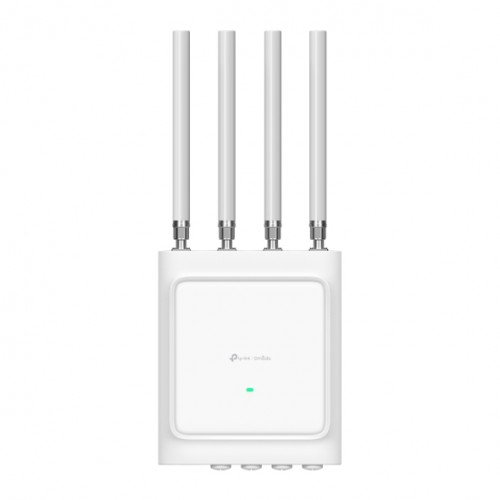

The TP-Link EAP668-Outdoor HD is a high-performance Wi-Fi 6 access point built for reliable, high-capacity wireless coverage in busy outdoor spaces. It's ideal for places like campuses, stadiums, hospitality venues, and public areas where lots of users need stable connections.
With Wi-Fi 6 technology, it delivers faster speeds, lower latency, and better performance when multiple devices are connected. Features like OFDMA and MU-MIMO help keep everything running smoothly, even in crowded environments.
Designed for outdoor use, it features a rugged, weather-resistant build and supports Power over Ethernet for easy installation with a single cable. Fully integrated with the Omada platform, it also enables centralised management and monitoring, making it a solid choice for scalable, managed outdoor Wi-Fi.
Features
- High-Density Connectivity: Supports up to 1,024 devices.
- Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C
- High-gain Detachable Antennas: 4x External N-Type Omni Antennas, 6 dBi Dual-Band (Antennas Included)
- Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz
- Multiple Ports for Flexible Network Solutions: 1x 10G SFP+ slot, 1x 2.5G PoE-In Port, and 1x Gigabit PoE-Out port
- PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output
- Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralised Cloud Management
Kit Contents
- Access Point EAP650 D30-Outdoor
- Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | 1x 2.5G Ethernet Port + 1x Gigabit Ethernet Port + 1x 10G SFP+ |
| Button | Reset |
| Power supply | 802.3at/bt PoE |
| Max. Power Consumption | 802.3bt:
|
| Dimensions ( W x D x H ) | 9.5 x 3.2 x 12.3 in (240 x 80 x 312 mm) (excluding antennas, waterproofing kit, and mounting kit) |
| Antenna | 4x External Dual-Band Omni Antennas
|
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Wall/Pole mounting (kits included), supporting horizontal ±45° adjustment
|
| Wireless Features | |
| Concurrent Clients | 1,000+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralised Management | Omada Hardware Controller Omada Software Controller Omada Cloud-based Controller |
| Cloud Access | Yes. Requires the use of an Omada Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content |
|
| Environment | Operating Temperature: -40 ~ 70 °C (-40 ~ 158 °F) Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F) Operating Humidity: 10 ~ 90% non-condensing Storage Humidity: 5 ~ 90% non-condensing |
