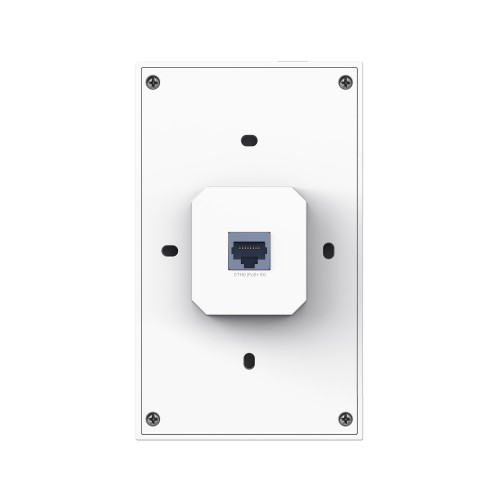

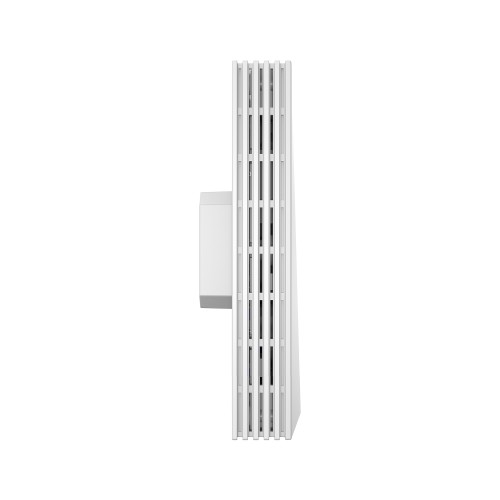

The TP-Link EAP655-Wall is a high-performance Wi-Fi 6 wall-plate access point designed to deliver fast, reliable wireless coverage directly to individual rooms. Ideal for hotels, offices, and multi-room deployments, it provides strong connectivity in a compact, discreet wall-mounted design.
Powered by Wi-Fi 6, it offers faster speeds, lower latency, and improved performance when multiple devices are connected. Built-in Ethernet ports allow additional wired devices such as PCs, IP phones, or smart TVs to be connected easily, reducing the need for extra networking equipment.
With Power over Ethernet support, installation is simple using a single cable for both power and data. Fully integrated with the Omada platform, the EAP655-Wall enables centralised management and monitoring, making it easy to deploy and manage across multiple rooms and sites.
Features
- Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
- Gigabit Port: Connect wired devices with one downlink gigabit port.
- Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86mm & EU standard junction box, and 802.3af/at PoE support.
Kit Contents
- AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
- Installation Guide
- Mounting Kits
Technical
| Hardware Features | |
|---|---|
| Interface | Uplink: 1 x Gigabit Ethernet Port Downlink: 3 x Gigabit Ethernet Ports (One port supports PoE out. The PoE out feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 10.5 W (EU version) or 10 W (US version), based on laboratory testing.) |
| Physical Security Lock | No |
| Button | Reset LED |
| Power Supply | 802.3af/at PoE |
| Max. Power Consumption | EU: 12W (802.3at PoE, PoE Out off) US: 12.6W (802.3at PoE, PoE Out off) |
| Dimensions (W x D x H) | 143 x 86 x 42.6mm (5.6 x 3.4 x 1.7in) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2 x 3dBi 5GHz: 2 x 5dBi |
| Mounting | Wall Plate Mounting (Kits included) |
| Wireless Features | |
| Concurrent Clients | 120+ |
| Coverage | 50㎡(600ft²) |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 5 GHz: Up to 2402Mbps 2.4 GHz: Up to 574Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300, OC200) Omada Software Controller |
| Cloud Access | Yes, requires the use of an Omada controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local / Remote Syslog |
| SSH | Yes |
| Wed-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes, requires the use of Omada Cloud-Based Controller |
| Other | |
| Certification | FCC, RoHS |
| Package Content | AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
