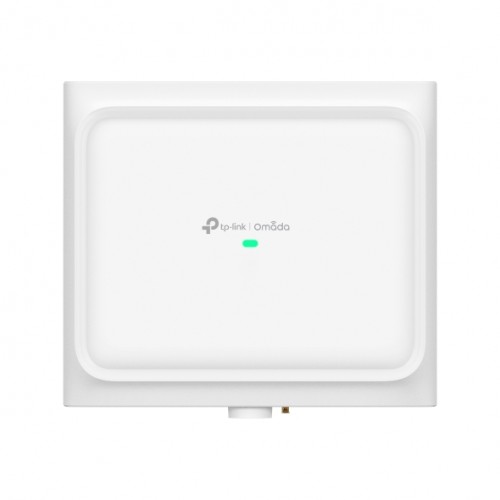

The TP-Link EAP650 D30-Outdoor is a compact Wi-Fi 6 access point designed to provide reliable wireless coverage in outdoor environments. Ideal for areas like patios, small outdoor venues, and building exteriors, it delivers consistent performance without overcomplicating deployment.
With Wi-Fi 6 technology, it offers faster speeds, lower latency, and better handling of multiple connected devices. Features like OFDMA and MU-MIMO help keep connections stable, even in busy settings.
Built for outdoor use, it features a weather-resistant design and supports Power over Ethernet, allowing for simple installation with a single cable. Integrated with the Omada platform, it also enables centralised management and monitoring, making it a practical choice for straightforward outdoor Wi-Fi coverage.
Features
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
- Ideal for Warehouses and Outdoor ScenesFeatures an IP68 waterproof enclosure with -30°C to +70°operating range
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology
- Centralised Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI
Kit Contents
- Access Point EAP650 D30-Outdoor
- Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | 1x Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power supply | 802.3at PoE 48V Passive PoE |
| Max. Power Consumption | EU: 12.5W (802.3at PoE or Passive PoE) US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | 8.2 x 2.3 x 9.1 in (207.5 x 58 x 230 mm) |
| Antenna | Built-in Directional Antennas:
|
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Wall/Pole/Ceiling Mount |
| Wireless Features | |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralised Management | Omada Hardware Controller Omada Software Controller Omada Cloud-based Controller |
| Cloud Access | Yes. Requires the use of an Omada Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30 ~ 70 °C (-22 ~ 158 °F) Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F) Operating Humidity: 10 ~ 90% RH non-condensing Storage Humidity: 5 ~ 90% RH non-condensing |
