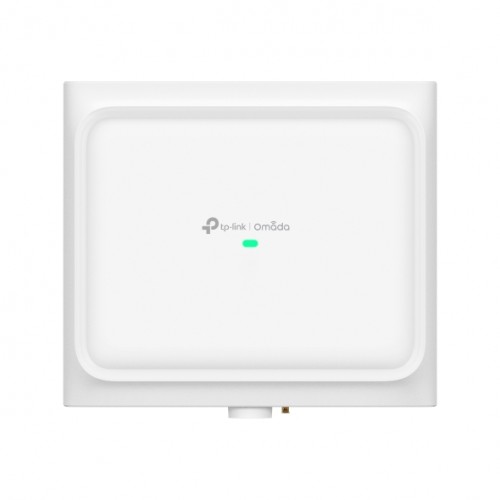

The TP-Link EAP650 D120-Outdoor is a Wi-Fi 6 access point designed for reliable, targeted wireless coverage in outdoor environments. Its directional antenna focuses the signal where it's needed most, making it ideal for areas like walkways, building exteriors, and long outdoor spaces.
With Wi-Fi 6 technology, it delivers faster speeds, lower latency, and better performance when multiple devices are connected. Features like OFDMA and MU-MIMO help keep connections stable, even in busy environments.
Built for outdoor use, it features a rugged, weather-resistant design and supports Power over Ethernet for simple installation using a single cable.
Integrated with the Omada platform, it also offers centralised management and monitoring, making it a practical choice for reliable, managed outdoor Wi-Fi coverage.
Features
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70 C operating range
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology
- Centralised Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI
Kit Contents
- Access Point EAP650 D120-Outdoor
- Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | 1x Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power supply | 802.3at PoE 48V Passive PoE |
| Max. Power Consumption | EU: 12.5W (802.3at PoE or Passive PoE) US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | 8.2 x 2.3 x 9.1 in (207.5 x 58 x 230 mm) |
| Antenna | Built-in Directional Antennas:
|
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately |
| Wireless Features | |
| Coverage | 2.4 GHz: 200+ m 5 GHz: 500+ m |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralised Management | Omada Hardware Controller Omada Software Controller Omada Cloud-based Controller Omada APP |
| Cloud Access | Yes. Requires the use of an Omada Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based management | Yes |
| Multi-site management | Yes |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Other | |
| Package Content |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30 ~ 70 °C (-22 ~ 158 °F) Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F) Operating Humidity: 10 ~ 90% RH non-condensing Storage Humidity: 5 ~ 90% RH non-condensing |
