The TP-Link EAP615-Wall is a compact Wi-Fi 6 wall-plate access point designed to deliver fast, reliable in-room wireless coverage. Ideal for hotels, offices, student accommodation, and apartments, it provides dedicated connectivity while blending neatly into existing wall installations.
Powered by Wi-Fi 6 technology, it offers improved speed, lower latency, and better performance when multiple devices are connected. Built-in Ethernet ports allow additional wired devices such as PCs, IP phones, or smart TVs to be connected directly, removing the need for extra switches.
With Power over Ethernet support, installation is simple using a single cable for both power and data. Fully integrated with the Omada platform, the EAP615-Wall enables centralised management and monitoring, making it easy to deploy and manage across multiple rooms and sites.
Features
- Dual-Band Wi-Fi 6: 1,201 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz

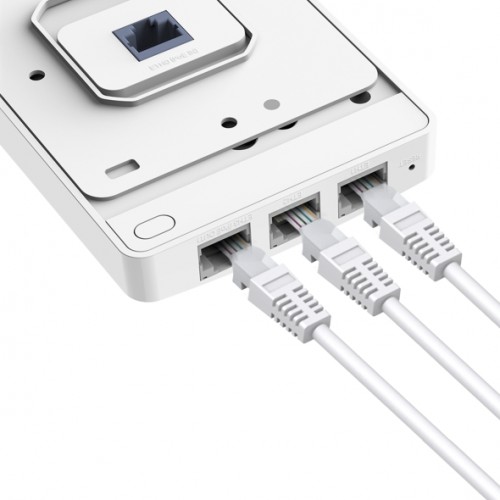

- Gigabit Ports with PoE Flexibility: 1 x PoE Input port, 1 x PoE pass-through port, and 2x RJ45 downlink ports.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.
- Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 600ft² (50 ㎡).
- Flexible Deployment and Easy Setup: Supports 802.3af/at PoE for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralised cloud management, mesh, and seamless roaming.
- More Connections: Supports up to 120+ concurrent connections
Kit Contents
- EAP615-Wall
- Installation Guide
- Mounting Kit
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | Uplink: 1 x Gigabit Ethernet Port Downlink: 3 x Gigabit Ethernet Ports (One port supports PoE pass-through.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| PoE Out | Passthrough (Pins 1,2+; 3,6-) The PoE pass-through feature requires 802.3at PoE input. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing. |
| Max. Power Consumption | EU: 10W (802.3at PoE, PoE Out off) US: 11.5W (802.3at PoE, PoE Out off) |
| Dimensions (W x D x H) | 5.6 x 3.4 x 0.8in (143 x 86 x 19.7mm) |
| Antenna | 2.4 GHz: 2 x 3dBi 5 GHz: 2 x 4dBi |

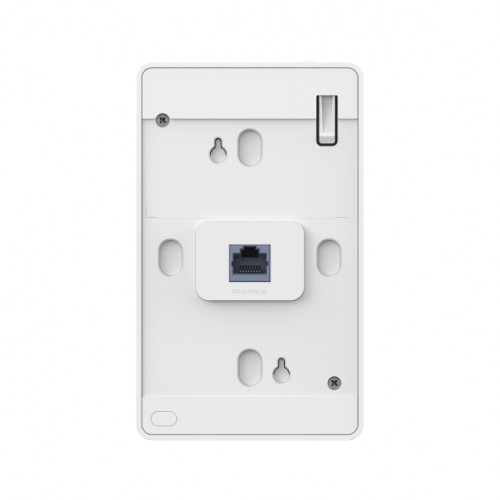

| Mounting | Wall Plate Mounting |
| Wireless Features | |
| Concurrent Clients | 120+ |
| Coverage | 600 ft² (50㎡) |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes, requires the use of an Omada controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Wed-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes, requires the use of Omada Cloud-Based Controller |
| Other | |
| Certification | FCC, CE, RoHS |
| Package Content | EAP615-Wall Installation Guide Mounting Kit |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
