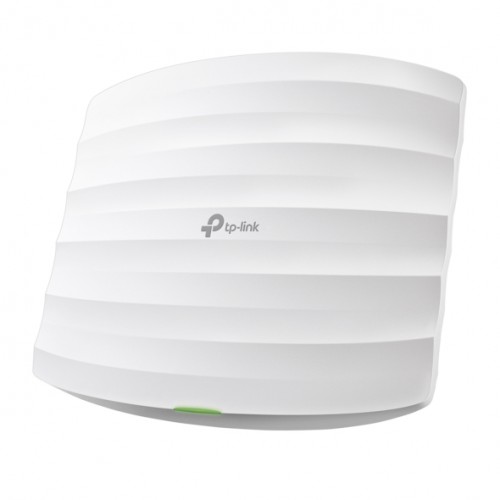

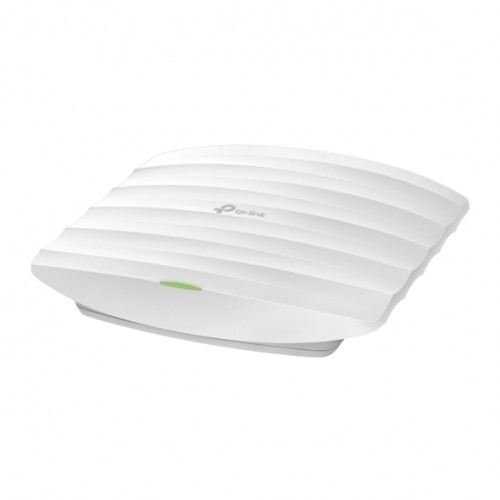

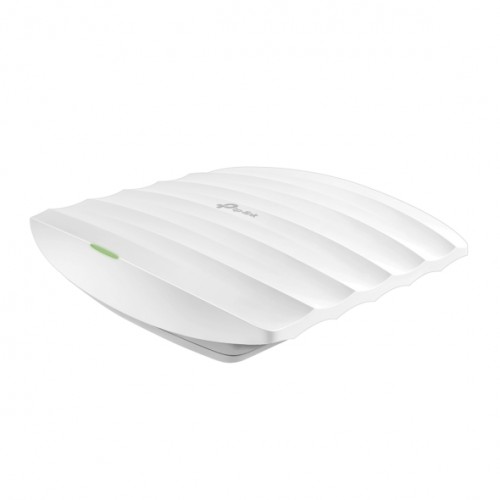

The TP-Link EAP265 HD is a high-density dual-band access point designed to deliver reliable wireless performance in environments with a high number of connected devices. It's ideal for offices, schools, hotels, and other busy indoor spaces where stable connectivity is essential.
Using Wi-Fi 5 (AC1750), it provides fast, balanced performance across 2.4 GHz and 5 GHz frequencies, while features like MU-MIMO help maintain smooth connections for multiple users at the same time.
Its ceiling-mount design ensures efficient coverage across larger indoor areas, and Power over Ethernet support allows for simple installation with a single cable. Fully integrated with the Omada platform, the EAP265 HD enables centralised management and monitoring, making it easy to scale and control across multiple locations.
Features
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Kit Contents
- AC1750 Wireless MU-MIMO Gigabit Ceiling Mount
- Access Point EAP265 HD
- Gigabit Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|

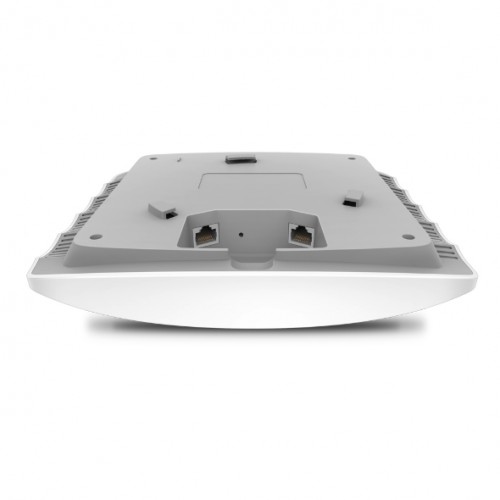

| Interface | 2 x Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | 12.3W |
| Dimensions (W x D x H) | 8.1 x 7.1 x 1.5in (205.5 x 181.5 x 37.1mm) |
| Antenna | Internal Omni 2.4 GHz: 3 x 3.5dBi 5 GHz: 3 x 4dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Wireless Features | |
| Coverage | 140m2 (1500ft2) |
| Concurrent Clients | 640+ |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5 GHz: Up to 1300Mbps 2.4 GHz: Up to 450Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Hardware Controller (OC300/OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes, requires the use of an Omada controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Wed-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
