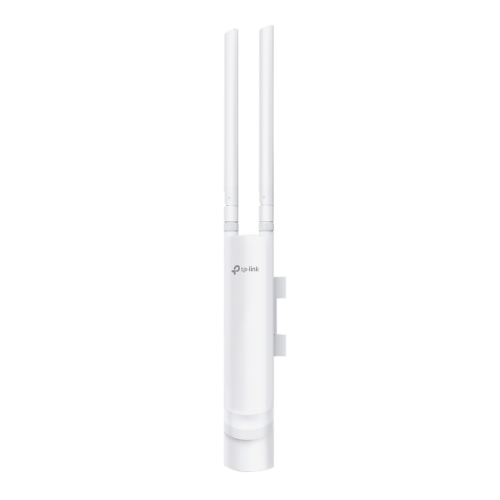

The TP-Link EAP225-Outdoor is a business-class outdoor access point designed to deliver reliable dual-band Wi-Fi coverage in external environments. Ideal for cafés, gardens, campuses, warehouses, and outdoor business spaces, it provides stable connectivity beyond the limits of indoor wireless networks.
Operating on dual-band Wi-Fi 5 (802.11ac), the EAP225-Outdoor delivers balanced performance across 2.4 GHz and 5 GHz frequencies, ensuring smooth connectivity for multiple users and everyday business applications. Its optimised antenna design and high transmission power help extend coverage across wide outdoor areas while maintaining consistent signal quality.
Built with a durable, weatherproof enclosure, the EAP225-Outdoor is designed to withstand harsh environmental conditions, making it suitable for permanent outdoor installations. Power over Ethernet support allows both power and data to be delivered via a single cable, simplifying deployment and reducing installation complexity.
Fully compatible with the Omada SDN platform, the EAP225-Outdoor supports centralised management, cloud access, and real-time monitoring from a single interface. With seamless roaming, enterprise-grade security, and flexible mounting options, it provides a practical and scalable solution for extending managed Wi-Fi coverage into outdoor environments.
Features
- Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds.
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Omada Mesh Technology: Enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
Kit Contents
- Access Point EAP225-Outdoor
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
- Waterproof Rubber Insert
- Waterproof Antenna
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|

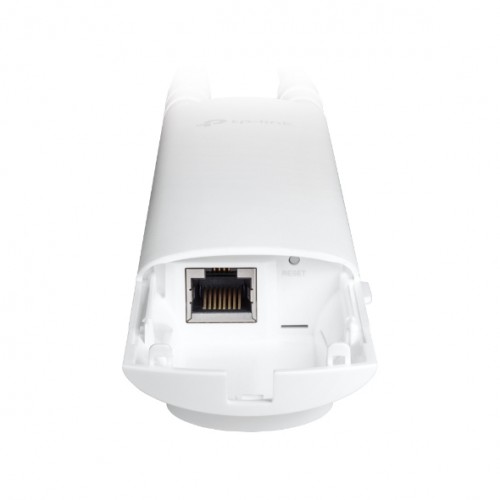

| Interface | 1 x Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3af PoE 24V Passive PoE (+4, 5pins; -7, 8pins. PoE Adapter included) |
| Max. Power Consumption | 10.5 W |
| Dimensions (W x D x H) | 1.8 x 1.1 x 8.5in (46 x 26.7 x 214.9mm) (without antenna & mounting kit) |
| Antenna | 2 Dual-Band Omni Antennas (External Detachable) 2.4Ghz: 2 x 3dBi 5GHz: 2 x 5dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall Mounting (Kits included) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 6.5Mbps to 867Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) 802.11n: 6.5Mbps to 300Mbps (MCS0-MCS15, HT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming (802.11k/v/r) Omada Mesh Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | CE: <20dBm (2.4GHz, EIRP), <27dBm (5GHz, EIRP) FCC: <23dBm (2.4GHz), <22dBm (5GHz) |
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requires the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requires the use of an Omada Cloud-Based Controller. |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content | Access Point EAP225-Outdoor Passive PoE Adapter Power Cord Mounting Kits Installation Guide Waterproof Rubber Insert Waterproof Antenna |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment | Operating Temperature: -30°C ~ 70°C (-22°F ~ 158°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
