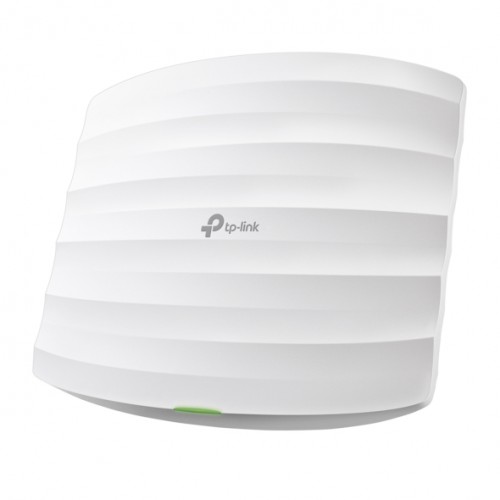

The TP-Link EAP225 is a reliable dual-band access point designed to deliver fast and stable wireless connectivity for small to medium business environments. Ideal for offices, retail spaces, and hospitality, it provides consistent coverage and performance for everyday business use.
Operating with dual-band Wi-Fi 5 (AC1200), it offers balanced performance across 2.4 GHz and 5 GHz, helping ensure smooth connectivity for multiple devices. Its ceiling-mount design allows for optimal coverage while blending neatly into indoor environments.
With Power over Ethernet support, installation is simple using a single cable for both power and data. Fully integrated with the Omada platform, the EAP225 supports centralised management, making it easy to configure and monitor multiple access points across a network.
Features
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) Centralised Cloud Management, and Intelligent Monitoring
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter included) for flexible installations
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies
- Advanced Wireless Tech: Optimise network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies
Kit Contents
- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
- Passive PoE adapter
- Power Cord
- Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | Gigabit Ethernet (RJ-45) Port x 1 (Support IEEE802.3af PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3af PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | 12.6W |
| Dimensions (W x D x H) | 8.1 x 7.1 x 1.5 in (205.5 x 181.5 x 37.1 mm) |
| Antenna | 3 Internal Omni 2.4 GHz: 4dBi 5 GHz: 5dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5 GHz: Up to 867Mbps 2.4 GHz: Up to 450Mbps |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes, requires the use of an Omada controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Wed-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes, requires the use of an Omada Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
