The TP-Link EAP211-Bridge KIT is a high-performance 5 GHz wireless bridge solution designed to deliver fast, reliable connectivity across long distances. Built on Wi-Fi 5 (802.11ac) technology, it supports wireless speeds of up to 867 Mbps, making it well suited for bandwidth-intensive applications such as IP surveillance and network extension between buildings.
Engineered for outdoor and indoor deployment, the kit enables point-to-point (PtP) and point-to-multipoint (PtMP) connections over distances of up to 1 km in typical scenarios. Its preconfigured, plug-and-play design with automatic pairing simplifies installation, allowing users to establish links quickly without complex setup procedures.
The EAP211-Bridge KIT also offers strong flexibility and scalability. With three Gigabit Ethernet ports per unit, it can support multiple devices such as IP cameras without requiring additional switches. Integration with TP-Link's Omada SDN platform enables centralised management, remote monitoring, and streamlined network control through a single interface.
Designed for durability, the unit features an IP65-rated weatherproof enclosure and lightning protection, ensuring consistent performance even in challenging environmental conditions. Combined with versatile power options, including PoE and DC input, it provides a robust and adaptable solution for extending networks in outdoor or remote locations.
Features
- Up to 0.62 mi (1 km) Transmission Distance
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go-ideal for quick deployments.
- Unique Design for Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing. Simply dial the role switch and press the pair button—no portal login needed. Supports up to 1-to-4 multi-bridge connections.
- App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.
- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)

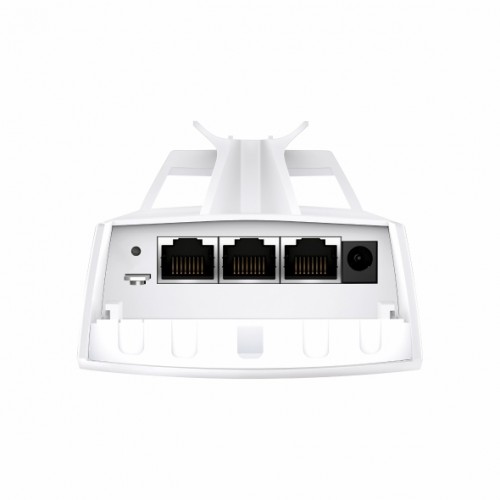

- 3x Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch
- Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralised management via Web UI or App
Kit Contents
- EAP211-Bridge KIT
- Installation Guide
- Mounting Kit
- Passive PoE Adapter
Manuals & Datasheet
Technical
| Category | Specification |
|---|---|
| Hardware Features |
|
| Wireless Features |
|
| Management Features |
|
| Other |
|
