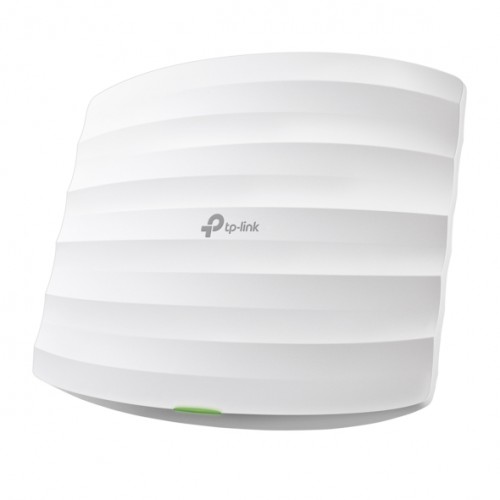

The TP-Link EAP115 is a compact access point designed to deliver reliable wireless connectivity for small business and home office environments. It's ideal for basic deployments where stable Wi-Fi is needed for everyday tasks such as browsing, email, and light streaming.
Operating on the 2.4 GHz band, it provides consistent coverage with a focus on stability and range, making it well suited to smaller spaces and simple network setups.
With Power over Ethernet support, installation is quick and easy using a single cable for both power and data. Integrated with the Omada platform, the EAP115 also supports centralised management, allowing multiple access points to be configured and monitored from one interface.
Features
- Cloud centralised management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management vlan for an enhanced network management
Kit Contents
- 300Mbps Wireless N Ceiling Mount Access Point EAP115
- Power Adapter
- Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | Fast Ethernet (RJ-45) Port x 1 (Support IEEE802.3af PoE) |
| Button | Reset |
| Power Supply | 802.3af PoE or external 9VDC/0.6A power supply |
| Max. Power Consumption | 2.8W |
| Dimensions (W x D x H) | 7.5 x 6.7 x 1.2in (189.5 x 170.5 x 29.7mm) |
| Antenna | Internal 2 x 3dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Wireless Features | |
| Coverage | 60m2 (650ft2) |
| Concurrent Clients | 100+ |
| Wireless Standards | EEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) |
| Reception Sensitivity |
|
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power |
|
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes, requires the use of an Omada controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Wed-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
