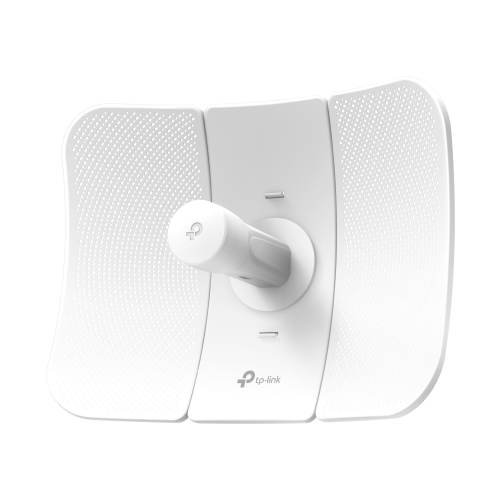

The TP-Link CPE710 is a high-performance outdoor wireless bridge engineered for long-range point-to-point and point-to-multipoint connectivity. Designed for demanding outdoor deployments, it provides a reliable solution for linking buildings, extending networks across large areas, and supporting surveillance or ISP infrastructure.
Operating on the 5 GHz band, the CPE710 delivers stable, high-speed wireless transmission with reduced interference. Its integrated high-gain directional antenna and advanced wireless optimisation enable strong, focused signal delivery over extended distances, ensuring consistent performance in outdoor environments.
Built with a durable, weather-resistant enclosure, the CPE710 is designed to withstand harsh conditions while maintaining reliable operation. Centralised management via TP-Link's Pharos Control platform allows for efficient configuration, monitoring, and optimisation across multiple devices and sites.
The CPE710 is a practical and cost-effective choice for businesses and network installers that need dependable long-distance wireless connectivity with straightforward deployment and management.
Features
- 23dBi high-gain directional 2x2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
Kit Contents
- Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Kits
- AC Power Cord
- Installation Guide
Technical
| Category | Specification |
|---|
| Hardware Features | - Processor: Qualcomm 750MHz CPU, MIPS 74Kc
- Memory: 128 MB DDR2 RAM, 16 MB Flash
- Interface:
- 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE)
- 1 Reset Button
- Power Supply:
- Passive Power over Ethernet via LAN (+4,5pins; -7,8pans)
- Voltage range: 16-27V DC
- Dimensions (W x D x H): 366 x 280 x 207mm (14.4 x 11.0 x 8.1in)
- Antenna Gain: 23dBi
- Antenna Beamwidth: 9° (Azimuth) / 7° (Elevation)
- Protection:
- 15KV ESD Protection
- 6 KV Lightning Protection
- Enclosure:
- Material: Outdoor PC stabilised plastic
- Weatherproof: IP65 water and dust proof design
|
| Wireless Features | - Wireless Standards: IEEE 802.11a/n/ac
- Wireless Speeds:
- Up to 867 Mbps (80 MHz, Dynamic)
- Up to 400 Mbps (40 MHz, Dynamic)
- Up to 173.4 Mbps (20 MHz, Dynamic)
- Frequency: 5.15-5.85 GHz
- Transmission Power: Max. 27dBm (Adjustable power by 1dBm)
|
| Software Features | - Network Configuration:
- WAN: Static/Dynamic/PPPoE
- LAN: Static/Dynamic/DHCP
- Forwarding: ALG/UPnP/Virtual Server/Port Trigger
- Security: SPI Firewall/Ping Forbidden/DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
- Wireless Configurations:
- Selectable Channel Width: 20/40/80MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging (AP Mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
- Long Range PtP
- Management Features:
- Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System Log
- SNMP Agent (v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
- System Tools:
- Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyser
- Speed Test
- Ping
- Traceroute
- Antenna Alignment
- System-Level Operations: Optimised IGMP Snooping / Proxy for multicast applications
|
| PoE Adapter Features | - Dimensions (W x D x H): 85.8 x 43.9 x 29.7 mm
- Interfaces
- 1 AC Jack with Earth Ground
- 1 x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
- 1 x 10/100/1000 Mbps Shielded Ethernet Port (Data)
- Button: Remote Reset Button
- Power Status LEDs: Green
- Input: 100-240VAC, 50/60Hz
- Output:
- 24VDC, 0.6A Max
- +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet
- Efficiency: >84.29%
- Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
|
| Other | - Certification: CE,FFC,RoHS,IP65,IC
- Package Content:
- Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Kits
- AC Power Cord
- Installation Guide
- System Requirements:
- Microsoft Windows 98SE, NT, 2000, XP, VistaTM or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux
- Note: We recommend one of the following web browsers for an improved user experience: Google Chrome, Safari and Firefox. IE browsers are not recommended.
- Environment
- Operating Temperature: -40°C~70°C (-40°F~158°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
|
