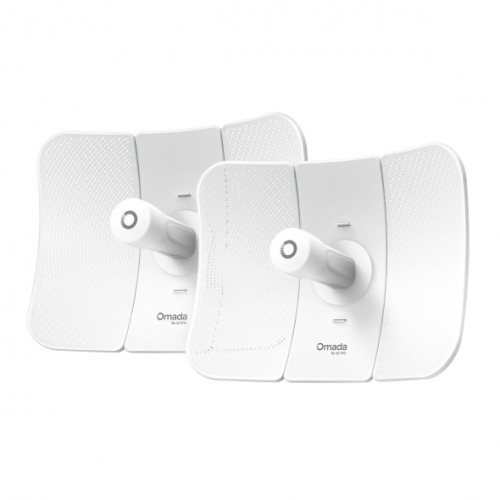

The TP-Link Beam Bridge 5 UR KIT is an enterprise-grade 5 GHz wireless bridge engineered for ultra-long-range connectivity in demanding environments. Built on Wi-Fi 5 (802.11ac) technology, it delivers speeds of up to 867 Mbps, making it well suited for high-bandwidth applications such as surveillance, data transfer, and network backhaul.
Designed for extreme distance performance, the kit supports reliable point-to-point (PtP) connections over ranges of up to 15 km. High-gain 23 dBi directional antennas ensure strong signal integrity and low latency across large outdoor areas, making it ideal for linking remote sites such as industrial facilities, rural locations, and infrastructure installations.
Deployment is straightforward thanks to its preconfigured, plug-and-play design with automatic pairing. App-guided alignment and integrated signal indicators simplify installation and ensure optimal positioning, even across long distances. The unit's Gigabit PoE connectivity allows both power and data transmission over a single cable, reducing installation complexity and cost.
The Beam Bridge 5 UR KIT is built for resilience in harsh outdoor conditions. Its IP65-rated enclosure, extended operating temperature range, and built-in lightning protection ensure dependable performance in challenging environments. Integration with TP-Link's Omada SDN platform also enables centralised management and remote monitoring.
Features
- Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
- Simple PoE Deployment and Power Supply: 1x Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
- Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App
Kit Contents
- Beam Bridge 5 UR KIT
- Installation Guide
- Mounting Kit
- Passive PoE Adapter
- Power Cord
Manuals & Datasheet
Technical
| Category | Specification |
|---|---|
| Hardware Features |
|
| Wireless Features |
|
| Wireless Security |
|
| Transmission Power |
|
| Management |
|
| Others |
|
