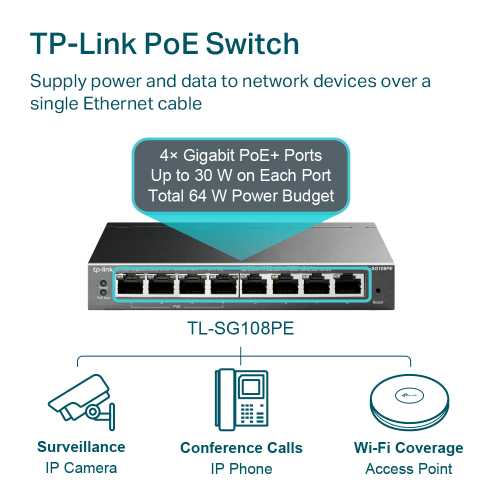

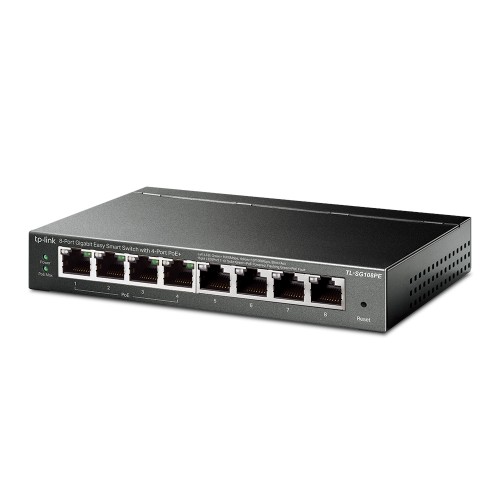

The TP-Link TL-SG108PE is an 8-port Gigabit Easy Smart Switch designed for small business, surveillance and office networks that require reliable connectivity with simple management features. Four PoE+ ports can deliver both power and data over a single Ethernet cable, making it an ideal solution for IP cameras, wireless access points and VoIP phones while reducing installation costs and cabling complexity.
With a total PoE budget of up to 64W, the TL-SG108PE provides the flexibility to power multiple devices while maintaining high-speed Gigabit performance across all eight ports. Easy Smart management features such as VLAN, QoS, IGMP Snooping, PoE Auto Recovery and network monitoring help improve network security, optimise traffic and simplify troubleshooting. Its compact fanless design ensures silent operation, making it well suited to offices, retail environments, meeting rooms and small-scale CCTV deployments.
Features
- Eight 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 64 W for all PoE ports

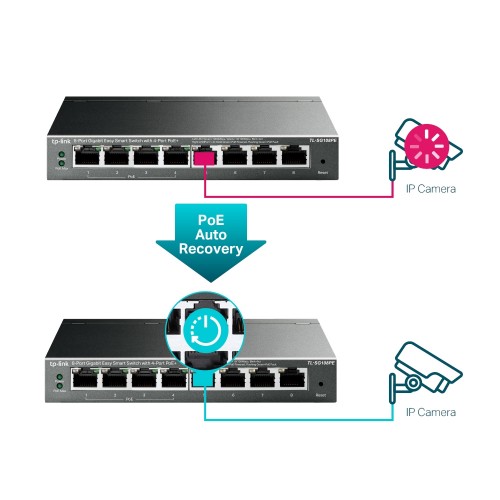

- Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery

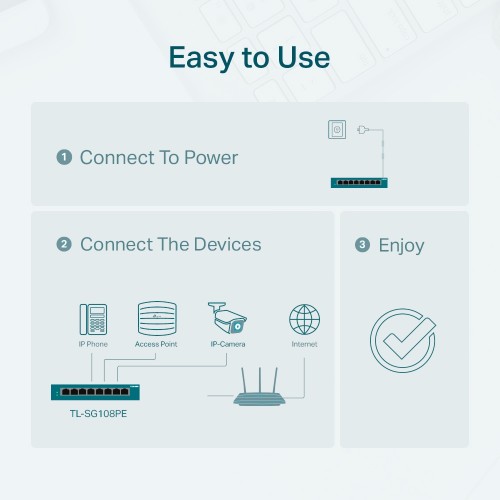

- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Kit Contents
- TL-SG108PE
- Power Adapter
- Installation Guide
- Rubber Feet
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
| Interface | Eight 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |

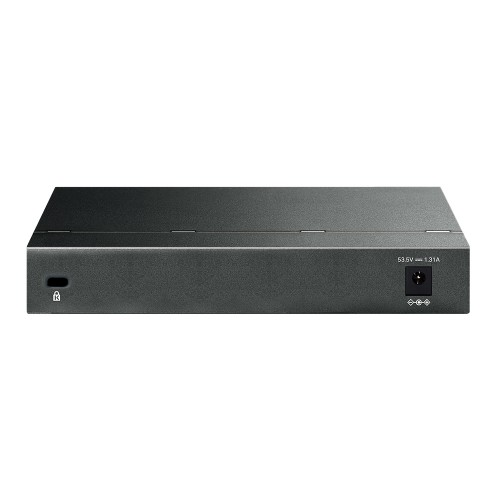

| Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 64W |
| Dimensions (W x D x H) | 6.2 x 4.0 x 1.0in (158 x 101 x 25mm) |
| Max. Power Consumption | 5.41 W (220V/50Hz with no PD connected) 74.27 W (220V/50Hz with 64 W PD connected) |
| Max. Heat Dissipation | 18.45 BTU/h (with no PD connected) 253.26 BTU/h (with 64 W PD connected) |
| PERFORMANCE | |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 16KB |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K |
| SOFTWARE FEATURES | |
| Quality of Service |
|
| L2 Features |
|
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management Features | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
Power Adapter Installation Guide Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0°C ~ 40°C (23°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
