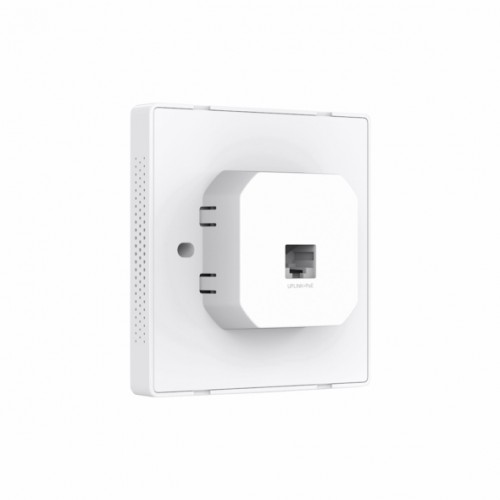

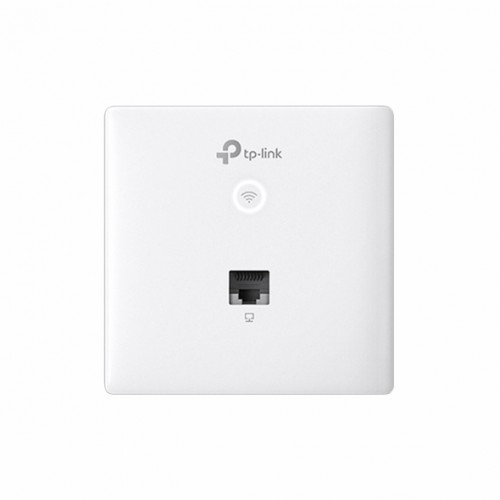

The TP-Link EAP115-Wall is a compact wall-plate access point designed to provide reliable Wi-Fi coverage directly in individual rooms. Ideal for hotels, student accommodation, offices, and apartments, it delivers dedicated wireless access without the need for ceiling or ceiling-mounted units.
Operating on the 2.4 GHz band, it offers stable connectivity for everyday applications like browsing, messaging, and light streaming. Its discreet, in-wall design blends neatly into existing infrastructure while offering easy access for end users.
Powered via Ethernet, the EAP115-Wall is simple to install using a single cable for both power and data. Integrated with the Omada platform, it also supports centralised management and monitoring, making it easy to control multiple units across a site.
Features
- Easy-mount construction allows installation into any standard EU-type data wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet (802.3af) for convenient and affordable installation
- Enterprise class Wi-Fi security helps to decrease network security threats
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Supports management VLAN for an enhanced network management
Kit Contents
- 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
- Installation Guide
- Mounting Screw
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | 10/100Mbps Ethernet (RJ-45) Port |
| Button | LED/Wi-Fi Button、Reset |
| Power supply | PoE(IEEE 802.3af) |
| Max. Power Consumption | 2.8 W |
| Dimensions ( W x D x H ) | 3.4 x 3.4 x 1.2in (86.8 x 86.8 x 30.2mm) |
| Antenna | Internal 2 x 1.8dBi Omni |
| Mounting | Wall Plate Mounting |
| Hardware watch Dog | Yes |
| Wireless Features | |
| Coverage | 25m2 (300ft2) |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4 GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power | CE: ≤20dBm(2.4GHz) |
| Management Features | |
| Omada App | Yes |
| Centralised Management | Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requires the use of OC300, OC200, or Omada Software Controller |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Other | |
| Certification | CE, RoHS |
| Package Content |
|
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F) Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F) Operating Humidity: 10 ~ 90% non-condensing Storage Humidity: 5 ~ 90% non-condensing |
