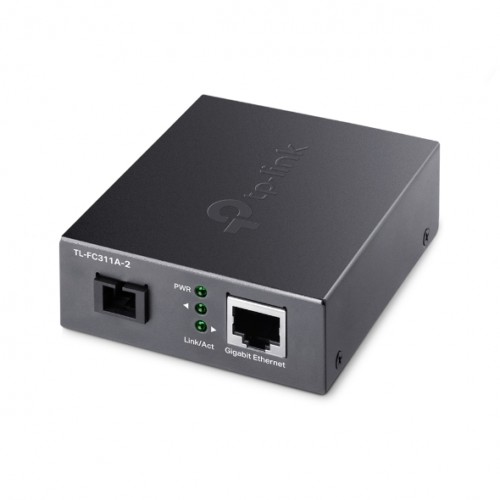

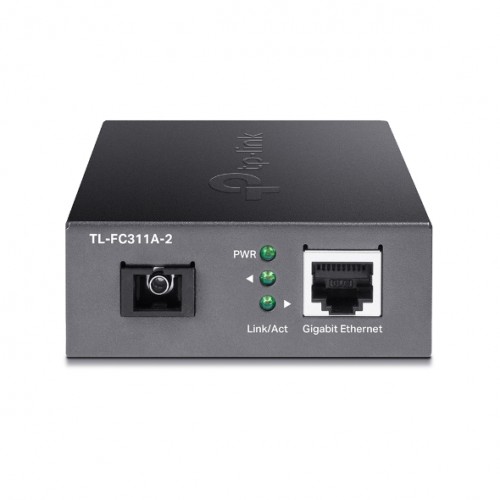

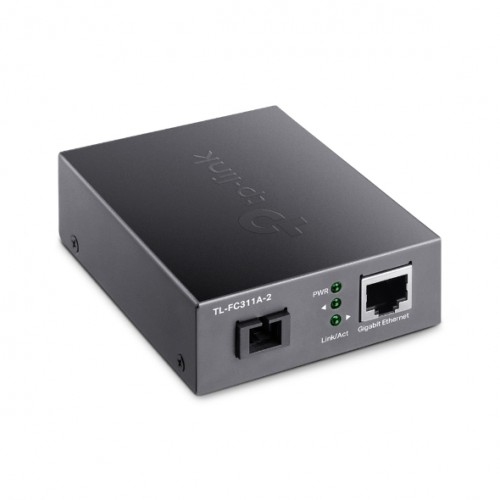

The TP-Link FC311A-2 is a Gigabit media converter designed to extend network connections over long distances using fibre optic cabling. It works alongside the FC311B-2 as part of a WDM pair, making it ideal for surveillance systems, campus networks, and building-to-building links.
Using WDM (Bi-Directional) technology, it transmits data over a single fibre strand, helping reduce cabling costs while maintaining efficient, high-speed performance. Gigabit support ensures stable and reliable data transfer across extended distances.
With a plug and play design, the FC311A-2 requires no configuration, making installation quick and straightforward. Its compact and durable build makes it well suited for a wide range of network environments where dependable long-distance connectivity is needed.
Features
- 1 x 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fibre
- Extends fibre distance up to 2 km
Kit Contents
- Media Converter TL-FC311A-2
- Power Adapter
- Installation Guide
Manuals & Datasheet
Technical
| Network | |
|---|---|
| Standards & Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Hardware Features | |
| Interface | 1 x Gigabit SC/UPC Fibre Port 1 x 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | Single-mode Fibre (9/125μm, maximum 2km) UTP category 5, 5e cable (maximum 100m) |

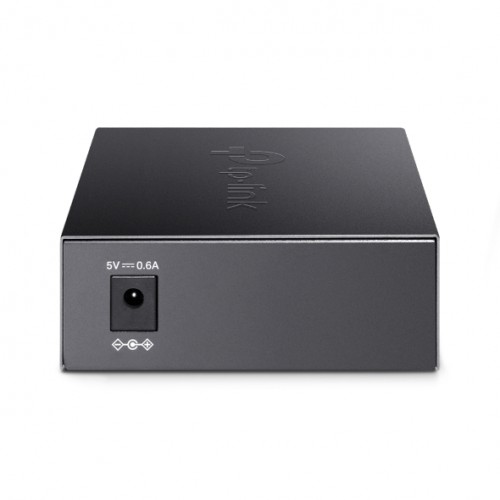

| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link / Act |
| Wave Length | 1550nm TX 1310nm RX |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1in (94.5 x 73.0 x 27.0mm) |
| Other | |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
