New TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+
Click Image for Gallery
TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

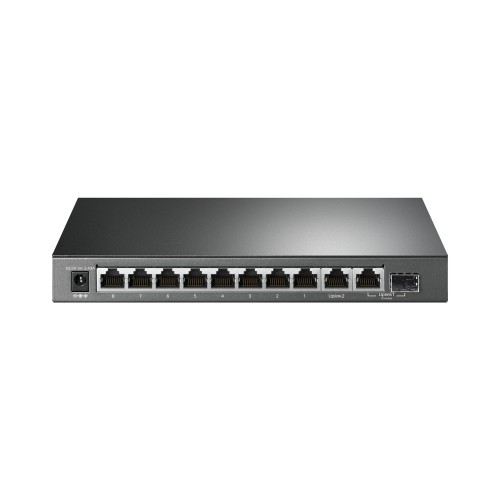

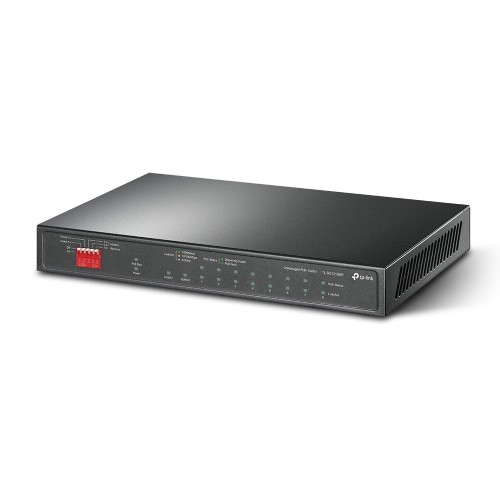

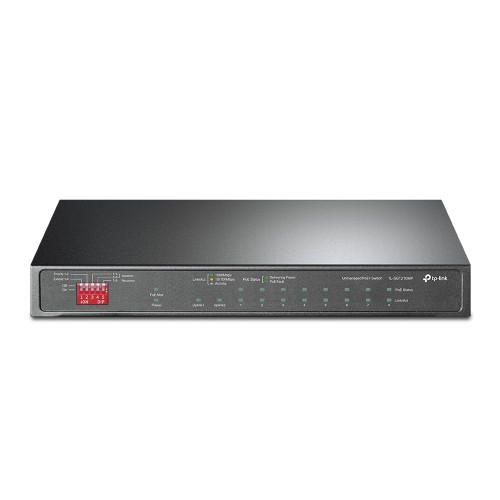

TheTP-Link TL-SG1210Pis a reliable Gigabit PoE+ switch designed for small business networks, surveillance systems, and wireless deployments. Featuring 9 Gigabit RJ45 ports, 1 Gigabit SFP uplink port, and 8 PoE+ ports, it delivers both power and data over a single cable to compatible devices such as IP cameras, access points, and IP phones.

With a 63W PoE power budget and up to 30W per PoE port, the TL-SG1210P provides dependable power distribution while QoS and IGMP Snooping help optimise voice, video, and IPTV traffic. Its plug-and-play design, durable metal casing, and silent fanless operation make it an ideal choice for professional network installations.


Features

  • 9 Gigabit RJ45 ports and 1 Gigabit Combo SFP/RJ45 port for flexible network connectivity
  • 8 PoE+ ports deliver power and data through a single Ethernet cable with a 123W total PoE budget
  • IEEE 802.3af/at compliant with up to 30W PoE output per port

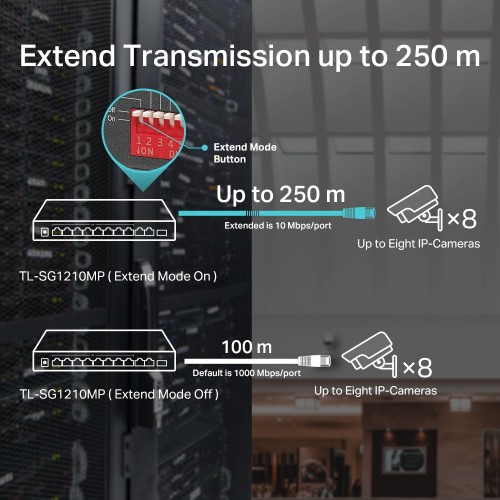

  • Extend Mode supports data and power transmission distances of up to 250m

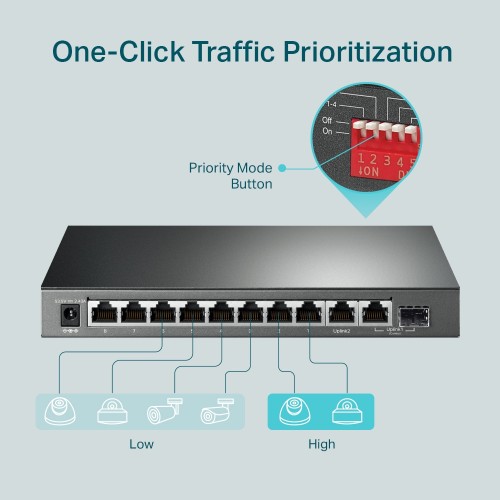

  • Priority Mode prioritises ports 1-2 to ensure optimal performance for critical applications

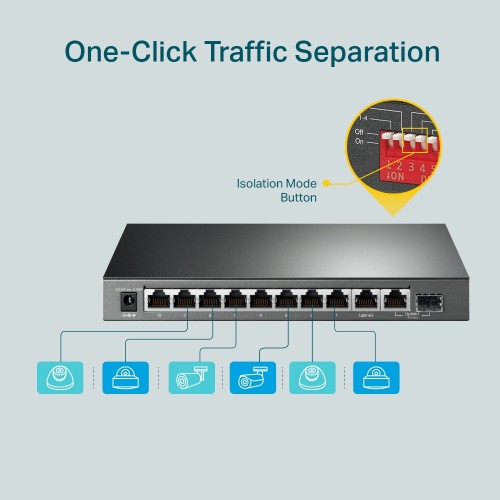

  • Isolation Mode separates client traffic with a single click for enhanced security and network stability

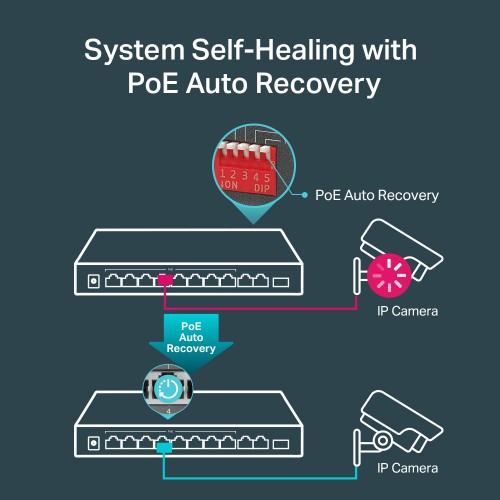

  • PoE Auto Recovery automatically detects and reboots unresponsive PoE-powered devices
  • Plug-and-play deployment with no configuration or software installation required
  • Fanless design ensures silent, energy-efficient operation in any environment


Kit Contents

  • TL-SG1210MP
  • Power Adapter
  • Installation Guide


Technical

HARDWARE FEATURES
Interface
  • 9 x 10/100/1000 Mbps RJ45 Ports
  • 1 x 1000 Mbps Combo SFP/RJ45 Port
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Power SupplyExternal Power Adapter (Output: 53.5VDC / 2.43A)
Physical Security LockYes
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1 - 8
Power Supply: 123 W
Dimensions (W x D x H)8.2 x 4.9 x 1.0in (209 x 126 x 26mm)
MountingRack Mountable / Desktop
Max. Power Consumption 7.93 W (220V / 50Hz with no PD connected)
141.40 W (220V / 50Hz with 123 W PD connected)
Max. Heat Dissipation 27.04 BTU/h (220V / 50Hz with no PD connected)
482.17 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity20Gbps
Packet Forwarding Rate14.88Mpps
MAC Address Table4K
Packet Buffer Memory1.4Mb
Jumbo Frame16KB
SOFTWARE FEATURES
Advanced Features
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1 - 4, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1 - 2)
  • Isolation Mode Button (Ports 1 - 4 / 5-8)
  • PoE Auto Recovery (Ports 1-8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Transmission MethodStore-And-Forward
OTHER
CertificationFCC, CE, RoHS
Package Content
  • TL-SG1210MP
  • Power Adapter
  • Installation Guide
Environment Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90% RH non-condensing

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

  • Brand: TP-Link
  • Product Code: TL-SG1210MP
  • Availability:  In Stock
