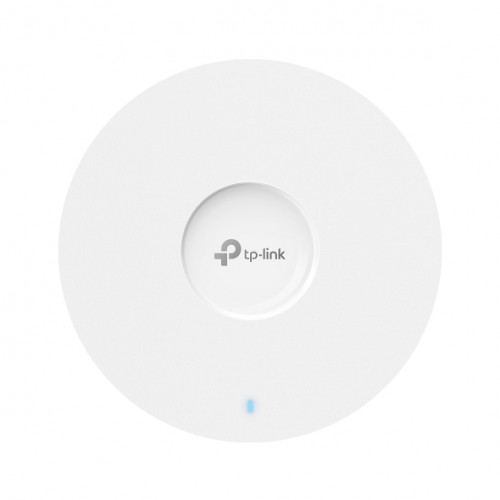

The Omada EAP683 LR is a long‑range Wi‑Fi 6 access point designed to deliver strong, reliable wireless coverage across large indoor spaces. Ideal for offices, education, hospitality, retail, and warehouses, it is built for environments where extended reach and consistent performance are essential.
Powered by Wi‑Fi 6 technology, the EAP683 LR provides improved throughput, lower latency, and greater efficiency compared to previous generations. Features such as OFDMA and MU‑MIMO help optimise bandwidth usage and maintain smooth performance for multiple connected devices, while its enhanced radio design enables wider coverage with fewer access points. High‑speed uplink support ensures full use of modern wired backhaul infrastructure.
Fully integrated with the Omada SDN platform, the EAP683 LR supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security, seamless roaming, and intelligent RF optimisation help deliver a stable and secure wireless experience, making the EAP683 LR an ideal solution for scalable, centrally managed networks that require extended indoor wireless coverage.
Features
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with Omada SDN platform for centralised management.
- Omada Mesh, Seamless Roaming, and more.
- Supports both 802.3at PoE+ and DC (adapter included).
Kit Contents
- EAP683 LR
- Ceiling/Wall Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Category | Specification |
|---|

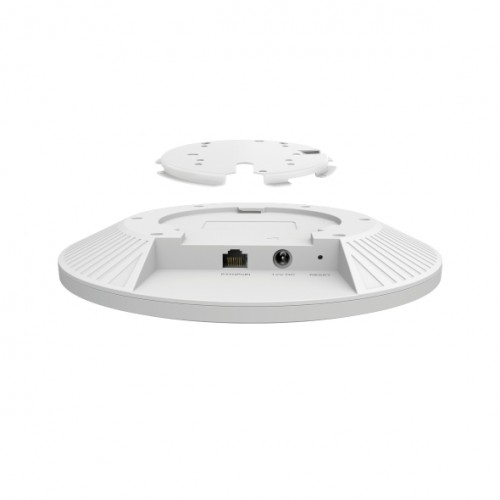

| Hardware Features | - Interface: 1 × 2.5 Gigabit PoE+ Ethernet port
- Button: Reset
- Power Supply: 802.3at PoE or 12 V DC / 2 A, power adapter not included
- Max Power Consumption: 20.43 W (EU), 23.69 W (US)
- Dimensions (W × D × H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna: Internal omni directional antennas with 4 × 4 dBi at 2.4 GHz and 4 × 5 dBi at 5 GHz
- Bluetooth: Supported
- Mounting: Ceiling or wall mounting with kits included
|
| Wireless Features | - Coverage: Up to 185 m² (2000 ft²)
- Concurrent Clients: 512 or more
- Wireless Standards: IEEE 802.11 a, b, g, n, ac and ax
- Frequency Bands: 2.4 GHz and 5 GHz
- Wireless Speed: Up to 1148 Mbps at 2.4 GHz, up to 4804 Mbps at 5 GHz
- Advanced Wireless: 1024 QAM, OFDMA, 4 × 4 MU MIMO uplink and downlink, 160 MHz channel bandwidth
- Roaming and Optimisation: Seamless roaming with 802.11k, v and r, Omada mesh support, load balance, band steering, beamforming and airtime fairness
- SSID Support: Up to 16 SSIDs, 8 per band
- Scheduling: Wireless and reboot scheduling
- QoS: WMM QoS with rate limiting
- Radio Controls: Enable or disable wireless radio and automatic channel assignment
- Transmit Power Control: Adjustable in dBm
- Wireless Statistics: Per SSID, access point and client
|
| Wireless Security | - Captive portal authentication
- Access control and wireless MAC address filtering
- Client isolation and SSID to VLAN mapping
- Rogue AP detection
- 802.1X authentication support
- Encryption: WPA, WPA2 and WPA3 personal and enterprise
|
| Transmission Power | - CE region: Below 20 dBm EIRP at 2.4 GHz, below 23 dBm EIRP at 5 GHz bands 1 and 2, below 28 dBm EIRP at 5 GHz band 3
- FCC region: Below 26 dBm at 2.4 GHz and 5 GHz
|
| Management | - Omada App support
- Centralised management via Omada hardware controllers, software controller or cloud based controller
- Cloud access requires an Omada controller
- Email alerts and LED on or off control
- Management MAC access control
- SNMP v1, v2c and v3
- Local and remote syslog support
- SSH support
- Web based management via HTTP and HTTPS
- L3 management, multi site management and management VLAN support
- Zero touch provisioning via Omada Cloud controller
|
| Others | - Certifications: CE, FCC and RoHS
- Package contents: EAP683 LR, ceiling and wall mounting kits and installation guide
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non condensing
- Storage humidity: 5–90% RH non condensing
|
