The Omada EAP653 UR is a business‑class Wi‑Fi 6 access point designed to deliver reliable wireless performance and efficient client handling in everyday business environments. Well suited for offices, education, retail, and hospitality deployments, it provides consistent coverage and stable connectivity for modern network demands.
Powered by Wi‑Fi 6 technology, the EAP653 UR offers improved throughput, reduced latency, and better efficiency compared to previous‑generation access points. Features such as OFDMA and MU‑MIMO help optimise bandwidth usage, ensuring smooth performance when multiple devices are connected simultaneously. High‑speed uplink support allows the access point to integrate easily into modern wired network infrastructure.
Fully integrated with the Omada SDN platform, the EAP653 UR supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security, seamless roaming, and intelligent RF management help maintain a stable and secure wireless experience, making the EAP653 UR a practical and scalable Wi‑Fi 6 solution for centrally managed business networks.
Features
- 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz.
- Ultra-range wireless coverage by more antennas with higher transmit power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Omada Mesh, Seamless Roaming, etc.
- Supports both 802.3at PoE+ and DC (adapter not included).
- Φ6.3 in × 1.3 in elegant design brings more agility.
- Integrates with the Omada SDN platform for centralised management.
Kit Contents
- EAP653 UR
- Ceiling/Wall Mounting Kit
- Installation Guide
Manuals & Datasheet
Technical
| Category | Specification |
|---|

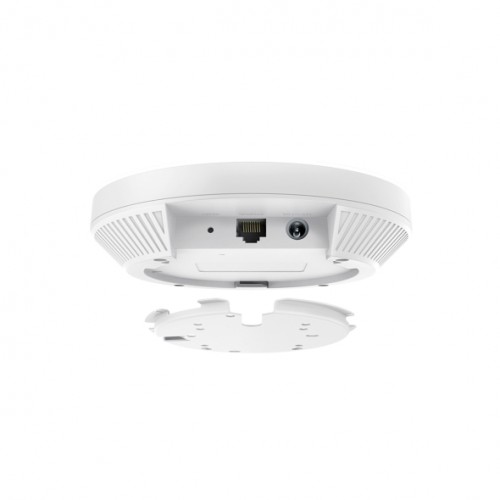

| Hardware Features | - Interface: 1 × Gigabit PoE+ Ethernet port
- Button: Reset
- Power Supply: 802.3at PoE, 48 V passive PoE, or 12 V DC / 1.5 A (power adapter not included)
- Max Power Consumption: 14.2 W (EU), 15.5 W (US)
- Dimensions (W × D × H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
- Antenna: Internal omni antennas with 2 × 5 dBi at 2.4 GHz and 3 × 5 dBi at 5 GHz
- Mounting: Ceiling or wall mounting with kits included, junction box mounting supported
|
| Wireless Features | - Coverage: Up to 185 m² (2000 ft²)
- Concurrent Clients: 250 or more
- Wireless Standards: IEEE 802.11 a, b, g, n, ac and ax
- Frequency Bands: 2.4 GHz and 5 GHz
- Wireless Speed: Up to 574 Mbps at 2.4 GHz, up to 2402 Mbps at 5 GHz
- Advanced Wireless: 1024 QAM, OFDMA and extended OFDM symbol duration
- MU MIMO: 2 × 2 uplink and downlink MU MIMO on both 2.4 GHz and 5 GHz
- Roaming and Optimisation: Seamless roaming with 802.11k, v and r, Omada mesh support, band steering, load balance, beamforming and airtime fairness
- SSID Support: Up to 16 SSIDs, 8 per band
- Scheduling: Wireless and reboot scheduling
- QoS: WMM QoS with rate limiting
- Radio Controls: Enable or disable wireless radio, automatic channel assignment and transmit power control
- Wireless Statistics: Per SSID, access point and client
|
| Wireless Security | - Captive portal authentication
- Access control and wireless MAC address filtering
- Client isolation and SSID to VLAN mapping
- Rogue AP detection
- 802.1X authentication support
- Encryption: WPA, WPA2 and WPA3 personal and enterprise
|
| Transmission Power | - CE region: Below 20 dBm EIRP at 2.4 GHz, below 23 dBm EIRP at 5 GHz bands 1 and 2, below 29 dBm EIRP at 5 GHz band 3
- FCC region: Below 26 dBm at 2.4 GHz, below 27 dBm at 5 GHz
|
| Management | - Omada App support
- Centralised management via Omada hardware controllers, software controller or cloud based controller
- Cloud access requires an Omada controller
- Email alerts and LED on or off control
- Management MAC access control
- SNMP v1, v2c and v3
- Local and remote syslog support
- SSH support
- Web based management via HTTP and HTTPS
- L3 management, multi site management and management VLAN support
- Zero touch provisioning via Omada Cloud controller
|
| Others | - Certifications: CE, FCC and RoHS
- Package contents: EAP653 UR, ceiling or wall mounting kit and installation guide
- DC adapter sold separately
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non condensing
- Storage humidity: 5–90% RH non condensing
|
