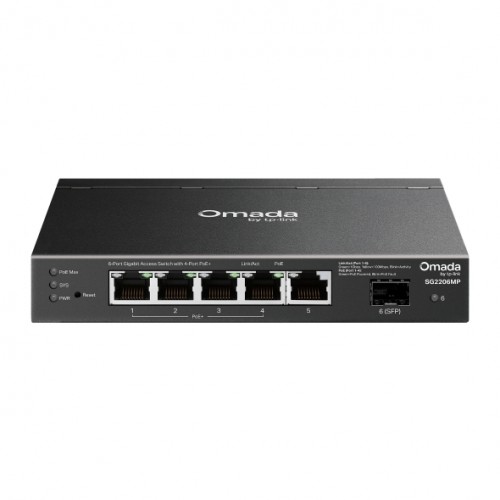

The Omada SG2206MP is a compact, smart‑managed Gigabit PoE+ switch designed for small business and professional networks that require flexible PoE power and simple centralised management. Equipped with 4 Gigabit PoE+ ports, 1 Gigabit RJ45 port, and 1 Gigabit SFP slot, it provides reliable high‑speed connectivity for access points, IP cameras, and other PoE‑powered devices while maintaining flexible uplink options.
Fully integrated into the Omada SDN platform, the SG2206MP supports cloud-based management, zero‑touch provisioning, and centralised monitoring, allowing administrators to configure and control the network from a single interface. Essential Layer 2+ features including VLANs, QoS, IGMP snooping, and static routing help ensure stable and efficient traffic handling for voice, video, and data applications.
With built‑in enterprise security features such as ACLs, 802.1X authentication, and storm control, the SG2206MP helps protect network integrity without adding management complexity. Its fanless design and compact metal enclosure make it ideal for quiet office environments, retail spaces, and small installations where dependable PoE performance and ease of deployment are essential.
Features
- 5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
- 63W total PoE budget with up to 30W for each PoE+ port
- Centralised cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and desktop/wall mounting design
Kit Contents
- SG2206MP Switch
- Power Adapter
- Power Cord
- Rack-mount Kit
- Rubber Feet
- Installation Guide
Manuals & Datasheet
Technical
| Category | Specification |
|---|
| Hardware Features | - Interfaces: 4 × 10/100/1000 Mbps PoE+ RJ45 ports, 1 × 10/100/1000 Mbps RJ45 port, 1 × Gigabit SFP slot
- Physical Security Lock: Yes
- Power Supply: AC/DC adapter (input 100–240 V AC, output 53.5 V DC / 1.31 A)
- PoE: 802.3af and 802.3at compliant, 4 PoE+ ports, 63 W PoE budget, fast PoE and perpetual PoE supported
- Dimensions (W × D × H): 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
- Mounting: Desktop or wall mounting
- Max Power Consumption: 73.7 W (110 V / 60 Hz, with 63 W PD connected)
- Max Heat Dissipation: 250.4 BTU/hr (110 V / 60 Hz, with 63 W PD connected)
|
| Performance | - Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- Switching Capacity: 12 Gbps
- Packet Forwarding Rate: 8.93 Mpps
- MAC Address Table: 8 K
|
| Quality of Service | - 802.1p CoS and DSCP priority
- 8 priority queues
- Scheduling modes: SP and WRR
- Queue weight configuration
- Bandwidth control with port and flow based rate limiting
- Storm control for broadcast, multicast and unknown unicast traffic
|
| L2 and L2+ Features | - 16 IPv4 and IPv6 interfaces
- 32 static IPv4 and IPv6 routes
- DHCP server and relay including interface, VLAN and L2 relay
- Static, proxy and gratuitous ARP
- Link aggregation
- Spanning Tree Protocol support for STP, RSTP and MSTP with protection features
- Loopback detection
- 802.3x flow control
- Port mirroring
- DLDP
- LLDP and LLDP MED
|
| L2 Multicast | - Up to 511 IPv4 and IPv6 multicast groups
- IGMP snooping
- Multicast VLAN Registration
- Multicast filtering
- Limited IP multicast profiles
|
| VLAN | - Up to 4K VLAN groups
- 802.1Q tagged VLAN
- MAC VLAN with 16 entries
- Protocol VLAN
- GVRP
- Voice VLAN
|
| Access Control List | - Up to 230 ACL entries
- Time based ACL
- MAC, IP and IPv6 ACL support
- Permit and deny rule operation
- Mirroring, redirect, rate limiting and QoS remark actions
- Port and VLAN rule binding
|
| Security | - IP MAC Port binding
- AAA and 802.1X authentication
- RADIUS authentication and accounting
- IP and IPv6 MAC binding with up to 512 entries
- DHCP and DHCPv6 snooping, ARP inspection and ND detection
- IP and IPv6 source guard
- DoS protection and DHCP filtering
- Port security up to 64 MAC addresses per port
- HTTPS and SSH secure management
|
| IPv6 | - IPv6 static routing and ACL
- Dual IPv4 and IPv6 stack
- MLD snooping
- Neighbour discovery and MTU discovery
- IPv6 ICMP, TCPv6 and UDPv6
- IPv6 applications including DHCPv6, SNMP, SSH, SSL, HTTP and TFTP
|
| MIBs | - MIB II, Bridge and P/Q Bridge MIB
- RADIUS authentication and accounting MIB
- Remote ping and traceroute MIB
- RMON MIB groups
- TP Link private MIBs
|
| Management | - Omada Cloud, Hardware and Software Controller support
- Zero Touch Provisioning via Omada Cloud Controller
- Web based GUI and CLI via telnet
- SNMP v1, v2c and v3
- RMON monitoring groups
- Dual image and dual configuration
- CPU monitoring, cable diagnostics, EEE, SNTP and system log
- Digital Diagnostic Monitoring and OAM support
|
| Others | - Certifications: CE, FCC, RoHS
- Package contents: SG2206MP switch, power adapter, power cord, rackmount kit, rubber feet, installation guide
- System compatibility: Windows, macOS, NetWare, UNIX and Linux
- Operating temperature: -5–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non condensing
- Storage humidity: 5–90% RH non condensing
|
