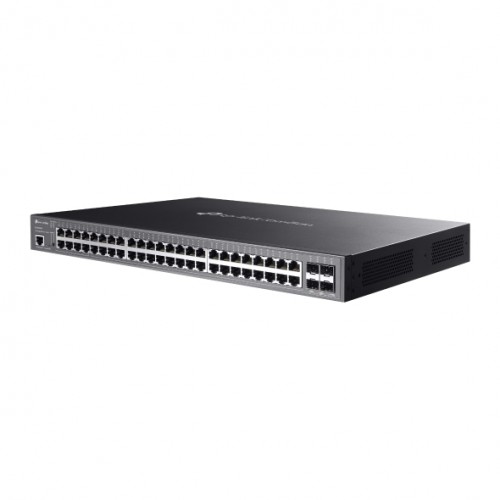

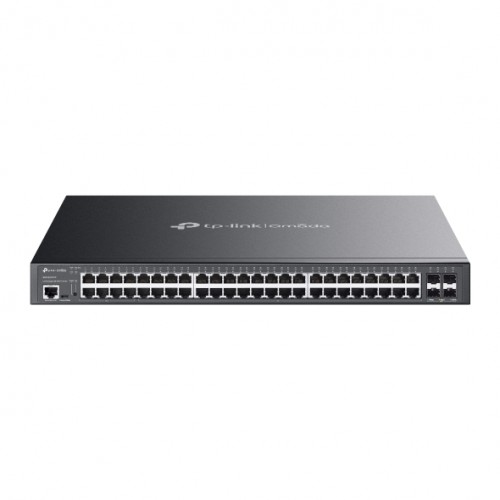

The Omada SG3452XMPP is a high‑capacity L2+ managed multi‑gigabit PoE++ switch designed for demanding enterprise access and aggregation environments. It provides 48 × 2.5 Gbps RJ45 ports and 4 × 10 Gbps SFP+ uplinks, delivering the bandwidth required for dense wired and wireless deployments. With full 802.3bt PoE++ support, the switch supplies up to 90 W per port and a high overall PoE power budget, making it suitable for powering Wi‑Fi 6, Wi‑Fi 6E and Wi‑Fi 7 access points, PTZ cameras and other high‑power devices over a single Ethernet connection. The SG3452XMPP supports a comprehensive Layer 2+ feature set, including static routing, VLANs, enterprise‑grade QoS, IGMP snooping and advanced security features such as ACLs, DHCP snooping, IP–MAC–Port binding and 802.1X authentication. Integrated with Omada SDN, it enables centralised cloud management via the Omada Controller, web interface or mobile app, while also supporting standalone management through web GUI, CLI, SNMP and RMON for flexible deployment and operational control.
Features
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget
- Centralised cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Kit Contents
- SG3452XMPP Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Technical
| Hardware features | |
|---|---|
| Interface | 48 × 10/100/1000 Mbps RJ45 ports (8 × PoE++, 40 × PoE+) 4 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro‑USB console port |
| Fan quantity | 3 |
| Physical security lock | Yes |
| Power supply | 100–240 V AC~, 50/60 Hz |
| PoE ports (RJ45) | Standard: IEEE 802.3af / 802.3at / 802.3bt compliant PoE++ ports: ports 1–8, up to 90 W per port PoE+ ports: ports 9–48, up to 30 W per port Total PoE power budget: 750 W |
| Dimensions (W × D × H) | 440 × 330 × 44 mm / 17.3 × 13.0 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 913.4 W (110 V / 60 Hz, with 750 W PoE load) |
| Max heat dissipation | 3114.69 BTU/hr (110 V / 60 Hz, with 750 W PoE load) |
| Performance | |
| Switching capacity | 176 Gbps |
| Packet forwarding rate | 130.9 Mpps |
| MAC address table | 16 K |
| Packet buffer memory | 12 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | 8 priority queues IEEE 802.1p CoS and DSCP priority Queue scheduling: SP, WRR, SP + WRR Port‑ and flow‑based rate limiting QoS remarking |
| L2 and L2+ features | IPv4 and IPv6 interfaces (up to 128) Static routing (48 routes) Static and dynamic ARP, proxy ARP, gratuitous ARP DHCP server and relay, DHCP L2 relay Link aggregation and spanning tree protocol Loopback detection and 802.3x flow control Port mirroring |
| L2 multicast | IGMP snooping and authentication MLD snooping Multicast VLAN registration Multicast filtering |
| VLAN | Up to 4K VLAN groups 802.1Q tagged VLAN MAC VLAN, protocol VLAN, private VLAN QinQ, GVRP and voice VLAN |
| Access control list | Time‑based, MAC, IP, IPv6 and combined ACLs Packet‑content ACLs Policy actions: mirror, redirect, rate limit, QoS remark |
| Security | IP‑MAC‑port binding and DHCP snooping ARP inspection and IPv4 / IPv6 source guard DoS protection and storm control 802.1X authentication with RADIUS and TACACS+ HTTPS (TLS 1.2) and SSH management Port isolation and access control |
| IPv6 support | Dual IPv4 / IPv6 stack Static IPv6 routing and neighbour discovery IPv6 ACL and IPv6 applications |
| MIB support | Standard MIBs including IF‑MIB, bridge MIB, RMON and RADIUS MIBs Vendor private MIB support |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI via console and telnet SNMP v1 / v2c / v3 with RMON LLDP and LLDP‑MED Dual image and dual configuration CPU monitoring, cable diagnostics, SNTP and EEE |
| Others | |
| Certification | CE, FCC, RoHS |
| Package contents | SG3452XMPP switch Power cord Quick installation guide Rackmount kit Rubber feet |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: 0°C to 40°C / 32°F to 104°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
