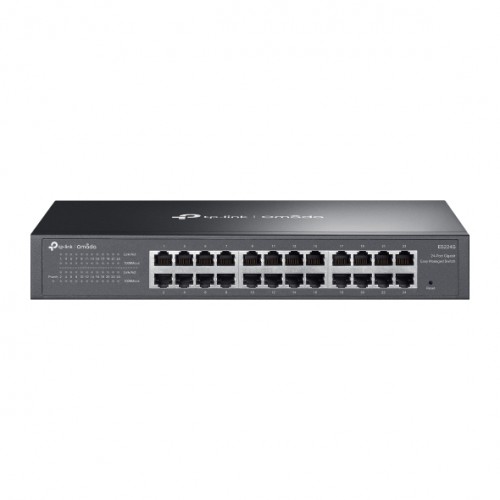

Omada 24-Port Gigabit Easy Managed Switch

The Omada ES224G is an Easy Smart Gigabit switch designed for small to medium business networks that need reliable wired performance with straightforward management. With 24 Gigabit Ethernet ports, it provides ample high‑speed connectivity for PCs, printers, servers, access points, and other networked devices across busy office environments.

Built for simple deployment and daily operation, the ES224G supports essential smart features such as VLANs, QoS, loop prevention, and IGMP snooping, helping to optimise traffic flow and maintain stable network performance without the complexity of fully managed switches. Configuration and monitoring are handled through an intuitive web‑based interface, making setup quick and accessible for non‑specialist administrators.

As part of the Omada ecosystem, the ES224G offers consistent visibility and simplified operation within Omada‑based network environments. Its fanless metal chassis ensures silent and dependable operation, making it well suited for offices, education, retail, and hospitality deployments where stable connectivity and ease of management are the priority.


Features

  • 24× 10/100/1000Mbps RJ45 ports
  • Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • VLAN, Port Isolation, Cable Test, QoSfor reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fan-less design for silent operation
  • Durable metal casing and desktop/rack mounting design


Kit Contents

  • ES224G Switch
  • Power Cord
  • Rubber Feet
  • Mounting Brackets
  • Screws
  • Installation Guide

Manuals & Datasheet


Technical


CategorySpecification
Hardware Features
  • Interfaces: 24 × 10/100/1000 Mbps RJ45 ports with auto negotiation and auto MDI and MDIX
  • Fan Quantity: Fanless
  • Installation: Desktop or rack mountable
  • Physical Security Lock: Yes
  • Power Supply: 100–240 V AC, 50/60 Hz
  • Dimensions (W × D × H): 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
  • Surge Protection: ±6 kV
Performance
  • Switching Capacity: 48 Gbps
  • Packet Forwarding Rate: 35.7 Mpps
  • MAC Address Table: 8 K
  • Packet Buffer Memory: 4 Mbit
  • Jumbo Frame: 15 KB
Quality of Service
  • Port based, 802.1p and DSCP QoS
  • 8 priority queues
  • Scheduling mode: WRR
  • Queue weight configuration
  • Port based bandwidth control
  • Storm control with kbps and pps modes for broadcast, multicast and unknown unicast traffic
L2 Features
  • Static link aggregation
  • Loop prevention and loopback detection
  • 802.3x flow control
  • Port mirroring with one to one and many to one modes and ingress, egress or both directions
  • Port statistics including traffic and mirror status
  • LLDP support
L2 Multicast
  • IGMP snooping
  • IGMP v1, v2 and v3 snooping
  • Fast leave support
VLAN
  • MTU VLAN
  • Port based VLAN
  • 802.1Q tagged VLAN
  • Up to 32 VLAN groups with 4K VLAN IDs
Transmission MethodStore and forward
Management
  • Omada Cloud, Hardware and Software Controller support
  • Zero Touch Provisioning via Omada Cloud Controller
  • Web based GUI
  • DHCP client
  • Cable diagnostics
  • Automatic device discovery, batch configuration and batch firmware upgrade
  • Unified configuration
Others
  • Certifications: FCC, CE, RoHS
  • Package contents: ES224G switch, power cord, rubber feet, mounting brackets, screws and installation guide
  • Operating temperature: -5 to 50 °C
  • Storage temperature: -40 to 70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada 24-Port Gigabit Easy Managed Switch

  • Brand: TP-Link
  • Product Code: ES224G
  • Availability:  In Stock
