The JetStream TL‑SG2008 is a compact, smart‑managed Gigabit switch designed for small business and professional networks that need reliable performance without unnecessary complexity. With 8 Gigabit Ethernet ports, it provides high‑speed connectivity for servers, workstations, printers, and other networked devices.
Offering essential Layer 2+ features such as VLANs, QoS, IGMP snooping, and static routing, the TL‑SG2008 helps optimise traffic flow and maintain stable performance for data, voice, and video applications. Flexible management options including web interface, SNMP, and command line access make configuration and monitoring straightforward for IT administrators.
Built with enterprise‑grade security features such as ACLs, 802.1X authentication, and storm control, the TL‑SG2008 helps protect network integrity while remaining easy to deploy. Its fanless metal design ensures silent operation, making it well suited for offices, classrooms, retail environments, and small infrastructure installations.
Features
- 8× gigabit RJ45 ports provide high-speed connections.
- Zero-Touch Provisioning, Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
- L2/L3/L4 QoS and IGMP snooping.
- WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
Kit Contents
- TL-SG2008 Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Manuals & Datasheet
Technical
| Category | Specification |
|---|
| Hardware Features | - Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
- Interfaces: 8 × 10/100/1000 Mbps RJ45 ports with auto negotiation and auto MDI and MDIX
- Network Media: 10BASE T UTP Cat 3, 4, 5 up to 100 m; 100BASE TX and 1000BASE T UTP Cat 5, 5e or above up to 100 m
- Fan Quantity: Fanless
- Power Supply: 12 V DC external adapter or powered via PoE source
- Max Power Consumption: 6.4 W (220 V / 50 Hz)
- Dimensions (W × D × H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
|
| Performance | - Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- Bandwidth Backplane: 16 Gbps
- Packet Forwarding Rate: 11.9 Mpps
- MAC Address Table: 8 K
|
| Quality of Service | - 802.1p CoS and DSCP priority
- 8 priority queues
- Scheduling modes: SP and WRR
- Queue weight configuration
- Bandwidth control with port and flow based rate limiting
- Storm control for broadcast, multicast and unknown unicast traffic
|
| L2 and L2+ Features | - 16 IPv4 and IPv6 interfaces
- 32 static IPv4 and IPv6 routes
- DHCP server and relay including interface, VLAN and L2 relay
- Static, proxy and gratuitous ARP
- Static and LACP link aggregation with up to 8 groups
- Spanning Tree support for STP, RSTP and MSTP with protection features
- Loopback detection
- 802.3x flow control
- Port and CPU mirroring with multiple modes
- DLDP
- LLDP and LLDP MED
|
| VLAN | - Up to 4K VLAN groups
- 802.1Q tagged VLAN
- MAC VLAN with 12 entries
- Protocol VLAN
- GVRP
- Voice VLAN
|
| Access Control List | - Up to 230 ACL entries
- Time based, MAC, IP and IPv6 ACLs
- Permit and deny rule operation
- Mirror, rate limit, redirect and QoS remark actions
- Port and VLAN rule binding
|
| Security | - AAA and 802.1X authentication
- RADIUS authentication and accounting
- IP and IPv6 MAC binding with up to 512 entries
- DHCP and DHCPv6 snooping, ARP inspection and ND detection
- IP and IPv6 source guard
- DoS protection
- Port security up to 64 MAC addresses per port
- HTTPS and SSH secure management
|
| Management | - Web based GUI and CLI via telnet
- SNMP v1, v2c and v3
- RMON monitoring groups
- Dual image and dual configuration
- CPU monitoring, cable diagnostics, EEE, SNTP and system log
|
| MIBs | - MIB II, Bridge and P/Q Bridge MIB
- RADIUS authentication and accounting MIB
- Remote ping and traceroute MIB
- RMON MIB groups
- TP Link private MIBs
|
| Others | - Certifications: CE, FCC, RoHS
- Package contents: TL SG2008 switch, power adapter, installation guide, rubber feet
- System compatibility: Windows, macOS, NetWare, UNIX and Linux
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non condensing
- Storage humidity: 5–90% RH non condensing
|

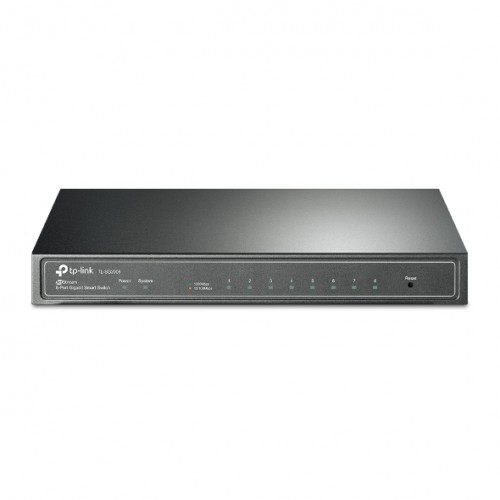

3.0_01_normal_1594973658581j-500x500.jpg "JetStream 8-Port Gigabit Smart Switch")

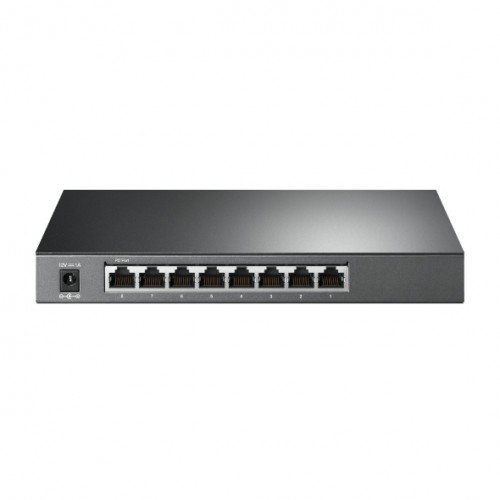

1.0_Bjpg_normal_20211112092754r-500x500.jpg "JetStream 8-Port Gigabit Smart Switch")

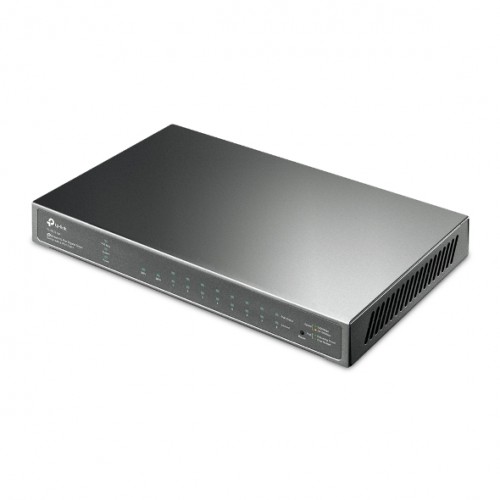

3.0_02_normal_1594973773065s-500x500.jpg "JetStream 8-Port Gigabit Smart Switch")
