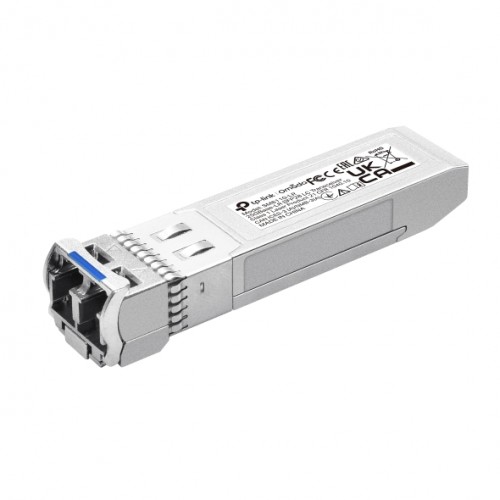

The TP-Link Omada 25GBase-LR SFP28 LC Transceiver (SM6110-LR) is a high-performance networking module engineered to deliver ultra-fast 25 Gigabit Ethernet connectivity over long distances. Designed for enterprise networks, data centres, and high-capacity environments, it enables reliable fibre communication with speeds of up to 25 Gbps, while also supporting backward compatibility with 10G connections for flexible deployment.
Utilising single-mode fibre (SMF) and operating at a 1310 nm wavelength, this transceiver supports transmission distances of up to 10 km, making it ideal for linking network infrastructure across buildings, campuses, or extended enterprise sites. Built with a compact SFP28 form factor, the module is fully compliant with industry standards, ensuring compatibility with a wide range of SFP+/SFP28-enabled devices such as switches, routers, and servers. Its hot-pluggable design allows for easy installation or replacement without disrupting network operation, while integrated Digital Diagnostic Monitoring (DDM) provides real-time performance insights for improved reliability and maintenance.
With low power consumption (≤1.2 W) and robust construction, the SM6110-LR is designed for efficient, long-term use in demanding network environments. Combining high speed, long-distance capability, and simple deployment, it is a cost-effective solution for businesses looking to expand or upgrade their fibre networking infrastructure with dependable 25G performance.
Features
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
Kit Contents
- 1 X SM6110-LR
- 1 X Installation Guide
Manuals & Datasheet
| Transceiver | |
|---|---|
| Standards & Protocols |
|
| Wave Length | 1310nm |
| Power Supply | 3.3V |
| Fibre Type | 9/125µm Single-Mode |
| Max. Cable Length | 10km |

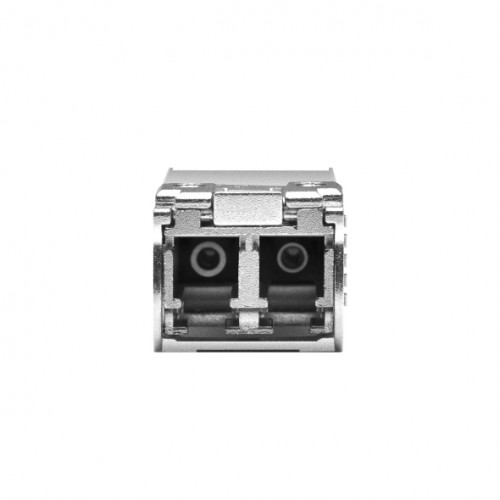

| Connector | Duplex LC/UPC |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) Operating Humidity: 10% to 90% RH, Non-Condensing Storage Humidity: 5% to 90% RH, Non-Condensing |
| Hardware Features | |
| Product Dimensions | 2.24 x 0.55 x 0.47in (57 x 14 x 12mm) |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Other | |
| Package Content | SM6110-LR Installation Guide |
| SFP28 Cable Data Rate | Dual Rate 25.78Gbps and 10.31Gbps |
