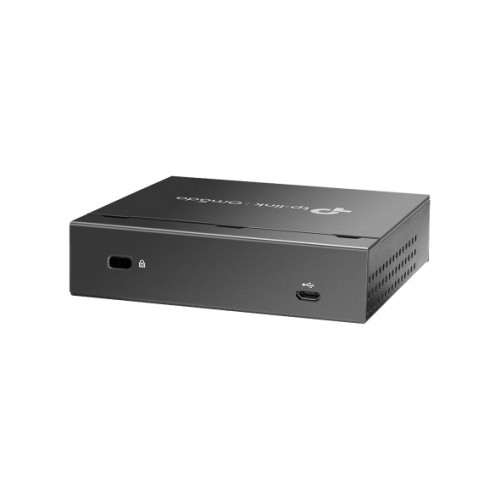

The Omada OC200 is a compact hardware controller designed to provide simple, always‑on centralised management for Omada networks. Ideal for small business and single‑site deployments, it allows administrators to manage Omada access points, switches, and gateways without relying on a dedicated PC or server.

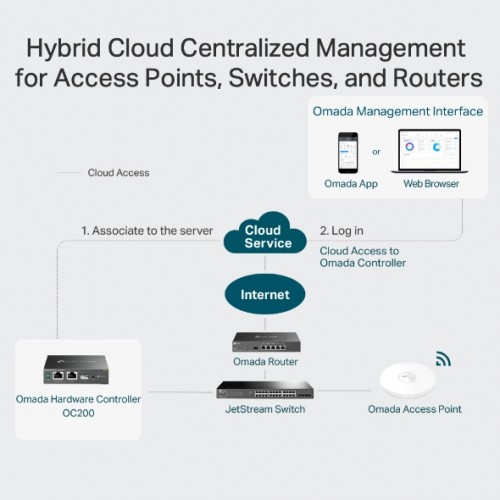

Operating as part of the Omada SDN platform, the OC200 enables unified configuration, centralised monitoring, and straightforward network administration from a single interface. Features such as remote management, batch configuration, and real‑time device status visibility help simplify day‑to‑day network operations.
With support for both local and cloud‑based access, the OC200 offers flexible management while remaining easy to deploy and maintain. Its compact design and dependable performance make it well suited for small offices, retail environments, cafés, classrooms, and other IT‑light installations that require reliable Omada management without added complexity.
Features
- Supports up to 100 Omada access points, 10 Omada routers, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs
- Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- Locally monitor and manage devices with the ultimate security and stability.
- A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
- 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
- The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
- Helps IT admins quickly see and troubleshoot connections at a glance.
- Wi-Fi heat-map simulator, visualisable network report, and batch & multi-site management benefit network maintenance.
Kit Contents
- Omada Hardware Controller OC200
- Installation Guide
- Ethernet Cable
Manuals & Datasheet
Technical
| Category | Specification |
|---|---|
| Hardware Features |
|
| Management Capacity |
|
| Management Features |
|
| Others |
|
