New Omada Gigabit VPN Gateway

The Omada ER706W is a compact business‑class VPN router designed for organisations that need reliable wired routing, integrated Wi‑Fi, and centralised management in a single device. Ideal for small offices, branch locations, and professional environments, it simplifies network deployment while delivering secure and stable connectivity.

Equipped with multiple Gigabit Ethernet ports and built‑in wireless capability, the ER706W provides both high‑speed wired networking and secure Wi‑Fi access without the need for a separate access point. Advanced routing features such as load balancing, QoS, and comprehensive VPN support enable secure site‑to‑site connections and remote access for distributed teams.

Fully integrated with the Omada SDN platform, the ER706W supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features including firewall policies and access control help protect network traffic, making the ER706W a practical all‑in‑one gateway solution for businesses that want secure connectivity with simplified management and integrated wireless networking.


Features

  • Zero-Touch Provisioning, Centralised Cloud Management, and Intelligent Monitoring.
  • Cloud access and Omada app for convenience and easy management.
  • High-speed wired connectivity.
  • 1 Gigabit WAN port and 2 Gigabit WAN/LAN ports with load balance raise the utilisation rate of multi-line broadband.
  • Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.
  • Supports up to 20× LAN-to-LAN IPsec, 50× OpenVPN, 16× L2TP, and 16× PPTP VPN connections.
  • Advanced firewall policies, DoS defence, IP/MAC/URL filtering, and more security functions protect your network and data.

Kit Contents

  • ER605
  • Power Adapter
  • RJ-45 Ethernet Cable
  • Installation Guide

Manuals & Datasheet


Technical


CategorySpecification
Security
  • DPI: Deep Packet Inspection supporting up to 2421 application types
  • Access Control: Source and destination IP based ACL and FQDN support
  • DNS Proxy: DNSSEC, DoH, DoT and DNS override
  • Filtering: Web group filtering, URL category and URL filtering, web security
  • ARP Inspection: GARP packet sending, ARP scanning, IP MAC binding and ARP detection
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking and WAN ping blocking
Hardware Features
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE and SNMP
  • Interfaces: 1 × Gigabit WAN port, 2 × Gigabit LAN or WAN ports, 2 × Gigabit LAN ports, 1 × USB 2.0 supporting LTE dongle
  • Network Media: UTP and STP cabling for 10BASE T, 100BASE TX and 1000BASE T up to 100 m
  • Fan Quantity: Fanless
  • Buttons: Reset button
  • Power Supply: External 12 V DC / 1 A adapter
  • Flash: 128 MB NAND
  • DRAM: 256 MB DDR
  • LED Indicators: Power, system, WAN, LAN and USB
  • Dimensions (W × D × H): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Desktop or wall mount
  • Max Power Consumption: 7.94 W
Performance
  • Concurrent Sessions: 150,000
  • New Sessions per Second: 2,600
  • NAT Throughput: Up to 945 Mbps upload and 939 Mbps download depending on connection type
  • Packet Forwarding Rate: Up to 1,388,815 pps for 66 byte packets
  • IPsec VPN Throughput: Up to 260 Mbps depending on encryption
  • GRE Throughput: 460.97 Mbps unencrypted, 161.83 Mbps encrypted
  • WireGuard VPN Throughput: 123.4 Mbps
  • OpenVPN Throughput: 15.9 Mbps
  • L2TP VPN Throughput: 558.6 Mbps unencrypted, 143.6 Mbps encrypted
  • PPTP VPN Throughput: 616.33 Mbps unencrypted, 49.83 Mbps encrypted
  • DPI Throughput: TCP 905 Mbps, UDP 788 Mbps
Basic Functions
  • LAN DNS: Supported
  • WAN Types: Static IP, dynamic IP, PPPoE with MRU support, PPTP and L2TP
  • MAC Clone: WAN and LAN MAC address modification
  • DHCP: Server, DHCPv6 PD server, option customisation, address reservation, multi IP, multi net and WAN DHCP option 60
  • Stateful ACL: Supported
  • QoS: Supported
  • Bridge VLAN: Supported
  • mDNS Repeater: Supported
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and pass through
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
Advanced Features
  • Routing: Static routing and policy routing, RIP and OSPF
  • Bandwidth Control: IP based bandwidth control
  • Load Balance: Intelligent load balancing, application optimised routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, port forwarding, port triggering, DMZ, ALG, UPnP and NAT disable
  • Session Limit: IP based session limit
  • SD WAN: Supported in controller mode
VPN
  • IPsec VPN: Up to 20 tunnels with LAN to LAN and client to LAN support
  • PPTP VPN: Server and client support with up to 16 tunnels
  • L2TP VPN: Server and client support with up to 16 tunnels
  • OpenVPN: Server and client support with up to 50 tunnels
  • WireGuard VPN: Up to 20 tunnels
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada Cloud, Hardware and Software Controller support
  • Zero Touch Provisioning supported
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and scheduled reboot
  • Automatic discovery, unified configuration, monitoring and alerts
Others
  • Certifications: CE, FCC, RoHS
  • Package contents: ER605 gateway, power adapter, RJ45 Ethernet cable and installation guide
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

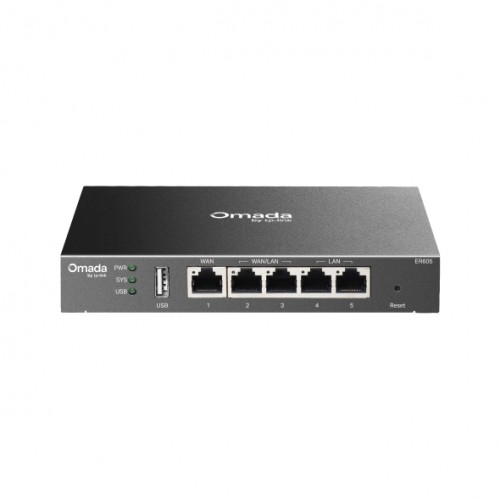

Omada Gigabit VPN Gateway

  • Brand: TP-Link
  • Product Code: ER605
  • Availability:  In Stock
