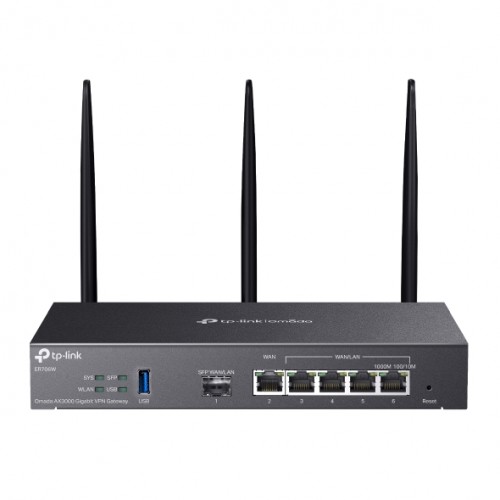

New Omada Gigabit AX3000 WiFi 6 VPN Gateway

The Omada ER706W is a compact business‑class VPN router designed for organisations that need reliable wired routing, integrated Wi‑Fi, and centralised management in a single device. Ideal for small offices, branch locations, and professional environments, it simplifies network deployment while delivering secure and stable connectivity.

Equipped with multiple Gigabit Ethernet ports and built‑in wireless capability, the ER706W provides both high‑speed wired networking and secure Wi‑Fi access without the need for a separate access point. Advanced routing features such as load balancing, QoS, and comprehensive VPN support enable secure site‑to‑site connections and remote access for distributed teams.

Fully integrated with the Omada SDN platform, the ER706W supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features including firewall policies and access control help protect network traffic, making the ER706W a practical all‑in‑one gateway solution for businesses that want secure connectivity with simplified management and integrated wireless networking.


Features

  • AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • 1 Gigabit SFP slot and 5 Gigabit RJ45 ports
  • 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 5 WAN ports raises the utilisation rate of multi-line broadband
  • Mesh with Omada access points to extend WiFi without extra cabling and switch
  • Centralised cloud management via the web or the Omada app
  • High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
  • DoS defence, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security


Kit Contents

  • ER706W
  • Power Adapter
  • Installation Guide

Technical


CategorySpecification
Security
  • DPI: Application control via deep packet inspection with updated application library
  • IDS and IPS: Signature based intrusion detection and prevention
  • Access Control: Source and destination IP based access control
  • DNS Proxy: DNSSEC, DoH, DoT and DNS override
  • Filtering: Web group filtering, URL filtering and web security
  • ARP Inspection: GARP packet sending, ARP scanning and IP MAC binding
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking and WAN ping blocking
Hardware Features
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SNMP, LLDP and 802.11 a b g n ac ax
  • Interfaces: 1 × Gigabit SFP WAN or LAN port, 1 × Gigabit WAN port, 4 × Gigabit LAN or WAN ports, 1 × USB 3.0 supporting LTE dongle and storage
  • Buttons: Reset button
  • Power Supply: 12 V DC / 2 A power adapter
  • Wi‑Fi Frequency and Speed: 2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps
  • Flash: 128 MB NAND
  • DRAM: 512 MB DDR4
  • LED Indicators: System, WLAN, SFP, USB, WAN and LAN status
  • Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Antenna: Two 2.4 GHz 3 dBi and three 5 GHz 4.5 dBi detachable dual band antennas
  • Surge Protection: 4 kV
  • Mounting: Desktop or wall mounting
  • Max Power Consumption: EU up to 16.8 W with USB connected, US up to 22.7 W with USB connected
Performance
  • Concurrent Sessions: 150,000
  • New Sessions per Second: 5,100
  • NAT Throughput: Up to 946 Mbps depending on connection type
  • Packet Forwarding Rate: Up to 1,453,489 pps for 66 byte packets
  • IPsec VPN Throughput: Up to 658.4 Mbps depending on encryption
  • GRE Throughput: 624.2 Mbps unencrypted, 301.5 Mbps encrypted
  • WireGuard VPN Throughput: 393.5 Mbps
  • OpenVPN Throughput: 129.3 Mbps
  • L2TP VPN Throughput: 1034.0 Mbps unencrypted, 570.0 Mbps encrypted
  • PPTP VPN Throughput: 1165.0 Mbps unencrypted, 209.0 Mbps encrypted
  • DPI Throughput: TCP 933 Mbps, UDP 927 Mbps
  • IPS Throughput: TCP 229 Mbps, UDP 188 Mbps
  • SSL VPN Throughput: 126.7 Mbps
Wireless Features
  • Advanced Wireless: Seamless roaming, mesh support, OFDMA, beamforming and MU MIMO
  • Encryption: WPA, WPA2 and WPA3 personal and enterprise
  • Guest Network: Supported
Basic Functions
  • LAN DNS: Supported
  • WAN Types: Static IP, dynamic IP, PPPoE with MRU support, PPTP and L2TP
  • MAC Clone: WAN MAC address modification
  • DHCP: Server, DHCPv6 PD server, options customisation, address reservation, multi IP and multi net
  • Stateful ACL: Supported
  • QoS: Supported
  • Bridge VLAN: Supported
  • mDNS Repeater: Supported
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and pass through
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
Advanced Features
  • Access Control: IP, port, protocol and domain name filtering
  • Routing: Static routing and policy routing, RIP and OSPF
  • Bandwidth Control: IP based bandwidth control
  • Load Balance: Intelligent load balancing, application routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, port forwarding, port triggering, DMZ, ALG and UPnP
  • Session Limit: IP based session limit
  • SD WAN: Supported in controller mode
VPN
  • SSL VPN: Up to 50 tunnels
  • IPsec VPN: Up to 100 tunnels with LAN to LAN and client to LAN support
  • PPTP VPN: Server and client support with up to 50 tunnels
  • L2TP VPN: Server and client support with up to 50 tunnels
  • OpenVPN: Server and client support with up to 55 tunnels
  • WireGuard VPN: Up to 20 tunnels
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada cloud, hardware and software controller support
  • Zero touch provisioning supported
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and scheduled reboot
  • Automatic discovery, unified configuration, monitoring and alerts
Others
  • Certifications: CE, FCC, RoHS
  • Package contents: ER706W, power adapter and installation guide
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada Gigabit AX3000 WiFi 6 VPN Gateway

  • Brand: TP-Link
  • Product Code: ER706W
  • Availability:  In Stock
