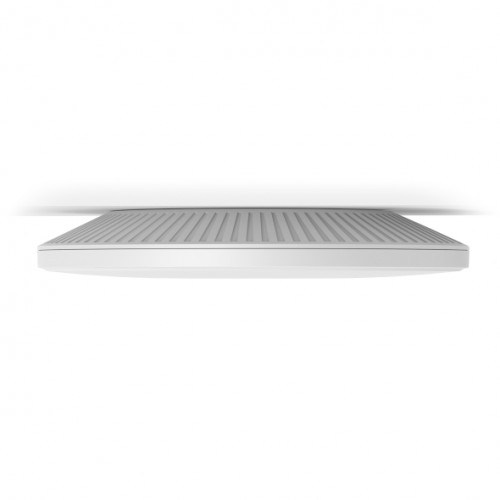

The Omada EAP772 is a compact, high‑performance Wi‑Fi 7 access point designed for business environments that need fast wireless speeds, low latency, and reliable coverage without moving into ultra‑high‑end hardware. It is ideal for offices, education, retail, and hospitality deployments where efficient, future‑ready wireless performance is required.
Built on Wi‑Fi 7 technology, the EAP772 delivers improved throughput, reduced latency, and better spectrum efficiency compared to previous generations. Features such as Multi‑Link Operation and enhanced channel utilisation help maintain smooth performance in busy environments with multiple connected devices. Multi‑gigabit uplink support ensures the access point can take full advantage of high‑speed wired infrastructure.
Fully integrated with the Omada SDN platform, the EAP772 supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security, seamless roaming, and intelligent RF optimisation help provide a stable and secure wireless experience, making the EAP772 a practical Wi‑Fi 7 solution for scalable, centrally managed business networks.
Features
- BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).
- A clear 6 GHz band brings cleaner and wider band resources.
- 2.5G Port unlocks the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.
- Centralised management, mesh, and AI roaming.
Kit Contents
- EAP772
- Installation Guide
- Ceiling/Wall Mounting Kit
- Power Adapter NOT included
Manuals & Datasheet
Technical
| Category | Specification |
|---|
| Hardware Features | - Interface: 1 × 2.5G Ethernet port
- Button: Reset
- Power Supply: 802.3at PoE or 12 V DC / 2.5 A
- Max Power Consumption: 24.05 W via PoE, 20.92 W via DC
- Dimensions (W × D × H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna: 2 × 4.0 dBi at 2.4 GHz, 2 × 5.0 dBi at 5 GHz, 2 × 5.0 dBi at 6 GHz
- Bluetooth: Internal antenna, Bluetooth 5.2, 4.0 dBi
- Mounting: Ceiling or wall mounting with kits included
|
| Wireless Features | - Coverage: Up to 140 m² (1500 ft²)
- Concurrent Clients: 380 or more
- Wireless Standards: IEEE 802.11 a, b, g, n, ac, ax and be
- Frequency Bands: 2.4 GHz, 5 GHz and 6 GHz
- Wireless Speed: 574 Mbps at 2.4 GHz, 2880 Mbps at 5 GHz, 5760 Mbps at 6 GHz
- Advanced Wireless: MLO, 4K QAM, MU MIMO, 320 MHz channel bandwidth, OFDMA and BSS colouring
- Roaming and Optimisation: Seamless roaming with 802.11k, v and r, mesh support, load balance, band steering, beamforming and airtime fairness
- SSID Support: Up to 24 SSIDs, 8 per band
- Scheduling: Wireless schedule and reboot schedule
- QoS: WMM QoS with rate limiting
- Authentication: RADIUS accounting and MAC authentication
|
| Wireless Security | - Captive portal authentication
- Access control and client isolation
- MAC filtering supporting up to 4000 entries
- VLAN support and rogue AP detection
- Encryption: WPA, WPA2 and WPA3 personal and enterprise
|
| Transmission Power | - 2.4 GHz: Below 20 dBm EIRP
- 5 GHz: Below 23 dBm EIRP for bands 1 and 2, below 28 dBm EIRP for band 3
- 6 GHz: Below 23 dBm EIRP
|
| Management | - Omada App support
- Centralised management via Omada cloud based controller, hardware controller or software controller
- Cloud access requires an Omada controller
- Email alerts and LED on or off control
- Management MAC access control
- SNMP v1, v2c and v3
- Local and remote syslog support
- Web based management interface
|
| Others | - Certifications: CE, FCC, RoHS and IC
- Package contents: EAP772, installation guide and ceiling or wall mounting kit
- Power adapter not included
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non condensing
- Storage humidity: 5–90% RH non condensing
|
