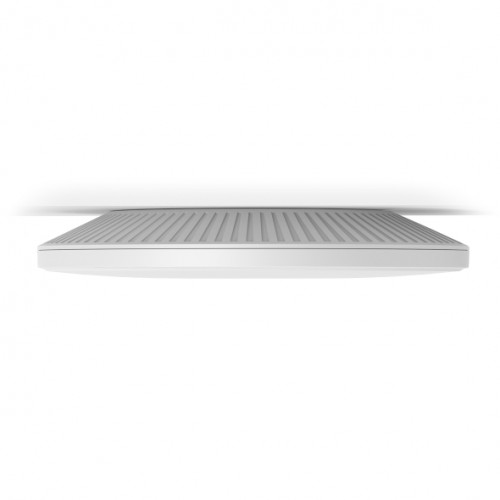

The Omada EAP783 is a high‑performance ceiling‑mount Wi‑Fi 7 access point designed for modern business networks that require fast speeds, low latency, and reliable connectivity across dense client environments. It is well suited for offices, education, hospitality, retail, and enterprise spaces where wireless performance and capacity are critical.
Powered by Wi‑Fi 7 technology, the EAP783 delivers significantly improved throughput, efficiency, and responsiveness compared to previous generations. Advanced features such as Multi‑Link Operation and wider channel support help ensure smooth performance for high‑bandwidth applications, even when many devices are connected simultaneously. Multi‑gigabit uplink support allows the access point to take full advantage of high‑speed wired backhaul infrastructure.
Fully integrated with the Omada SDN platform, the EAP783 supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security, seamless roaming, and intelligent RF optimisation help maintain a stable and secure wireless experience across the network, making the EAP783 a future‑ready solution for scalable, centrally managed Wi‑Fi deployments.
Features
- BE19000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 5760 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz).
- A clear 6 GHz band brings cleaner and wider band resources.
- 2× 10G ports unlock the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.
- Centralised management, mesh, and Seamless roaming.
Kit Contents
- EAP783
- Installation Guide

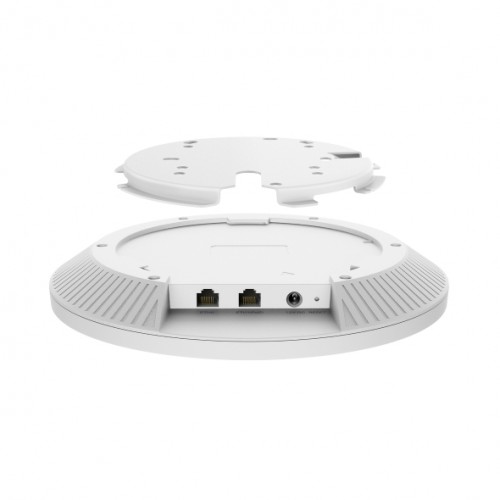

- Ceiling/Wall Mounting Kits
Manuals & Datasheet
Technical
| Category | Specification |
|---|
| Hardware Features | - Interfaces: 2 × 10G Ethernet ports supporting up to 20 Gbps aggregate throughput
- Button: Reset
- Power Supply: 802.3bt PoE++ or 12 V DC power input
- Max Power Consumption: 39 W
- Dimensions (W × D × H): 11.0 × 11.0 × 1.8 in (280 × 280 × 46.5 mm)
- Antenna: Internal omni directional antennas with 4 × 4 dBi at 2.4 GHz, 4 × 5.5 dBi at 5 GHz and 4 × 5 dBi at 6 GHz
- Bluetooth: Version 5.2
- Mounting: Ceiling or wall mounting with kits included
|
| Wireless Features | - Coverage: Up to 200 square metres (2150 square feet)
- Concurrent Clients: 760 or more
- Wireless Standards: IEEE 802.11 a, b, g, n, ac, ax and be
- Frequency Bands: 2.4 GHz, 5 GHz and 6 GHz
- Wireless Speed: Up to 1376 Mbps at 2.4 GHz, up to 5760 Mbps at 5 GHz, up to 11520 Mbps at 6 GHz
- Advanced Wireless: MLO, 4K QAM, 4 × 4 MU MIMO uplink and downlink, 320 MHz channel bandwidth, OFDMA and BSS colouring
- Optimisation Features: Seamless roaming with 802.11k, v and r, mesh support, load balance, band steering, beamforming and airtime fairness
- SSID Support: Multiple SSIDs per band
- Scheduling: Wireless and reboot scheduling
- QoS: WMM with rate limiting support
|
| Wireless Security | - Authentication: PPSK, captive portal authentication and MAC based authentication
- Security Controls: VLAN support, access control, rogue AP detection and client isolation
- MAC Filtering: Supports up to 4000 MAC addresses
- Encryption: WPA, WPA2 and WPA3 personal and enterprise, plus OWE
|
| Transmission Power | - 2.4 GHz: Below 20 dBm EIRP
- 5 GHz: Below 23 dBm EIRP for bands 1 and 2, below 30 dBm EIRP for band 3
- 6 GHz: Below 23 dBm EIRP
|
| Management | - Omada App support
- Centralised management via Omada hardware controllers, software controller or cloud based controller
- Cloud Access: Requires an Omada controller
- Backup and restore support
- Firmware updates via web interface
- NTP support
- Email alerts and LED on or off control
- Management MAC access control
- SNMP v1, v2c and v3
- SSH access
- Web based management interface
|
| General | |
| Others | - Certifications: CE, FCC, RoHS and IC
- Package contents: EAP783, installation guide and ceiling or wall mounting kits
- Power adapter not included
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90 percent non condensing
- Storage humidity: 5–90 percent non condensing
|
