The Omada EAP690E HD is a high‑density Wi‑Fi 6E access point designed for enterprise environments that demand ultra‑fast speeds, low latency, and reliable connectivity across large numbers of concurrent devices. Ideal for offices, campuses, lecture halls, conference venues, and public spaces, it delivers next‑generation wireless performance in demanding network conditions.
Utilising Wi‑Fi 6E technology, the EAP690E HD expands into the 6 GHz band to provide additional spectrum, reduced interference, and improved performance for high‑bandwidth applications. Advanced features such as OFDMA, MU‑MIMO, and intelligent load balancing help ensure consistent throughput and smooth connectivity, even in extremely dense user environments. High‑speed uplink connectivity allows the access point to fully utilise multi‑gigabit wired backhaul infrastructure.
Fully integrated with the Omada SDN platform, the EAP690E HD supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security, seamless roaming, and intelligent RF optimisation help maintain a stable and secure wireless experience across the network. The EAP690E HD is an ideal solution for organisations that need scalable, future‑ready Wi‑Fi performance with centralised control.
Features
- Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps WiFi speeds.
- Improves WiFi performance in dense environments with OFDMA, MU-MIMO, and BSS Colouring.
- Double the data at peak transmission times on a single stream with HE160.
- Professional antennas with high-power amplifiers provide strong wireless coverage in high-density environments.
- Supports Power over Ethernet (802.3bt) for convenient deployment and installation.
- Supports Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and the Omada app offer ultra convenience and easy management.
Kit Contents
- EAP690E HD

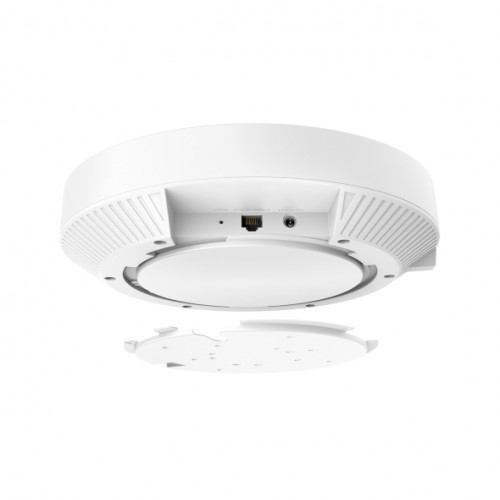

- Ceiling/wall mounting kit
- Installation guide
Technical
| HARDWARE FEATURES | |
| Interface | 1x 10Gbps Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt PoE or 12V/4.5A DC |
| Max. Power Consumption | Support Smart Power Consumption Management EU: 44.9 W (802.3bt, full functionality) 40.6 W (12V/4.5A, full functionality) 25.5 W (802.3at, 5GHz-2 and 6 GHz off) 12.95 W (802.3af, radio off, only main chip and LAN working) US: 50.5 W (802.3bt, full functionality) 44.2 W (12V/4.5A, full functionality) 25.5 W (802.3at, 5GHz-2 and 6 GHz off) 12.95 W (802.3af, radio off, only main chip and LAN working) |
| Dimensions (W × D × H) | 11 × 11 × 2.3 in (280 × 280 × 59.1 mm) |
| Antenna | 2.4 GHz: 4 × 4.0 dBi 5 GHz-1: 4 × 5.0 dBi (Smart Antennas) 5 GHz-2: 4 × 5.5 dBi (Smart Antennas) 6 GHz: 4 × 5.0 dBi |
| Bluetooth | Yes |
| Mounting | Ceiling / Wall mounting (kits included) |
| WIRELESS FEATURES | |
| Coverage | 200 m² (2150 ft²) |
| Concurrent Clients | 2,040+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | 6 GHz: 4804 Mbps 5 GHz-1: 2402 Mbps 5 GHz-2: 2402 Mbps 2.4 GHz: 1148 Mbps |
| Wireless Functions | MIMO (2.4 GHz: 4x4 SU-MIMO and MU-MIMO DL/UL; 5 GHz: 4x4 SU-MIMO and MU-MIMO DL/UL; 6 GHz: 4x4 SU-MIMO and MU-MIMO DL/UL) Seamless Roaming (802.11k/v) |
| Wireless Security | WPA Personal and Enterprise, WPA2 Personal and Enterprise, WPA3 Personal and Enterprise, OWE |
| Transmission Power | CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz-1, EIRP) <30 dBm (5 GHz-2, EIRP) <23 dBm (6 GHz, EIRP) FCC: <28 dBm (2.4 GHz) <28 dBm (5 GHz-1) <28 dBm (5 GHz-2) <25 dBm (6 GHz) |
| Multi-SSID | 32 (8 per band) |
| MANAGEMENT FEATURES | |
| SNMP | v1, v2c, v3 |
| OTHERS | |
| Certification | CE, FCC, RoHS, IC |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
