The Omada EAP683 UR is a high‑performance Wi‑Fi 6 access point designed for business environments that require strong wireless capacity, efficient client handling, and reliable indoor coverage. Well suited for offices, education, retail, hospitality, and shared workspaces, it delivers consistent performance in busy, device‑dense networks.
Built on Wi‑Fi 6 technology, the EAP683 UR provides improved throughput, lower latency, and greater efficiency compared to previous wireless generations. Technologies such as OFDMA and MU‑MIMO help optimise bandwidth usage, ensuring smooth connectivity for multiple users and bandwidth‑intensive applications. High‑speed uplink support allows the access point to take full advantage of modern wired network infrastructure.
Fully integrated with the Omada SDN platform, the EAP683 UR supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security, seamless roaming, and intelligent RF optimisation help deliver a stable and secure wireless experience, making the EAP683 UR a reliable solution for scalable, centrally managed business Wi‑Fi deployments.
Features
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz.
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN platform for centralised management.
- Omada Mesh, Seamless Roaming, and more.
- Supports both 802.3at PoE+ and DC (adapter not included).
Kit Contents
- EAP683 UR
- Ceiling/Wall Mounting Kits
- Installation Guide
Manuals & Datasheet
Technical
| Category | Specification |
|---|

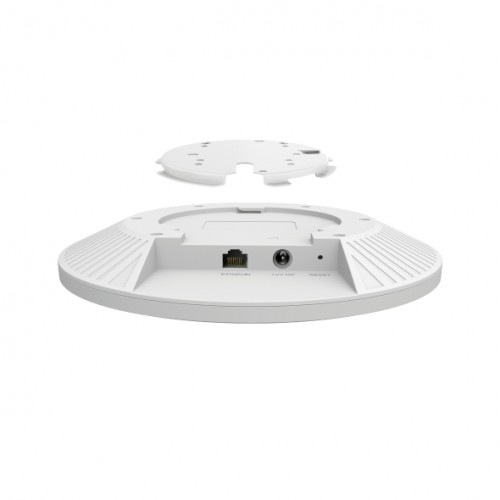

| Hardware Features | - Interface: 1 × 2.5 Gigabit PoE+ Ethernet port
- Button: Reset
- Power Supply: 802.3at PoE or 12 V DC / 2 A, power adapter not included
- Max Power Consumption: 20.43 W (EU), 23.69 W (US)
- Dimensions (W × D × H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna: Internal omni directional antennas with 4 × 4 dBi at 2.4 GHz and 4 × 5 dBi at 5 GHz
- Bluetooth: Version 5.2
- Mounting: Ceiling or wall mounting with kits included
|
| Wireless Features | - Coverage: Up to 185 m² (2000 ft²)
- Concurrent Clients: 510 or more
- Wireless Standards: IEEE 802.11 a, b, g, n, ac and ax
- Frequency Bands: 2.4 GHz and 5 GHz
- Wireless Speed: Up to 1148 Mbps at 2.4 GHz, up to 4804 Mbps at 5 GHz
- Advanced Wireless: 1024 QAM, OFDMA, 4 × 4 MU MIMO uplink and downlink, 160 MHz channel bandwidth
- Roaming and Optimisation: Seamless roaming with 802.11k, v and r, Omada mesh support, load balance, band steering, beamforming and airtime fairness
- SSID Support: Up to 16 SSIDs, 8 per band
- Scheduling: Wireless and reboot scheduling
- QoS: WMM QoS with rate limiting
|
| Wireless Security | - Captive portal authentication
- Access control and wireless MAC address filtering
- Client isolation and SSID to VLAN mapping
- Rogue AP detection
- 802.1X authentication support
- Encryption: WPA, WPA2 and WPA3 personal and enterprise
|
| Transmission Power | - CE region: Below 20 dBm EIRP at 2.4 GHz, below 23 dBm EIRP at 5 GHz bands 1 and 2, below 28 dBm EIRP at 5 GHz band 3
- FCC region: Below 26 dBm at 2.4 GHz and 5 GHz
|
| Management | - Omada App support
- Centralised management via Omada hardware controllers, software controller or cloud based controller
- Cloud access requires an Omada controller
- Email alerts and LED on or off control
- Management MAC access control
- SNMP v1, v2c and v3
- Local and remote syslog support
- SSH support
- Web based management via HTTP and HTTPS
- L3 and multi site management
- Management VLAN support
- Zero touch provisioning via Omada Cloud controller
|
| Others | - Certifications: CE, FCC and RoHS
- Package contents: EAP683 UR, ceiling and wall mounting kits and installation guide
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH non condensing
- Storage humidity: 5–90% RH non condensing
|
