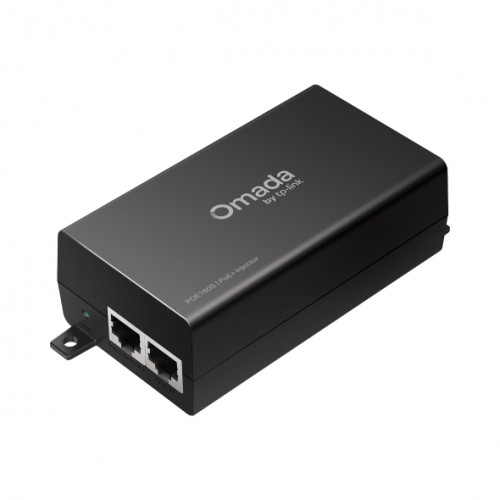

The Omada POE160S is a PoE+ injector that delivers both power and data through a single Ethernet cable, making network expansion simple and cost‑effective. It features two Gigabit ports for fast transmission and supports IEEE 802.3af/at standards, supplying up to 30 W for devices such as access points, IP cameras, and IP phones.
With auto‑sensing power output, the injector automatically provides the correct wattage for each connected device, reducing complexity and infrastructure costs. Its plug‑and‑play setup, integrated power supply, and flexible desktop or wall‑mounting design make it suitable for a wide range of installations.
Ideal for extending networks into areas without convenient power outlets, the POE160S is well‑suited for expanding WiFi coverage, powering surveillance equipment, or supporting remote VoIP devices.
Features
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Kit Contents
- POE160S
- Installation Guide
- Power Cord
- Wall Mounting Kits
Technical
| General | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| Interface | 1× 10/100/1000Mbps RJ45 data-in port 1× 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m) |
| Max. Power Consumption | Input: 100 to 240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (maximum 30 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| LED | Power / PoE |
| Dimensions (W x D x H) | 4.9×2.3×1.4 in (125×59.4×36.8 mm) |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Content | POE160S Installation Guide Power Cord Wall Mounting Kits |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90% RH non-condensing Storage Humidity: 5% to 90% RH non-condensing |
