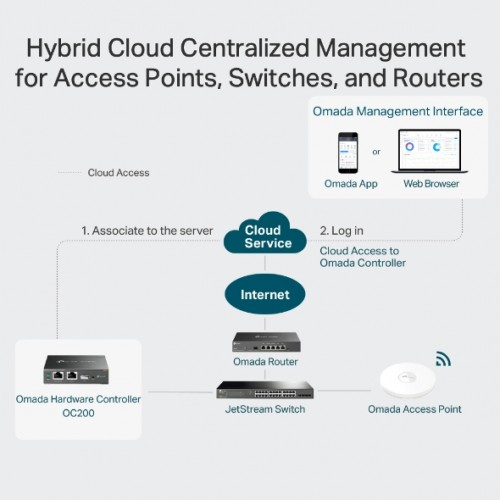

The TP-Link Omada OC200 is a dedicated on-premises controller that brings centralised management to Omada access points, switches, and routers within the Omada SDN platform. It allows IT teams to oversee up to 100 access points, 10 routers, and 20 switches through a single, unified interface. Helping simplify network setup, ongoing monitoring, and overall maintenance.
Features
- Supports up to 100 Omada access points, 10 Omada routers, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs
- Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- Locally monitor and manage devices with the ultimate security and stability.

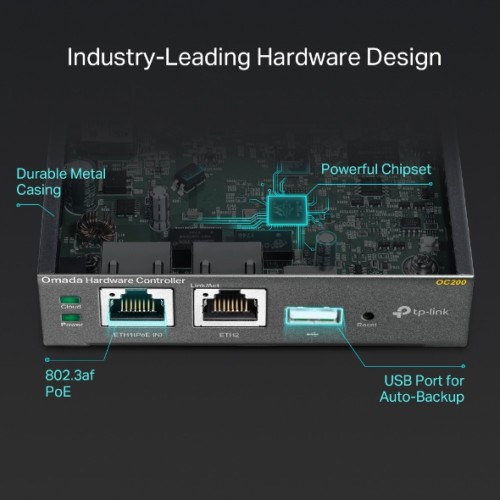

- A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
- 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
- The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
- Helps IT admins quickly see and troubleshoot connections at a glance.
- Wi-Fi heatmap simulator, visualisable network report, and batch & multi-site management benefit network maintenance.
Technical
| Interface | • 2× 10/100 Mbps Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port |
|---|---|
| Power Supply | 802.3af/at PoE or Micro USB (DC 5V / Minimum 1A) |
| Dimensions (W × D × H) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Omada App | Yes |
| Centralised Management | • 100 Omada access points • 10 Omada routers • A maximum of 20 Omada switches† • A maximum of 2 certain DeltaStream GPON OLTs† |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| Certification | CE, FCC, RoHS |
| Package Content | • Omada Hardware Controller OC200 • Quick Installation Guide • Ethernet Cable |
| System Requirements | Microsoft Windows 10, 8, 7, Vista, XP or macOS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Kit Contents
- 1x Omada Hardware Controller OC200
- 1x User Guide
- Ethernet Cable
