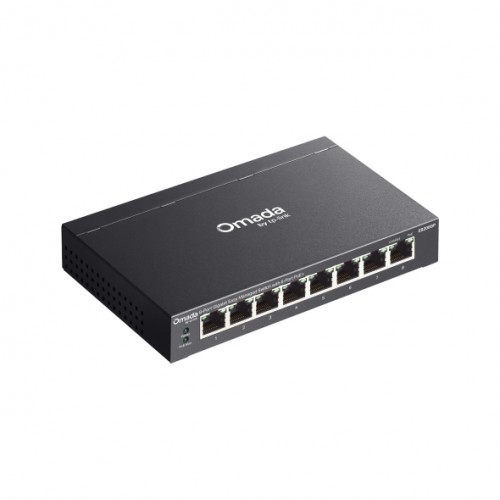

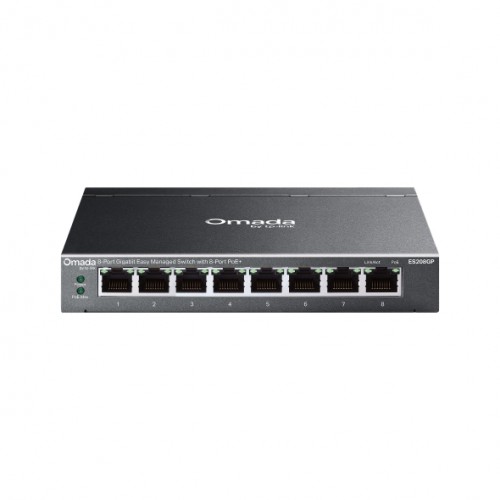

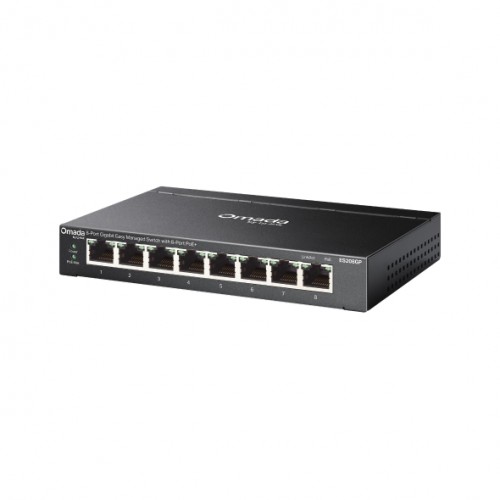

The Omada ES208GP is an 8 Port Gigabit Easy Managed Switch designed for small businesses, surveillance networks, and cloud managed environments. It provides eight Gigabit RJ45 ports with full 802.3af/at PoE+ support, offering flexible connectivity for IP cameras, access points, and other PoE powered devices. With a 64 watt PoE budget and up to 30 watts available per port, the ES208GP is well suited for powering a wide range of high demand equipment.
The switch is quick to set up with simple plug and play installation, giving you immediate network connectivity. If you want to go further, you can use the Omada Cloud platform through a web browser or mobile app to adjust settings with ease. Omada Cloud Essentials brings all your devices together in one place, offering centralised, hardware‑free management that makes monitoring, setup, and multi site expansion straightforward and stress free.
Features
- 8× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
- 64W Power Budget, with up to 30W for each PoE port
- Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Up to 820ft PoE, Remote Camera Reboot, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

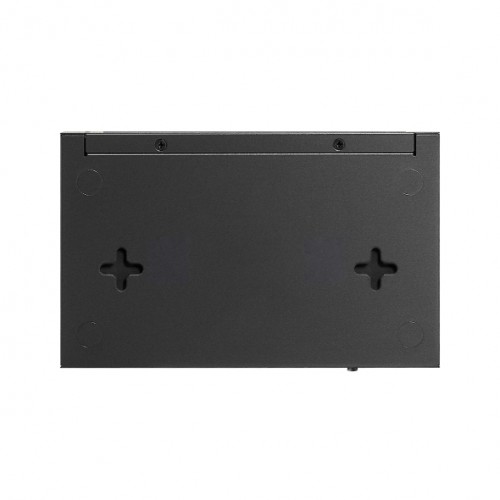

- Durable metal casing and desktop/wall mounting design
Kit Contents
- 1x ES208GP
- 1x Power Adapter
- 1x Power Cord
- 1x Installation Guide
- 4x Rubber Feet
Technical
| Interface | 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 64W available for all PoE+ ports, 30W max per port • Remote Camera Reboot • Up to 820ft (250m) PoE transmission distance |
| Dimensions (W × D × H) | 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) |
| Surge Protection | Service port: ±6 kV |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.904 Mpps |
| MAC Address Table | 8K |
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode: WRR • Queue Weight Config • Bandwidth Control: Port-Based Rating Limit • Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation: Static, up to 2 groups, up to 4 ports per group • Loopback Detection • Flow Control: 802.3x • Mirroring: Port, One-to-One, Many-to-One, Ingress/Egress/Both • Port Statistics: Mirror Status, Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping: v1/v2/v3 • Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN • Max 32 VLAN Groups • 4K VID |
| Transmission Method | Store and Forward |
| Omada App | Yes. Requires Omada Hardware, Cloud-Based, or Software Controller. |
| Centralised Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires Omada Hardware, Cloud-Based, or Software Controller. |
| Zero-Touch Provisioning | Yes. Requires Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics |
| Certification | FCC, CE, RoHS |
| Package Content | • ES208GP • Power Adapter • Power Cord • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0℃ to 40℃ (32℉ to 104℉) • Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
