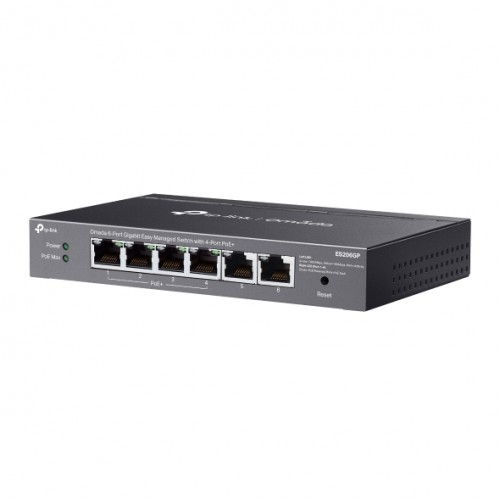

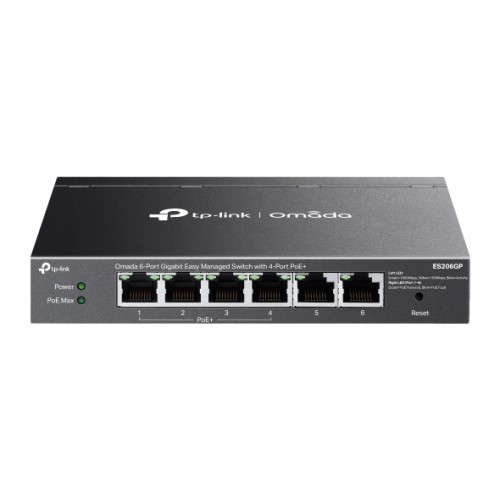

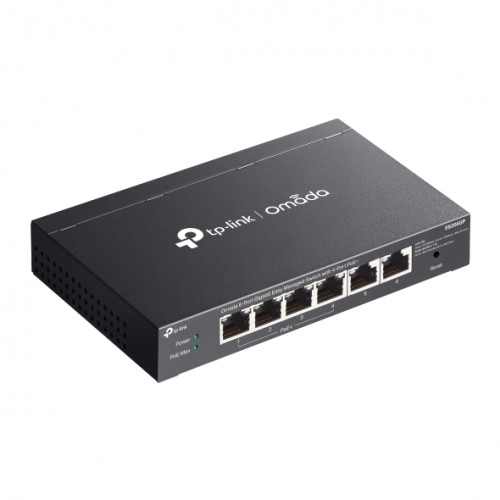

The TP‑Link Omada ES206GP is a 6‑Port Gigabit Easy Managed Switch designed for small businesses, surveillance networks, and streamlined cloud managed deployments. It features 4 PoE+ ports (802.3af/at) and 2 additional Gigabit RJ45 ports, providing flexible connectivity for IP cameras, access points, and other network devices. With a 65 watt PoE power budget, the ES206GP can supply up to 30 W per port, making it suitable for powering high demand PoE devices.
The switch supports plug and play installation, offering instant connectivity while still enabling additional management features through the Omada Cloud platform via a web dashboard or mobile app. Cloud control is fully centralised and free under Omada Cloud Essentials, which does not require a hardware controller.
To enhance reliability in surveillance and business environments, the ES206GP includes PoE Auto Recovery, port isolation, QoS, loop prevention, and PoE transmission distances of up to 250 metres. A fanless metal design provides silent operation and durability, with options for desktop or wall mount installation.
Features
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port
- Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

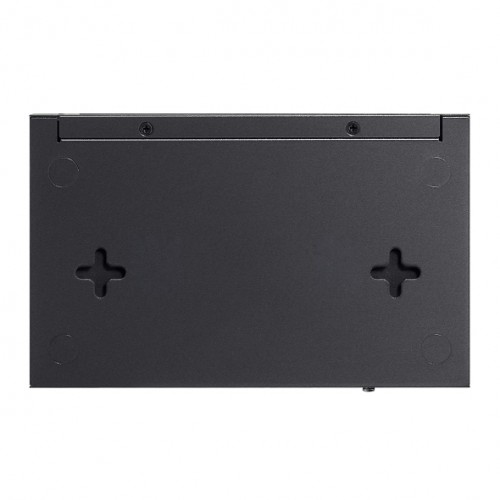

- Durable metal casing and desktop/wall mounting design
Kit Contents
- 1x ES206GP
- 1x Power Adapter
- 1x Power Cord
- 1x Rubber Feet Pack
- 1x Installation Guide
Technical
| Category | Specifications |
|---|---|
| Interface | 6× 10/100/1000 Mbps RJ45 Ports (Ports 1 to 4 support 802.3af PoE and 802.3at PoE+) Auto Negotiation and Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | Desktop Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | AC and DC Adapter (Input 100 to 240 V AC; Output 53.5 V DC at 1.31 A) |
| PoE Ports (RJ45) | Standard 802.3af PoE and 802.3at PoE+ compliant PoE Ports 4 ports PoE Budget 65 W available for all PoE+ ports, 30 W maximum per port Fast PoE and Perpetual PoE PoE Auto Recovery Up to 250 m PoE transmission distance |
| Dimensions (W x D x H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6 kV |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8 K |
| Quality of Service | Port based, 802.1p and DSCP QoS 8 Priority Queues Priority Schedule Mode WRR Queue Weight Configuration Bandwidth Control Port Based Rating Limit Storm Control Multiple Control Modes (kbps and pps) Broadcast, Multicast and Unknown Unicast Control |
| L2 Features | Static Link Aggregation Loop Prevention and Loopback Detection Flow Control 802.3x Port Mirroring One to One, Many to One, Ingress, Egress and Both Port Statistics Mirror Status and Traffic Statistics 802.1ab LLDP |
| L2 Multicast | IGMP Snooping v1, v2 and v3 Fast Leave |
| VLAN | MTU VLAN Port Based VLAN 802.1Q Tag VLAN Maximum 32 VLAN Groups 4K VID |
| Transmission Method | Store and Forward |
| Management | Omada App (requires Omada Hardware Controller, Cloud Based Controller or Software Controller) Centralised Management through Omada Cloud Based, Hardware or Software Controller Cloud Access through Omada Controller Zero Touch Provisioning with Cloud Based Controller Web Based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration |
| Certification | FCC, CE, RoHS |
| Package Content | ES206GP Power Adapter Power Cord Rubber Feet Installation Guide |
| Environment | Operating Temperature minus 5°C to 40°C (23°F to 104°F) Storage Temperature minus 40°C to 70°C (minus 40°F to 158°F) Operating Humidity 10 percent to 90 percent non condensing Storage Humidity 5 percent to 90 percent non condensing |
