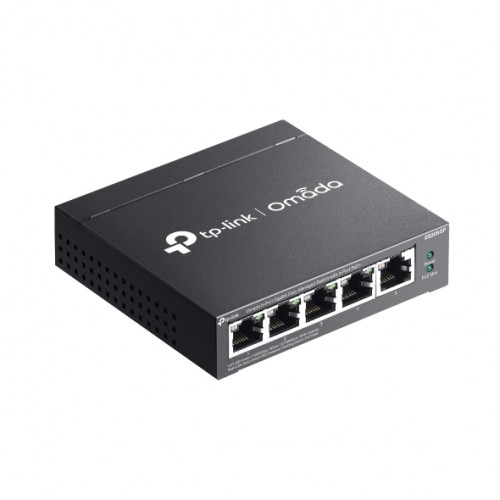

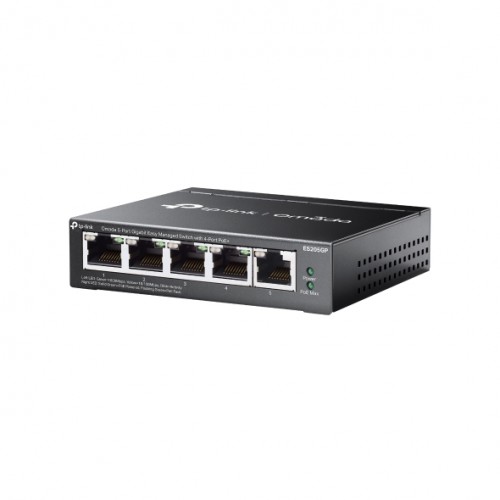

The Omada ES205GP is a 5-port Gigabit switch designed for small networks and surveillance setups. It provides four PoE+ ports with a 65 W budget for powering cameras, access points, and other PoE devices. The switch supports cloud-based management through the Omada controller and offers features like PoE Auto Recovery, 250-meter extended PoE, VLANs, QoS, and loop prevention. Its fanless metal design allows quiet operation with desktop or wall mounting options.
Features

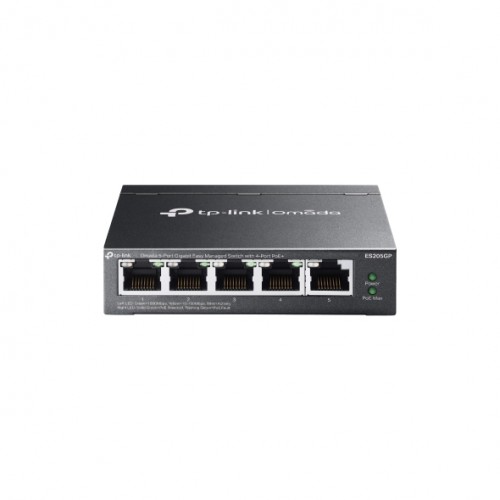

- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port
- Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Technical
| Interface | 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) Auto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | Fanless |

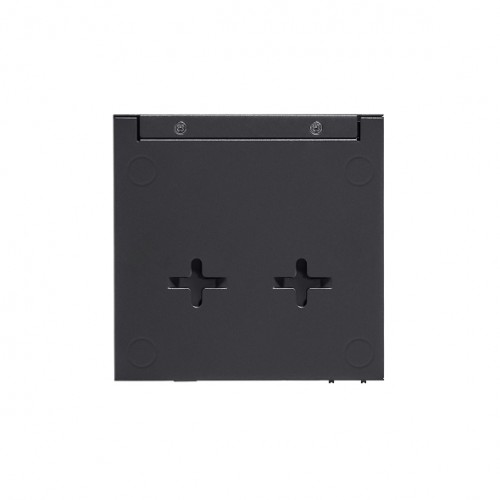

| Installation | Desktop Wall Mount |
| Physical Security Lock | Yes |

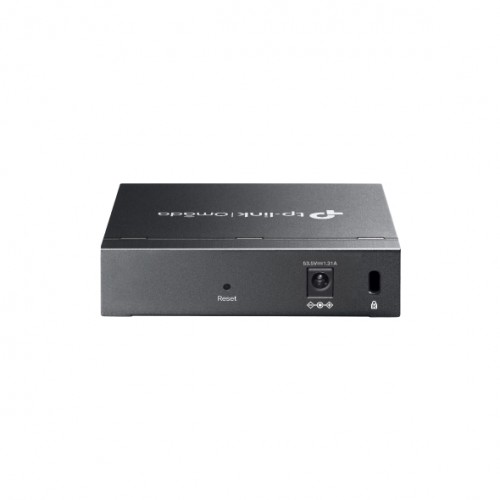

| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A) |
| PoE Ports (RJ45) | Standard: 802.3af PoE and 802.3at PoE+ compliant PoE Ports: 4 ports PoE Budget: 65 W available for all PoE+ ports, 30W max per port PoE Auto Recovery Up to 250m PoE transmission distance |
| Dimensions (W × D × H) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Surge Protection | ±6kV |
| Performance | |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8K |
| Quality of Service | Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode: WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control: Port-Based Rating Limit Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | Static Link Aggregation Loop Prevention / Loopback Detection Flow Control: 802.3x Flow Control Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both Port Statistics: Port Mirror Status, Traffic Statistics 802.1ab LLDP |
| L2 Multicast | IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave |
| VLAN | MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralised Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires Omada Cloud-Based Controller |
| Management Features | Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration |
| Certification | FCC, CE, RoHS |
| Package Content | ES205GP Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0℃ to 40℃ (32℉ to 104℉) Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
Kit Contents
- 1x ES205GP
- 1x Power Adapter
- 1x Installation Guide
- 1x Rubber Feet Pack
