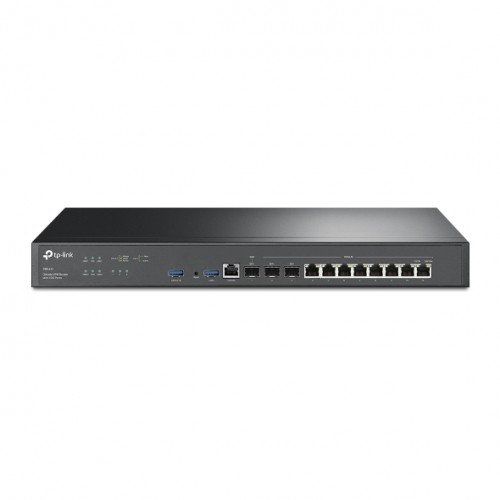

Omada VPN Router with 10G Ports

The Omada ER8411 is a high‑performance enterprise VPN router designed for organisations that require ultra‑fast throughput, secure connectivity, and centralised control. Built to handle demanding network environments, it delivers robust routing and VPN performance for large offices, campuses, and multi‑site deployments.

Equipped with high‑speed 10G SFP+ connectivity alongside multiple Gigabit interfaces, the ER8411 is well suited for high‑bandwidth internet access, data centre uplinks, and aggregation of access‑layer networks. Advanced routing capabilities, load balancing, and extensive VPN support help ensure reliable, secure connectivity between sites and remote users.

Fully integrated with the Omada SDN platform, the ER8411 supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features including firewall policies, access control, and comprehensive VPN options help protect network traffic while maintaining performance. Designed for rack‑mount deployment, the ER8411 is an ideal core or edge router for businesses that need scalable speed, security, and centralised management.


Features

  • Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
  • Cloud access and Omada app for ultra convenience and easy management.
  • 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
  • Fiber and RJ45 WAN ports with load balance raise the utilisation rate of multi-line broadband.
  • Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / WireGuard / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
  • Powerful Firewall, DoS defence, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.

Kit Contents

  • Omada 10G Multi-WAN Security Gateway ER8411
  • Power Cord
  • Rack-Mount Kit
  • Installation Guide

Manuals & Datasheet


Technical


CategorySpecification
Security
  • DPI: Yes
  • IDS and IPS: Yes
  • Access Control: Source and destination IP based access control
  • Filtering: Web group filtering, URL filtering and web security
  • ARP Inspection: GARP packet sending, ARP scanning and IP MAC binding
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking, WAN ping blocking
Hardware Features
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP and WireGuard VPN
  • Interfaces: 2 × 10G SFP+ ports, 1 × 1G SFP WAN or LAN port, 8 × 1G RJ45 WAN or LAN ports, 1 × RJ45 console port, 2 × USB ports for 4G or 3G modem backup
  • Network Media: UTP and STP cabling for 10BASE T, 100BASE TX and 1000BASE T up to 100 m
  • Fan Quantity: 2
  • Buttons: Reset button
  • Power Supply: Redundant dual power supplies, 100–240 V AC, 50 or 60 Hz
  • Flash: 4 MB SPI NOR and 256 MB NAND
  • DRAM: 4 GB DDR4
  • LED Indicators: Power, system, WAN, LAN, USB and fan
  • Dimensions (W × D × H): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Rack mountable
  • Max Power Consumption: 26.36 W with USB connected, 19.12 W without USB
Performance
  • Concurrent Sessions: 2,300,000
  • New Sessions per Second: 20,000
  • NAT Throughput: Up to 9.97 Gbps depending on connection type
  • IPsec VPN Throughput: Up to 3.1 Gbps depending on encryption
  • WireGuard VPN Throughput: 1411 Mbps
  • OpenVPN Throughput: 4424.1 Mbps
  • L2TP VPN Throughput: Up to 10.4 Gbps unencrypted, 3178.5 Mbps encrypted
  • PPTP VPN Throughput: Up to 10.1 Gbps unencrypted, 952 Mbps encrypted
  • DPI Throughput: TCP 5524 Mbps, UDP 3547 Mbps
  • IPS Throughput: TCP 4924 Mbps, UDP 4521 Mbps
  • SSL VPN Throughput: 4486 Mbps
Basic Functions
  • WAN Types: Static IP, dynamic IP, PPPoE, PPTP, L2TP, 6to4 tunnel and pass through
  • Mobile Broadband Backup: 4G and 3G modem via USB
  • MAC Clone: WAN and LAN MAC modification
  • DHCP: Server, client, address reservation, multi net and multi IP interfaces
  • IPv6: WAN connection support
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy
Advanced Features
  • Access Control: IP, port, protocol and domain name filtering
  • Routing: Static routing and policy routing
  • Bandwidth Control: IP and port based with guaranteed and limited bandwidth
  • Load Balance: Intelligent load balancing, application routing and link backup
  • NAT Features: One to one NAT, multi net NAT, port forwarding, DMZ, ALG and UPnP
  • Session Limit: IP based session limiting
  • SD WAN: Supported in controller mode
VPN
  • SSL VPN: Server and client with up to 500 tunnels
  • IPsec VPN: Up to 300 tunnels with multiple encryption and authentication options
  • PPTP VPN: Server and client with up to 300 tunnels
  • L2TP VPN: Server and client with up to 300 tunnels
  • OpenVPN: Server and client with up to 110 tunnels
  • WireGuard VPN: Up to 300 tunnels
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius and external portal support
Management
  • Omada Cloud, Hardware and Software Controller support
  • Zero Touch Provisioning via Omada Cloud Controller
  • Web and remote management
  • SNMP v1, v2c and v3
  • Syslog and diagnostics including ping and traceroute
  • Automatic device discovery, monitoring, alerts and unified configuration
  • Captive portal configuration and reboot scheduling
Others
  • Certifications: CE, FCC, RoHS
  • Package contents: Omada ER8411 security gateway, power cord, rack mount kit and installation guide
  • System compatibility: Windows, macOS, NetWare, UNIX and Linux
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada VPN Router with 10G Ports

  • Brand: TP-Link
  • Product Code: ER8411
  • Availability:  In Stock
