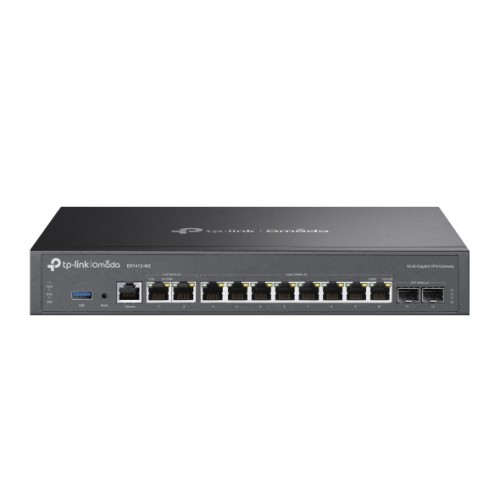

Omada Multi-Gigabit VPN Router

The Omada ER7412‑M2 is a high‑performance business VPN router designed for networks that require multi‑gigabit throughput, secure connectivity, and centralised management. Built to support modern high‑speed internet services and bandwidth‑intensive applications, it is well suited for growing offices, campuses, and multi‑site deployments.

With multi‑gigabit Ethernet connectivity and advanced routing capabilities, the ER7412‑M2 delivers fast, reliable traffic handling for both wired networks and WAN connections. Comprehensive VPN support enables secure site‑to‑site and remote access connectivity, while features such as load balancing and traffic control help maintain consistent performance across busy networks.

Fully integrated with the Omada SDN platform, the ER7412‑M2 supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features including firewall policies and access control help protect network traffic, making the ER7412‑M2 an ideal gateway solution for businesses that need multi‑gig speed, strong security, and simplified network management.


Features

  • Quad-core @2.0GHz CPU
  • 2× 2.5G RJ45 WAN/LAN ports
  • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 11 WAN ports increases the utilisation rate of multi-line broadband
  • High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralised cloud management via the web or the Omada app
  • DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security


Kit Contents

  • ER7412-M2 Router
  • Power Cord
  • Installation Guide
  • Rack-mount Kit
  • RJ45 Console Cord

Technical


CategorySpecification
Security
  • DPI: Deep packet inspection supporting up to 2421 application types
  • IDS and IPS: Intrusion detection and prevention
  • Access Control: Source and destination IP ACL, stateful ACL, IPv4 and IPv6 ACL, location based ACL
  • DNS Proxy: DNSSEC, DoH, DoT and DNS override
  • Filtering: Web group filtering, URL filtering and web security
  • ARP Inspection: GARP packets, ARP scanning and IP MAC binding
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking, WAN ping blocking
Hardware Features
  • CPU: Quad core ARMv8
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE and SNMP
  • Interfaces: 2 × 2.5G RJ45 WAN or LAN ports, 2 × Gigabit SFP WAN or LAN ports, 8 × Gigabit RJ45 WAN or LAN ports, 1 × RJ45 console port, 1 × USB 3.0 port
  • Network Media: UTP and STP cabling for 10BASE T, 100BASE TX, 1000BASE T and 2500BASE T up to 100 m
  • Buttons: Reset button
  • Power Supply: 100–240 V AC, 50 or 60 Hz
  • Flash: 128 MB NAND
  • DRAM: 1 GB DDR4
  • Weight: 1.168 kg
  • Dimensions (W × D × H): 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Desktop or rack mountable
  • Max Power Consumption: 18.5 W with USB connected
Performance
  • Concurrent Sessions: 1,000,000
  • New Sessions per Second: 7,000
  • NAT Throughput: Up to 2.46 Gbps depending on connection type
  • IPsec VPN Throughput: Up to 1133 Mbps depending on encryption
  • GRE Throughput: 1153 Mbps unencrypted, 559.2 Mbps encrypted
  • WireGuard VPN Throughput: 771.6 Mbps
  • OpenVPN Throughput: 266.2 Mbps over UDP
  • L2TP VPN Throughput: 2724.5 Mbps unencrypted, 1018.4 Mbps encrypted
  • PPTP VPN Throughput: 3035 Mbps unencrypted, 534.6 Mbps encrypted
  • DPI Throughput: 2.2 Gbps
  • IDS and IPS Throughput: 573 Mbps
  • SSL VPN Throughput: 263.1 Mbps
Basic Functions
  • LAN DNS: Supported
  • WAN Types: Static IP, dynamic IP, PPPoE, PPTP, L2TP and mobile broadband backup via USB
  • MAC Clone: WAN and LAN MAC modification
  • DHCP: Server, DHCPv6 PD server, options customisation, address reservation, multi IP and multi net
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and passthrough
  • VLAN: 802.1Q VLAN and bridge VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
  • mDNS Repeater: Supported
Advanced Features
  • Routing: Static routing, policy routing, RIP and OSPF in standalone mode
  • Bandwidth Control: IP and port based bandwidth control
  • Load Balance: Intelligent load balancing, application routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, virtual server, port triggering, DMZ, ALG and UPnP
  • Session Limit: IP based session limit
  • SD WAN: Supported in controller mode
VPN
  • SSL VPN: Up to 80 tunnels
  • IPsec VPN: Up to 150 tunnels with LAN to LAN and client to LAN support
  • PPTP VPN: Server and client support with up to 150 tunnels
  • L2TP VPN: Server and client support with up to 150 tunnels
  • OpenVPN: Server and client support with up to 121 tunnels
  • WireGuard VPN: Up to 20 tunnels
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada Cloud, Hardware and Software Controller support
  • Zero Touch Provisioning via Omada Cloud Controller
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and NTP synchronisation
  • Automatic discovery, batch configuration, firmware upgrade, monitoring and alerts
Others
  • Certifications: CE, FCC
  • Package contents: ER7412 M2 gateway, power cord, rack mount kit, RJ45 console cable and installation guide
  • System compatibility: Windows, macOS, NetWare, UNIX and Linux
  • Operating temperature: 0–45 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada Multi-Gigabit VPN Router

  • Brand: TP-Link
  • Product Code: ER7412-M2
  • Availability:  In Stock
