Omada Multi-Gigabit VPN Gateway

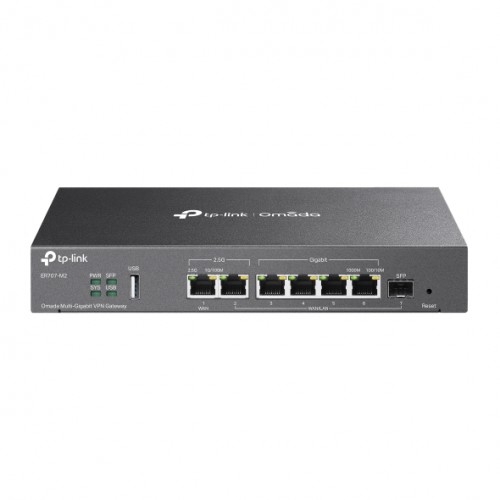

The Omada ER707‑M2 is a compact, high‑performance VPN router designed for small to medium business networks that need multi‑gigabit speeds, strong security, and centralised management. Built to support high‑speed broadband connections and growing network demands, it is ideal for offices, branches, and professional environments.

Featuring multi‑gigabit Ethernet connectivity, the ER707‑M2 delivers fast and reliable routing performance for bandwidth‑intensive applications. Advanced features such as load balancing and comprehensive VPN support enable secure site‑to‑site and remote access connectivity, helping businesses maintain stable and protected network links.

Fully integrated with the Omada SDN platform, the ER707‑M2 supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features including firewall policies and access control help safeguard network traffic, making the ER707‑M2 a practical gateway solution for organisations that need multi‑gig speed, security, and simplified network management in a compact form factor.


Features

  • 2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)
  • 5× Gigabit WAN/LAN ports (1× SFP, 4× RJ45)
  • Load Balancing on up to 6 WAN ports‡ increases the utilisation rate of multi-line broadband
  • 1× USB port (Supports USB storage, and LTE backup with LTE dongle)
  • High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralised cloud management via the web or the Omada app
  • DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
  • Rack-mount, Desktop, or Wall Mount


Kit Contents

  • ER707-M2
  • Power Adapter
  • Installation Guide
  • Rack-mount Kit


Manuals & Datasheet


Technical


CategorySpecification
Security
  • DPI: Deep packet inspection supporting up to 2421 application types
  • IDS and IPS: Signature based intrusion detection and prevention
  • Access Control: Source and destination IP based access control
  • DNS Proxy: DNSSEC, DoH, DoT and DNS override
  • Filtering: Web group filtering, URL filtering and web security
  • ARP Inspection: GARP packet sending, ARP scanning and IP MAC binding
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking, WAN ping blocking
Hardware Features
  • CPU: Dual core ARMv8
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.3bz, TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP and WireGuard
  • Interfaces: 1 × 2.5G RJ45 WAN port, 1 × 2.5G RJ45 WAN or LAN port, 1 × Gigabit SFP WAN or LAN port, 4 × Gigabit RJ45 WAN or LAN ports, 1 × USB 2.0 port
  • Network Media: UTP and STP cabling for 10BASE T, 100BASE TX, 1000BASE T and 2500BASE T up to 100 m
  • Fan Quantity: Fanless
  • Buttons: Reset button
  • Power Supply: 12 V DC / 1.5 A adapter
  • Flash: 128 MB NAND
  • DRAM: 1 GB DDR4
  • Weight: 0.886 kg
  • Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Rack mount, desktop or wall mount
  • Max Power Consumption: 14.2 W with USB connected, 7.1 W without USB
Performance
  • Concurrent Sessions: 500,000
  • New Sessions per Second: 6,000
  • NAT Throughput: Up to 2.46 Gbps depending on connection type
  • IPsec VPN Throughput: Up to 673.3 Mbps depending on encryption
  • GRE Throughput: 951 Mbps unencrypted, 609 Mbps encrypted
  • WireGuard VPN Throughput: 343 Mbps
  • OpenVPN Throughput: 135 Mbps
  • L2TP VPN Throughput: 1243.7 Mbps unencrypted, 561.0 Mbps encrypted
  • DPI Throughput: TCP 1823 Mbps, UDP 1272 Mbps
  • IPS Throughput: TCP 208 Mbps, UDP 161 Mbps
  • SSL VPN Throughput: 132.24 Mbps
Basic Functions
  • LAN DNS: Supported
  • WAN Types: IPv4 static and dynamic IP, PPPoE, L2TP, PPTP, IPv6 PPP, DHCPv6, static IP, 6in4 and pass through
  • Mobile Broadband Backup: 4G or 3G modem via USB
  • MAC Clone: WAN and LAN MAC modification
  • DHCP: Server, DHCPv6 PD server, options customisation, address reservation, multi IP and multi net
  • Stateful ACL: Supported
  • QoS: Supported
  • Bridge VLAN: Supported
  • mDNS Repeater: Supported
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
Advanced Features
  • Routing: Static routing, policy routing, RIP and OSPF in standalone mode
  • Bandwidth Control: IP and port based bandwidth control with guaranteed and limited bandwidth
  • Load Balance: Intelligent load balancing, application routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, port forwarding, port triggering, DMZ, ALG and UPnP
  • Session Limit: IP based session limit
  • SD WAN: Supported in controller mode
VPN
  • SSL VPN: Server with up to 60 tunnels
  • IPsec VPN: Up to 100 tunnels with LAN to LAN and client to LAN support
  • PPTP VPN: Server and client support with up to 60 tunnels
  • L2TP VPN: Server and client support with up to 60 tunnels
  • OpenVPN: Server and client support with up to 66 tunnels
  • WireGuard VPN: Up to 20 tunnels
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada Cloud, Hardware and Software Controller support
  • Zero Touch Provisioning via Omada Cloud Controller
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and NTP synchronisation
  • Automatic discovery, batch configuration, firmware upgrade, monitoring and alerts
Others
  • Certifications: CE, FCC, RoHS
  • Package contents: ER707 M2 gateway, power adapter, rack mount kit and installation guide
  • System compatibility: Windows, macOS, NetWare, UNIX and Linux
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada Multi-Gigabit VPN Gateway

  • Brand: TP-Link
  • Product Code: ER707-M2
  • Availability:  In Stock
