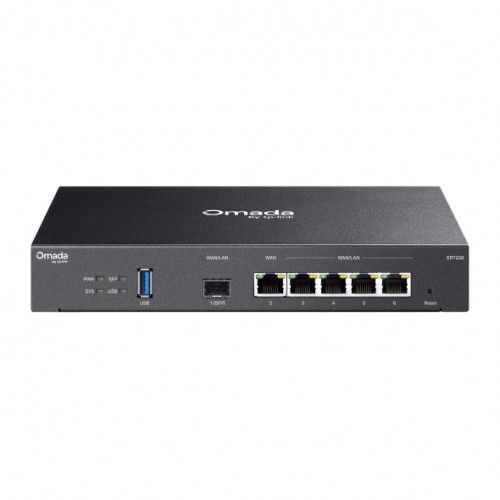

Omada Gigabit VPN Gateway

The Omada ER7206 is a professional Gigabit VPN router designed for small to medium business networks that need reliable performance, strong security, and centralised management. Built to handle multiple WAN connections and secure remote access, it is well suited for offices, branch networks, and multi‑site environments.

Equipped with multiple Gigabit Ethernet ports, the ER7206 delivers stable routing performance for everyday business traffic while supporting advanced features such as load balancing and comprehensive VPN options for site‑to‑site and remote user connectivity. These capabilities help ensure consistent uptime and secure data transfer across connected locations.

Fully integrated with the Omada SDN platform, the ER7206 supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features including firewall policies, access control, and traffic filtering help protect network infrastructure, making the ER7206 a dependable gateway solution for organisations that need secure connectivity with simplified network management.


Features

  • 1× Gigabit SFP WAN/LAN port
  • 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
  • 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 5 WAN ports raises the utilisation rate of multi-line broadband
  • High-security SSL / IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralised cloud management via the web or the Omada app
  • DoS/DDoS Protection, IP/MAC/Location/URL filtering, DPI, and IPS/IDS for enhanced security
  • Desktop/Wall/Rack-mount


Kit Contents

  • ER7206
  • Power Adapter
  • Installation Guide
  • Rack-mount Kit

Manuals & Datasheet


Technical


CategorySpecification
Security
  • DPI: Deep packet inspection supporting up to 2421 application types with throughput up to 942.7 Mbps upload and 937.3 Mbps download
  • IDS and IPS: Signature based intrusion detection and prevention
  • Access Control: Source and destination IP based ACL, stateful ACL, IPv4 and IPv6 ACL, national based ACL and FQDN filtering
  • DNS Proxy: DNSSEC, DoH, DoT and DNS override
  • Filtering: Web group filtering, URL category and URL filtering and web security
  • ARP Inspection: GARP packet sending, ARP scanning, IP MAC binding and ARP detection
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking and WAN ping blocking
Hardware Features
  • Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE and SNMP
  • Interfaces: 1 × Gigabit SFP WAN or LAN port, 1 × Gigabit WAN port, 4 × Gigabit LAN or WAN ports, 1 × USB 3.0 port supporting LTE dongle and USB storage
  • Network Media: UTP and STP cabling for 10BASE T, 100BASE TX and 1000BASE T up to 100 m
  • Fan Quantity: Fanless
  • Buttons: Reset button
  • Power Supply: 12 V DC / 1 A power adapter
  • Flash: 128 MB NAND
  • DRAM: 512 MB DDR4
  • LED Indicators: Power, system, SFP, USB, WAN and LAN status
  • Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Desktop, wall mount or rack mountable
  • Max Power Consumption: 7.5 W with USB connected, 4.5 W without USB
Performance
  • Concurrent Sessions: 150,000
  • New Sessions per Second: 4,600
  • NAT Throughput: Up to 946 Mbps depending on connection type
  • IPsec VPN Throughput: Up to 885.3 Mbps depending on encryption
  • GRE Throughput: 1094.2 Mbps unencrypted, 702.2 Mbps encrypted
  • WireGuard VPN Throughput: 341.3 Mbps
  • OpenVPN Throughput: 139.1 Mbps
  • L2TP VPN Throughput: 1422.4 Mbps unencrypted, 686.2 Mbps encrypted
  • PPTP VPN Throughput: 1356.1 Mbps unencrypted, 205.1 Mbps encrypted
  • DPI Throughput: TCP 933 Mbps, UDP 927 Mbps
  • IPS Throughput: TCP 918 Mbps, UDP 920 Mbps
  • SSL VPN Throughput: 131.6 Mbps
Basic Functions
  • LAN DNS: Supported
  • WAN Types: Static IP, dynamic IP, PPPoE with MRU support, PPTP and L2TP
  • MAC Clone: WAN and LAN MAC address modification
  • DHCP: Server, DHCPv6 PD server, option customisation, address reservation, multi IP, multi net and WAN DHCP option 60
  • Stateful ACL: Supported
  • QoS: Supported
  • Bridge VLAN: Supported
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and pass through
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
Advanced Features
  • Access Control: IP, port, protocol and domain name filtering
  • Routing: Static routing, policy routing, RIP and OSPF
  • Bandwidth Control: IP based bandwidth control
  • Load Balance: Intelligent load balancing, application routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, port forwarding, port triggering, DMZ, ALG, UPnP and NAT disable
  • Session Limit: IP based session limiting
  • SD WAN: Supported in controller mode
VPN
  • SSL VPN: Up to 50 tunnels
  • IPsec VPN: Up to 100 tunnels with LAN to LAN and client to LAN support
  • PPTP VPN: Server and client support with up to 50 tunnels
  • L2TP VPN: Server and client support with up to 50 tunnels
  • OpenVPN: Server and client support with up to 55 tunnels
  • WireGuard VPN: Supported
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada Central cloud, hardware and software controller support
  • Zero touch provisioning supported
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and scheduled reboots
  • Automatic discovery, unified configuration, monitoring and alerts
Others
  • Certifications: CE, FCC, RoHS
  • Package contents: ER7206 gateway, power adapter, rack mount kit and installation guide
  • System compatibility: Windows, macOS, NetWare, UNIX and Linux
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing
