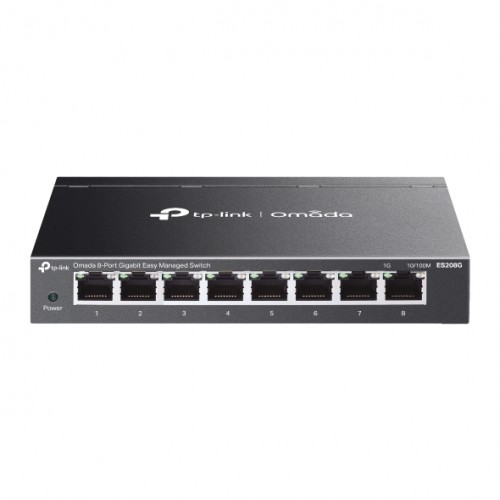

The Omada ES208G is an 8‑port gigabit easy‑managed switch designed for small business networks that require simple setup, silent operation, and cloud‑based centralised management. It features eight 10/100/1000 Mbps RJ45 ports with auto‑negotiation and Auto MDI/MDIX, allowing easy connection of PCs, access points, cameras, and other network devices without the need for crossover cables. The switch has a durable metal casing, compact size, and supports both desktop and wall mounting for flexible installation in offices, shops, or small server rooms. Its fanless design ensures quiet operation, while built‑in surge protection up to 6 kV helps protect against electrical spikes.
Features
- 8× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Kit Contents
- ES208G
- Power Adapter
- Rubber Feet
- Installation Guide
Manuals & Datasheet
Technical
| Hardware features | |
|---|---|
| Interface | 8 × 10/100/1000 Mbps RJ45 ports Auto‑negotiation / Auto MDI / MDIX |
| Fan quantity | Fanless |
| Installation | Desktop Wall mount |
| Physical security lock | Yes |
| Power supply | AC/DC adapter (input: 100–240 V AC; output: 5 V DC / 0.6 A) |
| Dimensions (W × D × H) | 158 × 101 × 25 mm / 6.2 × 4.0 × 1.0 in |
| Surge protection | ±6 kV |
| Performance | |
| Switching capacity | 16 Gbps |
| Packet forwarding rate | 11.9 Mpps |
| MAC address table | 8K |
| Packet buffer memory | 4 Mbit |
| Jumbo frame | 15 KB |
| Transmission method | Store and forward |
| Software features | |
| Quality of service | Port‑based / 802.1p / DSCP QoS 8 priority queues WRR (weighted round robin) Queue weight configuration Bandwidth control (port‑based rate limit) Storm control (broadcast, multicast, unknown‑unicast) |
| L2 features | Static link aggregation Loop prevention / loopback detection 802.3x flow control Port mirroring (one‑to‑one, many‑to‑one, ingress / egress / both) Port statistics 802.1ab LLDP |
| L2 multicast | IGMP snooping v1 / v2 / v3 Fast leave |
| VLAN | MTU VLAN Port‑based VLAN 802.1Q tag VLAN Max 32 VLAN groups, 4K VID |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Cloud access | Yes (requires Omada controller) |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI DHCP client Cable diagnostics Automatic device discovery Batch configuration Batch firmware upgrading Unified configuration |
| Others | |
| Certification | FCC, CE, RoHS |
| Package contents | ES208G Power adapter Rubber feet Installation guide |
| Environment | Operating temperature: -5°C to 45°C / 23°F to 113°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% non‑condensing Storage humidity: 5% to 90% non‑condensing |
