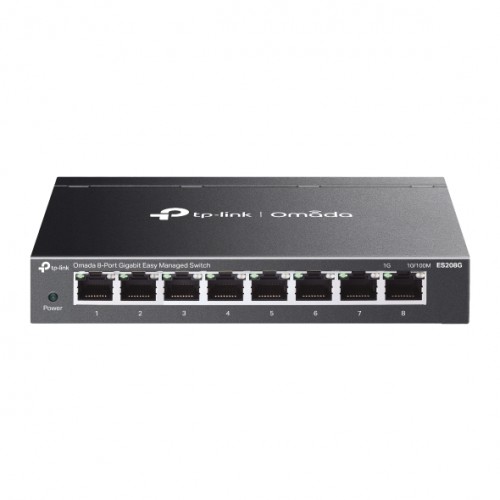

Omada 8-Port Gigabit Easy Managed Switch

The Omada ES208G is a compact Easy Smart Gigabit switch designed for small offices and everyday business networks that need reliable wired connectivity with simple management. With 8 Gigabit Ethernet ports, it delivers fast, stable connections for PCs, printers, access points, and other network devices in space‑constrained environments.

Designed for straightforward deployment, the ES208G includes essential smart switching features such as VLANs, QoS, loop prevention, and IGMP snooping, helping to optimise traffic flow and maintain stable network performance without the complexity of fully managed switches. Configuration and monitoring are handled through an intuitive web‑based interface, making setup quick and accessible.

As part of the Omada ecosystem, the ES208G provides consistent visibility and simplified operation across Omada‑based networks. Its fanless metal housing ensures silent, dependable performance, making it ideal for small offices, retail counters, classrooms, and basic network expansions where simplicity and reliability are key.


Features

  • 8× 10/100/1000Mbps RJ45 ports
  • Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fan-less design for silent operation
  • Durable metal casing and desktop/wall mounting design


Kit Contents

  • ES208G Switch
  • Power Adapter
  • Rubber Feet
  • Installation Guide

Manuals & Datasheet


Technical


CategorySpecification
Hardware Features
  • Interfaces: 8 × 10/100/1000 Mbps RJ45 ports with auto negotiation and auto MDI and MDIX
  • Fan Quantity: Fanless
  • Installation: Desktop or wall mount
  • Physical Security Lock: Yes
  • Power Supply: DC power adapter, output 5 V DC / 0.6 A
  • Dimensions (W × D × H): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
  • Surge Protection: ±6 kV
Performance
  • Switching Capacity: 16 Gbps
  • Packet Forwarding Rate: 11.9 Mpps
  • MAC Address Table: 8 K
  • Packet Buffer Memory: 4 Mbit
  • Jumbo Frame: 15 KB
Quality of Service
  • Port based, 802.1p and DSCP QoS
  • 8 priority queues
  • Scheduling mode: WRR
  • Queue weight configuration
  • Port based bandwidth control
  • Storm control with kbps and pps modes for broadcast, multicast and unknown unicast traffic
L2 Features
  • Static link aggregation
  • Loop prevention and loopback detection
  • 802.3x flow control
  • Port mirroring with one to one and many to one modes and ingress, egress or both directions
  • Port statistics including traffic and mirror status
  • LLDP support
L2 Multicast
  • IGMP snooping
  • IGMP v1, v2 and v3 snooping
  • Fast leave support
VLAN
  • MTU VLAN
  • Port based VLAN
  • 802.1Q tagged VLAN
  • Up to 32 VLAN groups with 4K VLAN IDs
Transmission MethodStore and forward
Management
  • Omada Cloud, Hardware and Software Controller support
  • Zero Touch Provisioning via Omada Cloud Controller
  • Web based GUI
  • DHCP client
  • Cable diagnostics
  • Automatic device discovery, batch configuration and batch firmware upgrade
  • Unified configuration
Others
  • Certifications: FCC, CE, RoHS
  • Package contents: ES208G switch, power adapter, rubber feet and installation guide
  • Operating temperature: -5 to 45 °C
  • Storage temperature: -40 to 70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada 8-Port Gigabit Easy Managed Switch

  • Brand: TP-Link
  • Product Code: ES208G
  • Availability:  In Stock
