The Omada SG2210XMP‑M2 is a compact L2+ smart managed multi‑gigabit PoE+ switch designed for modern enterprise access networks that demand higher bandwidth and simplified power delivery. It features 8 × 2.5GBASE‑T RJ45 PoE+ ports and 2 × 10 Gbps SFP+ uplink slots, enabling full throughput for Wi‑Fi 6, Wi‑Fi 6E and Wi‑Fi 7 access points while providing high‑speed fibre connectivity to aggregation or core layers. With a total PoE power budget of up to 160 W, each PoE+ port can supply up to 30 W, allowing the switch to power access points, IP cameras and VoIP devices over a single Ethernet cable. The SG2210XMP‑M2 supports advanced Layer 2+ features, including static routing, VLANs, enterprise‑grade QoS, IGMP snooping and comprehensive security features such as ACLs, DHCP snooping, IP‑MAC‑Port binding and 802.1X authentication to ensure secure and efficient network traffic handling. Fully integrated with Omada SDN, it supports centralised cloud management via the Omada Controller, web interface or mobile app, while also offering full standalone management, all within a fan-less, desktop‑ or wall‑mountable design suited to noise‑sensitive environments.
Features
- 8× 2.5 Gbps 802.3at/af-compliant PoE+ ports
- 2× 10G SFP+ Slots
- 160 W total PoE budget with up to 30 W PoE output per port
- Centralised cloud management via web or the Omada app
- Supports standalone management
- Static Routing
- Fan-less design for quiet operation
- Desktop/Wall-Mounting
Kit Contents
- SG2210XHP-M2 Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Technical
| Category | Specification |
|---|
| Hardware Features | - Interfaces: 8 × 100/1000/2500 Mbps RJ45 PoE+ ports, 2 × 10G SFP+ slots
- Fan Quantity: Fanless
- Physical Security Lock: Yes
- Power Supply: AC/DC Adapter (Input: 100–240V AC; Output: 53.5V DC / 3.37A)
- PoE: 802.3at/af compliant, 8 PoE+ ports, 160 W power budget
- Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
- Mounting: Desktop / Wall-Mounting
- Max Power Consumption: 180.1 W (110V / 60Hz, with 160 W PD connected)
- Max Heat Dissipation: 614.58 BTU/hr (110V / 60Hz, with 160 W PD connected)
|
| Performance | - Packet Buffer Memory: 12 Mbit
- Jumbo Frame: 9 KB
- Switching Capacity: 80 Gbps
- Packet Forwarding Rate: 59.52 Mpps
- MAC Address Table: 16 K
|
| Quality of Service | - 802.1p CoS and DSCP priority
- 8 priority queues
- Scheduling modes: SP, WRR
- Queue weight configuration
- Bandwidth control (port and flow based)
- Storm control with kbps and ratio modes
|
| L2 and L2+ Features | - 32 IPv4 and IPv6 interfaces
- 32 static IPv4 and IPv6 routes
- DHCP server, interface relay, VLAN relay and L2 relay
- Static, proxy and gratuitous ARP
- Link aggregation
- Spanning Tree Protocol
- Loopback detection
- 802.3x flow control
- Port mirroring
- DLDP
- LLDP and LLDP-MED
|
| L2 Multicast | - 511 IPv4 and IPv6 multicast groups
- IGMP snooping
- Multicast VLAN Registration
- Multicast filtering
- Limited IP multicast
|
| VLAN | - Up to 4K VLAN groups
- 802.1Q tagged VLAN
- MAC VLAN: 12 entries
- Protocol VLAN
- GVRP
- Voice VLAN
|
| Access Control List | - Up to 230 ACL entries
- Time-based, MAC, IP and IPv6 ACL
- Permit and deny rules
- Mirroring, redirect, rate limit and QoS remark actions
- Port and VLAN binding
|
| Security | - IP-MAC-Port binding
- AAA and 802.1X authentication
- RADIUS support
- DHCP snooping and ARP inspection
- IP and IPv6 source guard
- DoS defence
- Port security up to 64 MAC addresses per port
- HTTPS and SSH secure management
|
| IPv6 | - IPv6 static routing and ACL
- Dual IPv4 and IPv6 stack
- MLD snooping
- Neighbor discovery and MTU discovery
- IPv6 DHCP, SNMP, SSH, SSL and web access
|
| MIBs | - MIB II, Interface, Ethernet and Bridge MIB
- P and Q Bridge MIB
- RMON and RMON2
- RADIUS authentication and accounting MIB
- Remote ping and traceroute MIB
- TP-Link private MIB
|
| Management | - Omada Cloud, Hardware and Software Controllers
- Zero-Touch Provisioning
- Web GUI and CLI management
- SNMP v1, v2c and v3
- System log, SNTP, cable diagnostics and CPU monitoring
|
| Others | - Certifications: CE, FCC, RoHS
- Package contents: Switch, power adapter, quick installation guide, rubber feet
- System compatibility: Windows, macOS, NetWare, UNIX, Linux
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10–90% RH
- Storage humidity: 5–90% RH
|

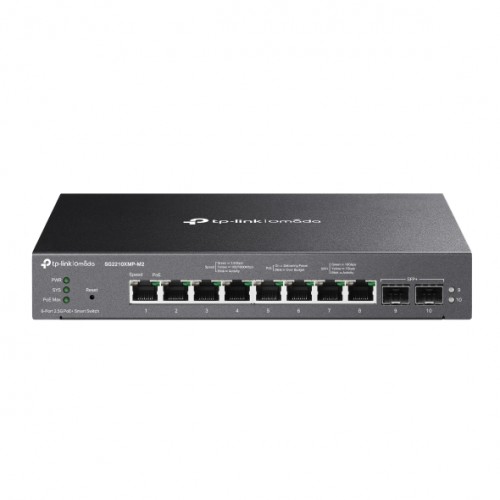

1.0_Omada_2.5G_Switch-01_normal_20231109030148w-500x500.jpg "Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+")

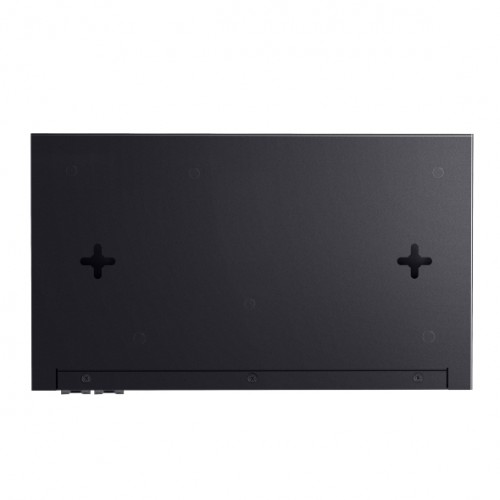

1.0_Omada_2.5G_Switch-05_normal_20231109030410o-500x500.jpg "Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+")

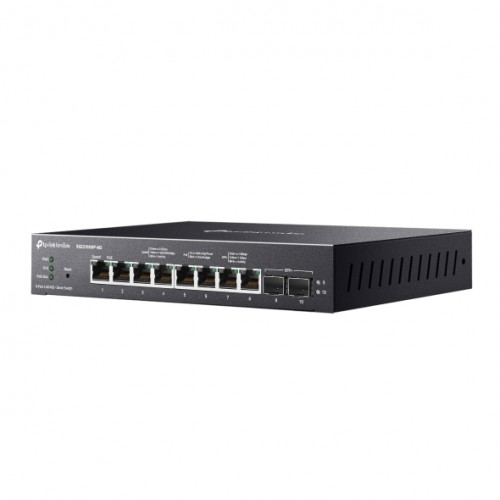

1.0_Omada_2.5G_Switch-04_normal_20231109030323c-500x500.jpg "Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+")

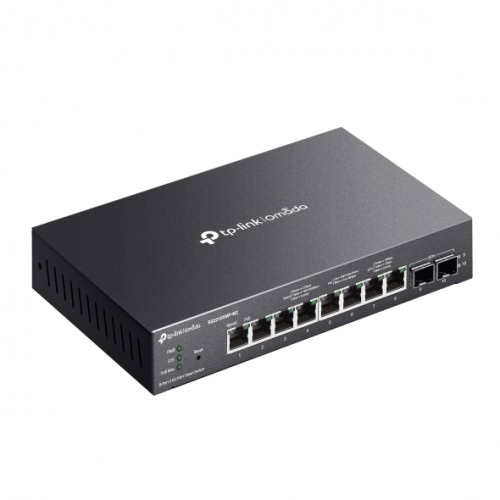

1.0_Omada_2.5G_Switch-03_normal_20231109030339q-500x500.jpg "Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+")

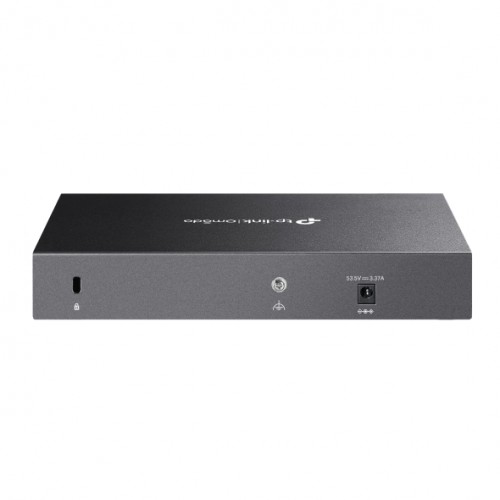

1.0_Omada_2.5G_Switch-02_normal_20231109030354j-500x500.jpg "Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+")
