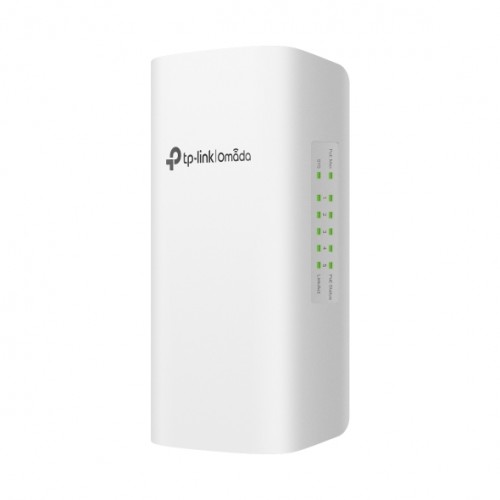

The TP-Link Omada SG2005P-PD is a compact outdoor-ready 5-port Gigabit smart switch designed to simplify network deployments. It features one PoE++ input port and four PoE+ output ports, allowing it to power devices such as outdoor access points and surveillance cameras without requiring a local power source. The switch supports PoE passthrough, extending power and data transmission distances up to 200 metres, which is ideal for long-range installations.

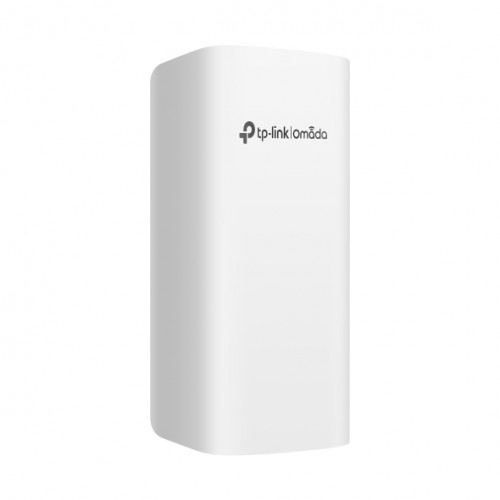

Its weather-resistant housing provides protection against dust, water, UV exposure and lightning, ensuring reliable performance in harsh environments. The device integrates with the Omada SDN platform, offering centralised cloud management, remote monitoring and multi-site administration. Advanced features such as VLAN, QoS, ACL and static routing provide flexible control, while the fanless design and simple wall or pole mounting make it suitable for a wide range of outdoor network setups.
Features
- Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.
- Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.
- IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.

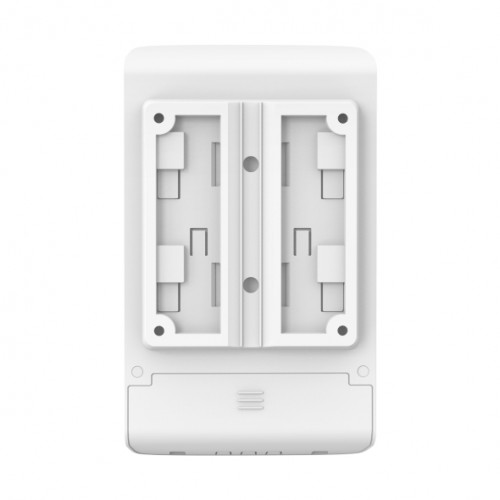

- Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
- Integrates into Omada SDN for cloud access, remote management, and multi-site management.
- Static Routing, Access Control List (ACL), QoS, and VLAN.
Kit Contents
- 1x SG2005P-PD
- 2x Mounting Kits
- 1x Installation Guide
Technical
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x |
|---|---|

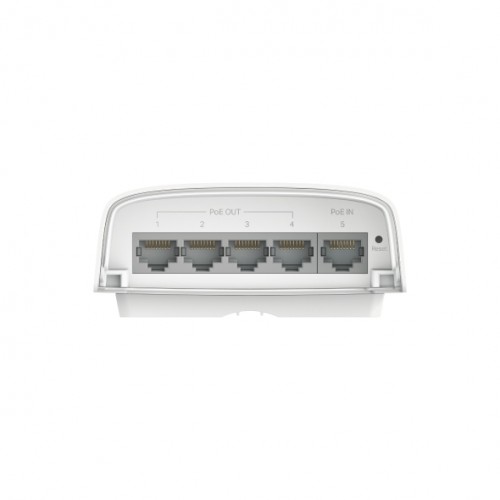

| Interface | 1× 10/100/1000 Mbps RJ45 PoE In Port (802.3af/at/bt) 4× 10/100/1000 Mbps RJ45 PoE Out Ports (802.3af/at) |
| Network Media | 10BASE‑T: UTP Cat 3/4/5 (100 m max) 100BASE‑TX / 1000BASE‑T: UTP Cat 5/5e+ (100 m max) |
| Fan Quantity | Fanless |
| Power Supply | Powered via 802.3af/at/bt PoE Source |
| PoE Ports | PoE In: Port 5 (802.3af/at/bt) PoE Out: Ports 1–4 (802.3af/at) PoE Budget: - 64 W (802.3bt Type 4 90 W input) - 44 W (802.3bt Type 3 60 W input) - 19 W (802.3at) - 6 W (802.3af) |
| Dimensions | 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) |
| Max. Power Consumption | 71.5 W (with 802.3bt Type 4 input) |
| Max. Heat Dissipation | 243.99 BTU/hr (with 802.3bt Type 4 input) |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service | 802.1p CoS/DSCP priority 8 queues SP / WRR scheduling Queue weight config Bandwidth control Storm control |
| L2 & L2+ Features | 32 IP interfaces, IPv4/IPv6 Static routing (32 routes) DHCP server/relay Static ARP, Proxy ARP, Gratuitous ARP Link aggregation (8 groups, 8 ports each) STP/RSTP/MSTP Loopback detection Flow control Port/CPU mirroring LLDP / LLDP‑MED |
| L2 Multicast | 511 IPv4/IPv6 groups IGMP Snooping v1/v2/v3 MVR MLD Snooping v1/v2 Limited IP multicast support |
| Advanced Features | Automatic device discovery Batch config & updates Network monitoring Event warnings Unified configuration Reboot scheduling |
| VLAN | Up to 4K VLANs 802.1Q tag VLAN MAC VLAN (12 entries) Protocol VLAN GVRP Voice VLAN |
| Access Control List | Up to 230 entries Time‑based rules MAC, IP, IPv6 ACLs Permit/deny rules Actions: mirror, redirect, rate limit, QoS remark Port and VLAN binding |
| Security | AAA 802.1X (port/MAC-based) IP/IPv6‑MAC binding (512 entries) DHCP Snooping, ARP Inspection, ND Detection IP/IPv6 Source Guard DoS defence Port security (64 MACs/port) Storm control Port isolation HTTPS (SSLv3/TLS1.2), SSHv1/v2 IP/Port/MAC-based access control |
| IPv6 | Dual stack IPv4/IPv6 MLD Snooping ND, MTU discovery ICMPv6, TCPv6/UDPv6 IPv6 apps: DHCPv6, Ping6, Tracert6, Telnet6, SNMPv6, SSHv6, SSL, HTTP/HTTPS, TFTP |
| MIBs | MIB II, Bridge MIB, P/Q‑Bridge MIB, Radius Accounting/Authentication MIBs, Remote Ping/Traceroute MIB, TP‑Link private MIBs, RMON (1/2/3/9) |
| Omada App | Yes (Cloud, Hardware, or Software Controller) |
| Centralised Management | Omada Cloud/Hardware/Software Controller |
| Cloud Access | Yes (via Omada Controllers) |
| Zero‑Touch Provisioning | Yes (Omada Cloud Controller required) |
| Management Features | Web GUI CLI via telnet SNMP v1/v2c/v3 RMON (1/2/3/9) SDM Template DHCP/BOOTP client Dual image/config CPU monitoring Cable diagnostics EEE SNTP System log |
| Certification | CE, FCC, RoHS |
| Package Contents | SG2005P‑PD, mounting kits, installation guide |
| System Requirements | Windows 98SE–11, macOS, NetWare, UNIX, Linux |
| Environment | Operating: -40 to 60 °C Storage: -40 to 70 °C Humidity (operating): 10–90% non‑condensing Humidity (storage): 5–90% non‑condensing |
