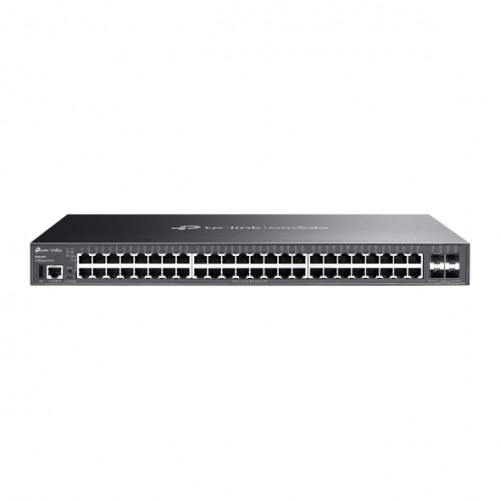

The Omada SG5452X is a dependable entry‑level L3 managed switch designed for the access layer. It delivers advanced L3 routing, high‑speed 10 Gbps connectivity, and support for physical stacking. The switch offers 48 Gigabit RJ45 ports, four 10 Gbps SFP+ uplinks, and centralised management through the Omada platform.
With robust security and comprehensive management features, the SG5452X provides a reliable and scalable networking solution for SMEs and ISPs.
Features
- 48× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 176 Gbps switching capacity per unit
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralised cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Kit Contents
- SG5452X Switch
- Power Cord
- Console Cable
- Rackmount Kits
- Rubber Feet
- Installation Guide
Technical
| Hardware features | |
|---|---|
| Interface | 48 × 10/100/1000 Mbps RJ45 ports 4 × 1/10 Gbps SFP+ slots 1 × USB 2.0 port 1 × RJ45 console port 1 × USB Type‑C console port |
| Fan quantity | Fanless |
| Power supply | 100–240 V~, 50/60 Hz |
| Dimensions (W × D × H) | 440 × 220 × 44 mm / 17.3 × 8.7 × 1.7 in |
| Mounting | Rack mountable |
| Max power consumption | 34.1 W (220 V / 50 Hz at 25°C) 34.3 W (110 V / 60 Hz at 25°C) |
| Max heat dissipation | 116.42 BTU/hr (220 V / 50 Hz at 25°C) 117.10 BTU/hr (110 V / 60 Hz at 25°C) |
| Performance | |
| Switching capacity | 176 Gbps per unit |
| Stacking | Stacking number: 4 Stacking ports: 10G SFP+ (uplink ports can be used) Stack bandwidth: up to 40 Gbps (maximum 2 stacking ports) |
| Packet forwarding rate | 130.94 Mpps |
| MAC address table | 16 K |
| Packet buffer memory | 12 Mbit |
| Jumbo frame | 9 KB |
| Software features | |
| Quality of service | Class of service with 8 priority queues Port priority, IEEE 802.1p priority, DSCP priority Minimum bandwidth per queue Scheduling modes: SP, WRR, SP + WRR Rate limiting and storm control Voice VLAN and QoS remarking |
| L3 features | IP interfaces: IPv4 (128), IPv6 (128) Static routing: IPv4 (512), IPv6 (128) RIP v1/v2, OSPF v2/v3 Static ARP (512), dynamic ARP (2000) DHCP server and relay |
| L2 and L2+ features | Link aggregation Spanning tree protocol Port‑based and VLAN‑based loopback detection 802.3x flow control ERPS, RSPAN IGMP and MLD snooping Multicast VLAN registration |
| VLAN | 802.1Q VLAN (up to 4K VLAN groups) MAC VLAN, multicast VLAN, management VLAN QinQ, GVRP, protocol VLAN Voice VLAN, private VLAN |
| Security | Port isolation and CPU protection ARP inspection and DHCP snooping IPv4 and IPv6 source guard 802.1X authentication (port and MAC based) RADIUS and TACACS+ HTTPS (TLS 1.2) and SSHv2 IP, port and MAC based access control |
| Management features | |
| Omada app | Yes (requires Omada controller) |
| Centralised management | Omada cloud‑based controller Omada hardware controller Omada software controller |
| Zero‑touch provisioning | Yes (via Omada cloud‑based controller) |
| Management tools | Web‑based GUI CLI (console and telnet) SNMP v1 / v2c / v3, RMON LLDP / LLDP‑MED Dual image and dual configuration Cable diagnostics, system logs, SNTP, IEEE 802.3az EEE |
| Others | |
| Package contents | SG5452X switch Power cord Console cable Rackmount kits Rubber feet Quick installation guide |
| System requirements | Windows, macOS, NetWare, UNIX or Linux |
| Environment | Operating temperature: -5°C to 45°C / 23°F to 113°F Storage temperature: -40°C to 70°C / -40°F to 158°F Operating humidity: 10% to 90% RH (non‑condensing) Storage humidity: 5% to 90% RH (non‑condensing) |
